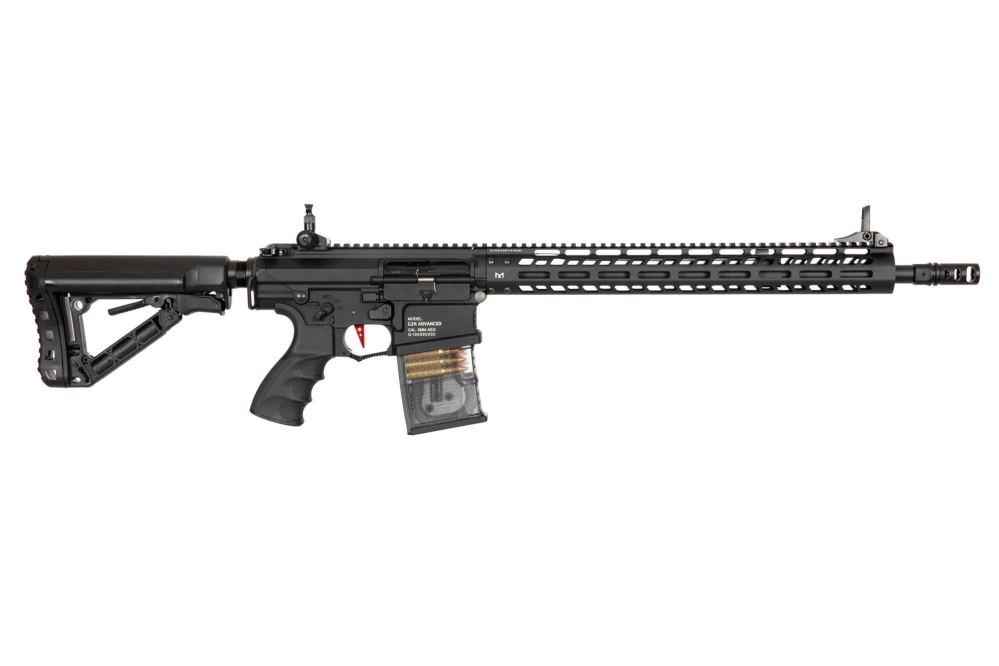

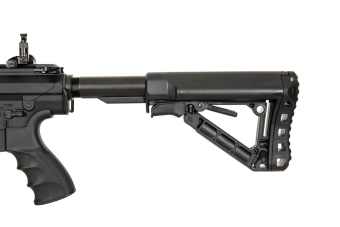

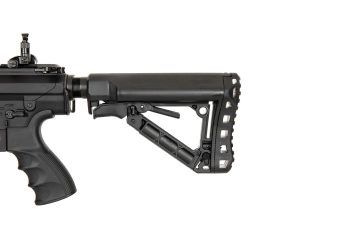

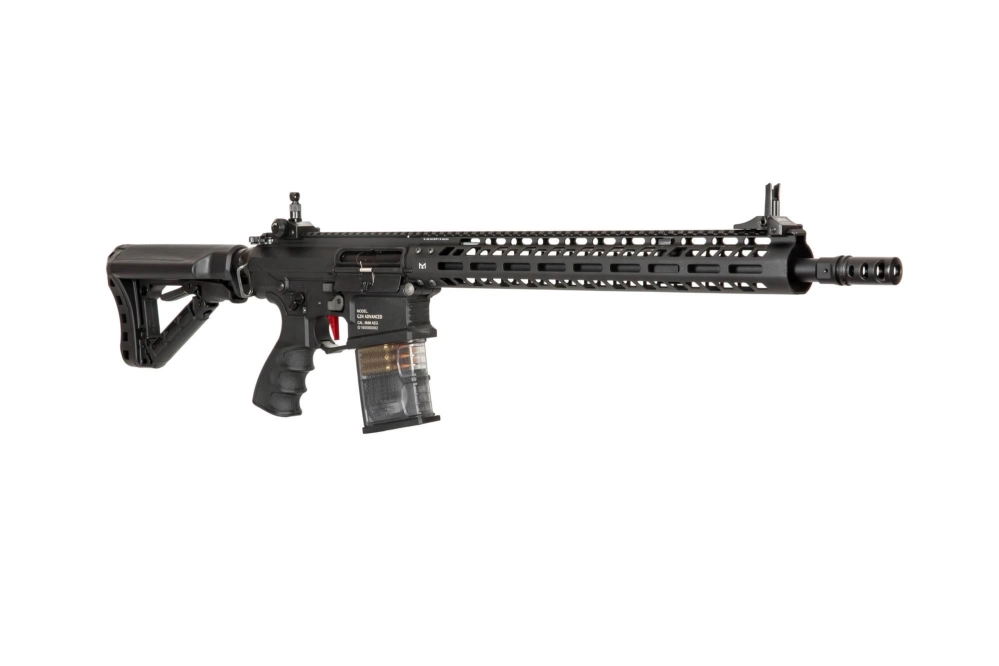

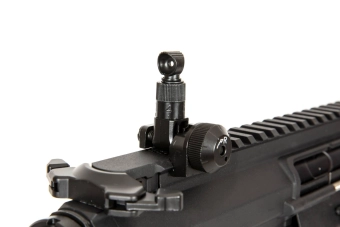

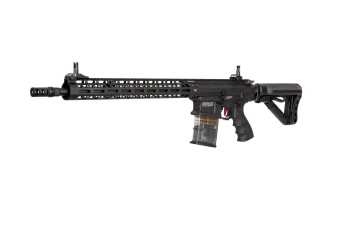

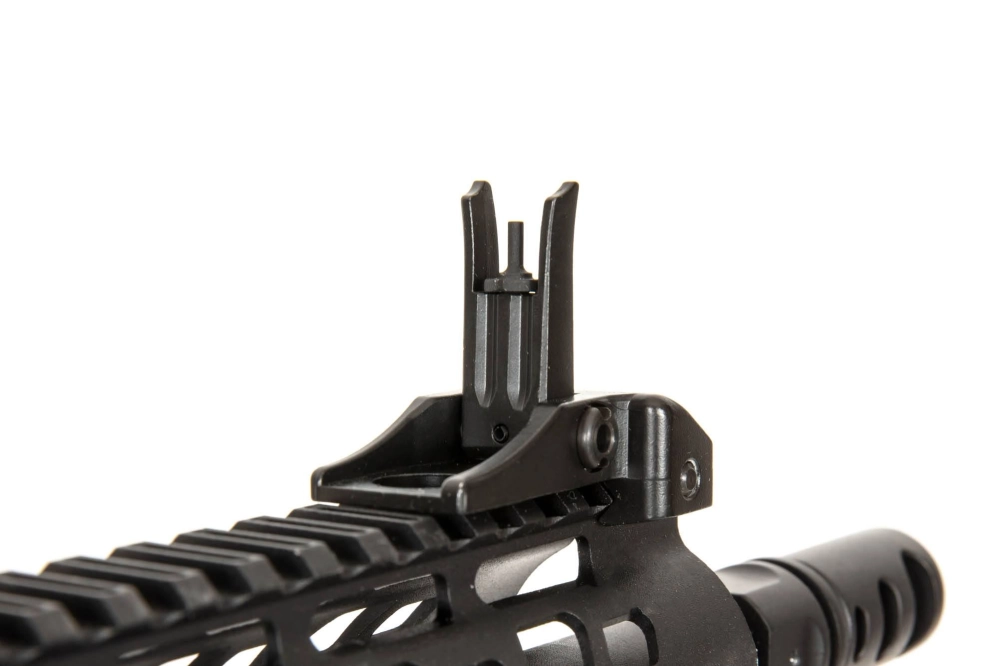

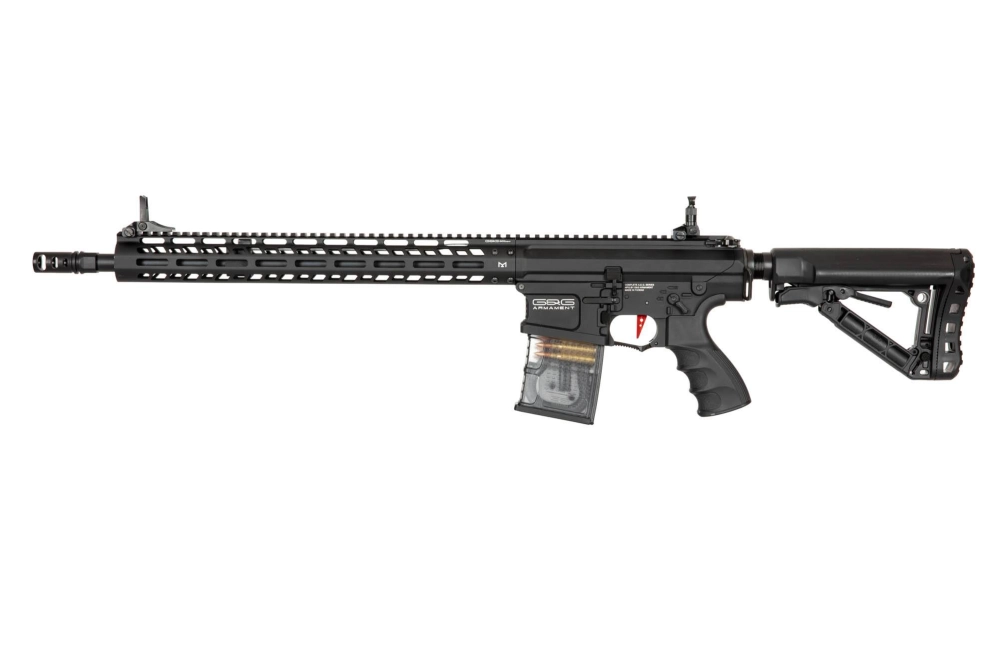

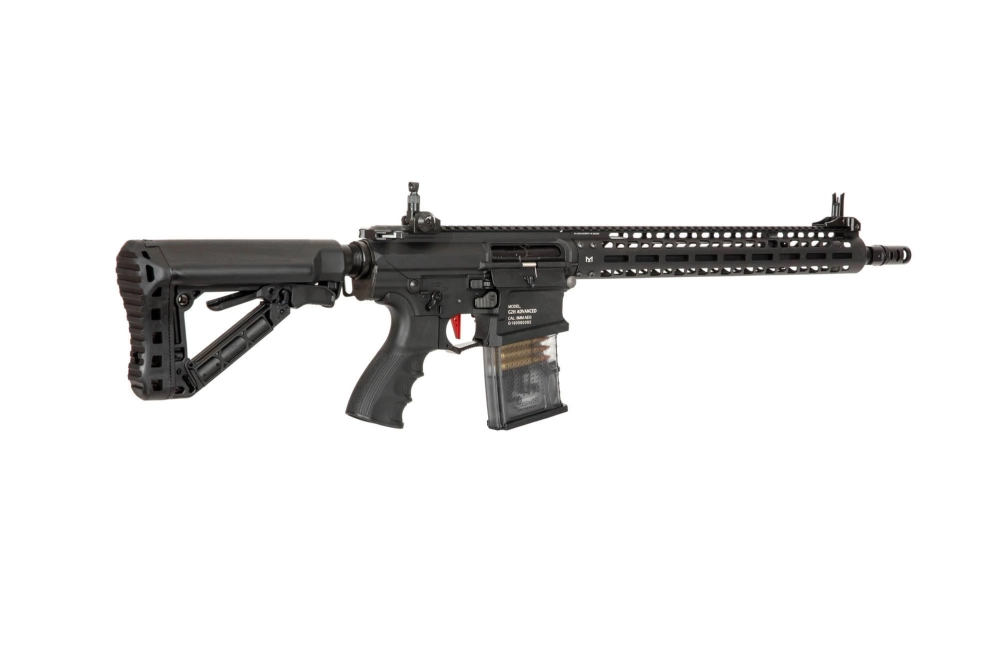

MBR308 DMR Rifle Replica
- Material: Metal + polymer Length: 930 - 1030 mm Weight: 3190 g Color: Black Muzzle Velocity: ~500 FPS Engine: Electric Manufacturer: Umbrella Armory / G&G Armament
The product does not constitute ballistic protection and has no other protective properties. It is not intended for use in protective purposes, including during tactical/war/ASG games.
The use of the product for ballistic protection and/or for other protective purposes, including the use during tactical/war/ASG games, is the use of the product contrary to its intended use, in which case the buyer does so solely at his own risk.
The vendor is not liable for damage to the product, that might result from the use of the product contrary to its intended purpose, this also applies to all possible health consequences (bodily harm) for the user (buyer) or damage to property. Moreover, a misuse of the product will void the warranty on the product.
The vendor is liable to the buyer under the warranty for product defects (in the event of such defects) only if the buyer/user uses the product for its intended purpose, i.e. for purposes other than protective purposes, including the use during tactical/war/ASG games.
The lack of any protective properties of the product is a feature, not a product defect, and therefore it does not constitute a physical defect of the product within the meaning of the Polish Civil Code.
MBR308 DMR Rifle Replica
Do you want a modified replica but tuning is a dark art for you? Umbrella Armory has you covered! Replicas sold by this brand are upgraded models of carbines from known manufacturers such as G&G or Krytac. Internal elements of stock replicas are replaced with high quality, appropriately-selected parts by known brands. Thanks to this, you get a perfected, ideally put together and tested inside and out replica ready for action straight out of the box.
MBR308 is a highest-quality and class replica made by a known and renowned G&G company. Due to the materials used and technologies implemented, the replica is intended for most demanding Users that value realism and quality.
List of parts installed in Umbrella Armory workshop:
Gearbox: reinforced gearbox G2
Gear Set: 20:1 SiegeTek SSG
Motor: G&G Ifirit 25,000 RPM Motor (Long Type)
MOSFET: G2 Trigger ETU 2.0 + Perun ETU ++
Bearings: Umbrella Armory 8 mm Steel Ball
Main Spring: ASG (M135)
Piston Head: Lonex POM AOEd
Piston: Rocket, 15 steel teeth
Trigger: modified, red G&G
Tappet Plate: modified TO 8.96 mm
Tappet Spring: G&G Tappet Spring
Cylinder: 1/1
Cylinder Head: modified Modify with a double O-ring
Nozzle: VFC POM with O-ring
Hop-Up Chamber: G&G Rotary + Umbrella Armory 3D R-Hop arm
Hop-Up bucking: green G&G
Internal Barrel: steel Umbrella R-Hop Prometheus Tight Bore 6.03 mm (460 mm)
The set includes:
- replica
- G&G G2 magazine
= 11.1 battery (1300 mAh)
- Perun ETU++ diagnostics card
- User’s manual
- Umbrella Armory certificate
NiCd
rechargeable battery is characterized by high efficiency
current-carrying capacity, but there are disruptive effect on memory.
Should be unloaded and loaded in the full cycle, ie, it is recommended
to fully discharge, and after unloading must charge the battery
immediately without leaving it for a long time in a discharged state.
NiMH batteries have a higher self-discharge over time and shorten the
life - on the other hand, they earn about 30% more capacity.
Blow back is a simulation system of the cocking lever - it imitates the work of it as the equivalent sharp. This system raises the realism and adds a lot more experience during shooting.
It is the spped of bb, while its leaving the innerbarrel of replica. This speed is measured in FPS (Feet Per Second).
1 FPS = 0,3 m/s
1 J = 99 m/s
1 J = 326,7 FPS
Indications v2, v3, v6 does not mean the level of advance, but only shape of gearbox skeleton which was used and selected by the manufacturer depending on the capabilities of the body of the replica. For example, a models of the M4/M16 family, MP5, have a v2 gearbox, while the AK family have gearbox v3.
Hop-Up system is used for overclocking bb during the shot (putting it in rotation), through which, it extends its flight path. Acting laws of physics make that bb lift up, while the gravitational force take it down. Appropriate adjustment of Hop-Up, will compensate for these two factors, which result in long and straight flight for longer distance and be greater focus shot (to improve accuracy).
