Alpha V3 Microprocessor Charger
- Alpha V3 Redox Charger Charger Measurements: 134 x 86 x 26 mm Compatible Batteries: NiCd/NiMH, LiPo, LiFe, LiIon, Pb Weight of the Charger (w/o cables): 220 g Manufacturer: Redox
The product does not constitute ballistic protection and has no other protective properties. It is not intended for use in protective purposes, including during tactical/war/ASG games.
The use of the product for ballistic protection and/or for other protective purposes, including the use during tactical/war/ASG games, is the use of the product contrary to its intended use, in which case the buyer does so solely at his own risk.
The vendor is not liable for damage to the product, that might result from the use of the product contrary to its intended purpose, this also applies to all possible health consequences (bodily harm) for the user (buyer) or damage to property. Moreover, a misuse of the product will void the warranty on the product.
The vendor is liable to the buyer under the warranty for product defects (in the event of such defects) only if the buyer/user uses the product for its intended purpose, i.e. for purposes other than protective purposes, including the use during tactical/war/ASG games.
The lack of any protective properties of the product is a feature, not a product defect, and therefore it does not constitute a physical defect of the product within the meaning of the Polish Civil Code.

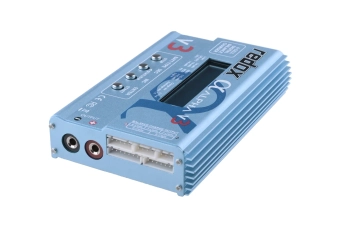

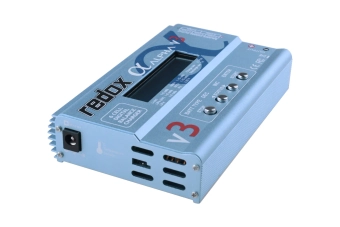

Alpha V3 Redox Charger
A new, perfected version of a popular Alpha charger by Redox.Redox Alpha V3 features, among others, an updated software that provides a long and stable operation of the device. In addition, at the top of the battery is a large radiator that exceptionally drains heat. It is possible to change the charging current and to monitor the current in every cell during charging!
New software allows to charge high-voltage lithium-polymer batteries (LiHV) contains 5 additional, unique functions:
- Meter Lixx Battery Status - a complete information concerning the connected pack: charge %, type, current voltage, voltage per cell
- IT Battery - a resistance meter of internal cell in the connected lithium battery, thanks to which it is possible to accurately analyze the condition of battery cells
- Balancer Lithium Battery - an independent of the charging/discharging process integrated balancer for lithium cells that enables the equal voltage between cells in the package.
- Digital Power - thanks to this function the charger fulfills the role of a power supply with an adjustable power and voltage of the supplied current (max. 27V / 5A!)
- SMART battery charger - a function that allows for individual, manual setting of working parameters of the charger that the current supplied to charger cells should have
Charger features:
- Measurements: 134 x 86 x 26 mm
- Operational Voltage: DC 11.0~18.0 V
- Output Power: Max. Charging Power 50W, Max. Discharging Power 5W
- Charging Current Range: 0.1~5.0A
- Discharge Current Range: 0.1~1.0A
- Balance Current Charge: 300 mAh/cell
- Number of Supported NiCD/NiMH Cells: 1~15 cells
- Number of Supported Li-Po/Fe/Ion Cells: 1~6 cells
- Compatible Pb Batteries: 2~24V
Weight of the Charger (w/o cables): 220 g
- Integrated charger memory: max. 20 packs
- Pack cycling function
- 4 programming buttons
- Integrated ports: 2s, 3s, 4s, 5s, 6s balancer port, Gold 4 mm port, Jack port (12V DC charging), port for optional temperature sensor
The set includes:
- Redox Alpha V3 charger
- 1 x Gold 4 mm - Dean connector adapter
- Additional extension adapters for Gold 4 mm - Dean connector adapter: 1 x DEAN - clips port adapter, 1 x DEAN port adapter - Servo port (Futaba), 1 x DEAN port adapter - XT60, 1 x DEAN port adapter - Tamiya connector (large),
- User’s Manual in Polish
