Aluminium Hop-Up CNC chamber MI - PRO
- Brand: Maxx Model Products
The product does not constitute ballistic protection and has no other protective properties. It is not intended for use in protective purposes, including during tactical/war/ASG games.
The use of the product for ballistic protection and/or for other protective purposes, including the use during tactical/war/ASG games, is the use of the product contrary to its intended use, in which case the buyer does so solely at his own risk.
The vendor is not liable for damage to the product, that might result from the use of the product contrary to its intended purpose, this also applies to all possible health consequences (bodily harm) for the user (buyer) or damage to property. Moreover, a misuse of the product will void the warranty on the product.
The vendor is liable to the buyer under the warranty for product defects (in the event of such defects) only if the buyer/user uses the product for its intended purpose, i.e. for purposes other than protective purposes, including the use during tactical/war/ASG games.
The lack of any protective properties of the product is a feature, not a product defect, and therefore it does not constitute a physical defect of the product within the meaning of the Polish Civil Code.

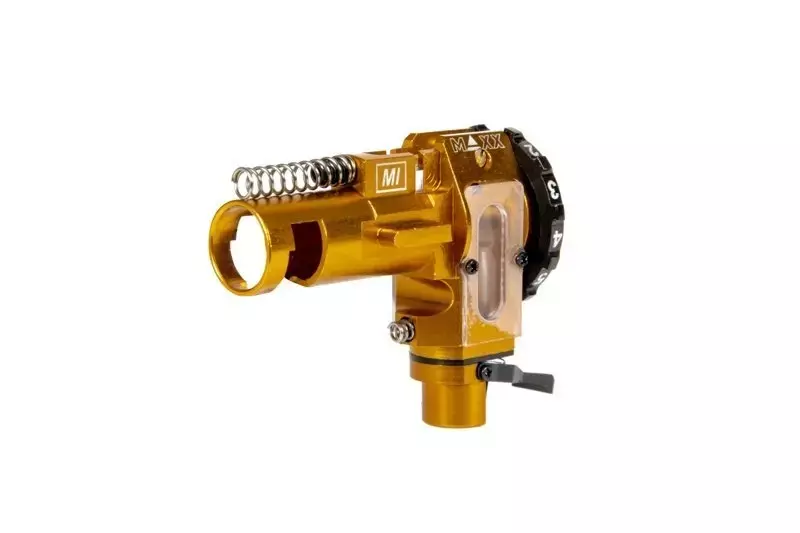

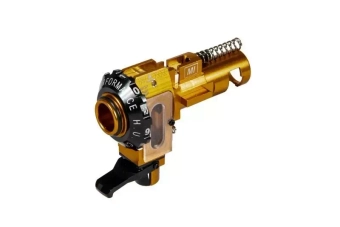

Aluminum CNC Hop-Up chamber MI - PRO
The highest quality Hop-Up chamber designed for tuning replicas of M4/M16 series carbines in ICS standard. The rotary chambers by Maxx Model Products are dedicated to the most demanding players, offering unprecedented precision on the market and perfect operation of the HU system in the replica.
Chamber features:
-precisely manufactured from a block of aerospace aluminium using CNC technology
- assured compatibility and tightness with M4/M16 airsoft rifles in ICS standard (CXP/CS4/EBB, also older models)
- rotary knob for adjustment
- redesigned levers and concave nubs, ensuring trouble-free operation with standard and R-hop rubber bands
- removable brass slot pin for set-up and maintenance
- compatible with nozzle lengths from 21.00mm to 21.25mm
- fully compatible with most soft and hard HU elastics available on the market, with zero FPS drop and ball loss
- fitted with a special CNC Delrin Locking C-Clip to prevent vibration and movement of the barrel
- equipped with 3 compression springs at the top, bottom and centre of the chamber, ensuring perfect and secure seating in the replica
- compatibility with any V2 gearbox 11mm / 11.5mm bore
- specially designed"BB Latching System", preventing the loss of BBs after removing the magazine from the replica
- opening window allowing easy removal of BBs from the inside of the chamber
- possibility to install the module tracer the BBs (not supplied)
- possibility to mount a sensor stopping the operation of the motor / HPA drive after emptying the magazine (not included)
Specifications:
Length: 51mm
Height: 38.5mm
Hub Outer Diameter (to gearbox): min 11.5mm - max 12mm
Hub Outer Diameter (to outer barrel): min 12mm
Hub Inner Diameter (to nozzle): max 8.3mm
Feeder Outer Diameter (to magazine): min 9.25mm
Feeder Length (to magazine): max 6.25mm
Execution: Aluminum 6061

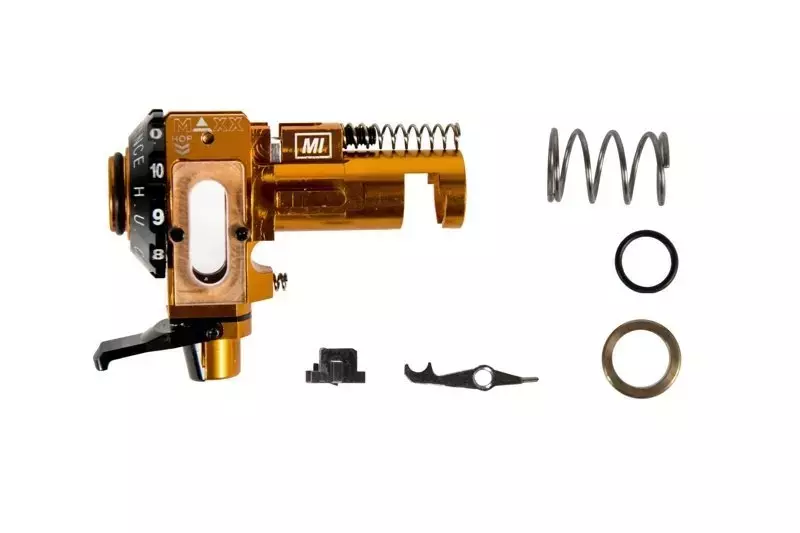

Included:
1 x chamber with BB Latching system
2 x transparent vinyl sheath
1 x CNC aluminium Standard-Hop arm
1 x CNC aluminium R-Hop arm
1 x silicone Standard-Hop Nub Damper
1 x Silicone Rubber R-Hop Nub Damper
1 x CNC aluminium precision Hop Concave Nub 4.5mm
1 x CNC aluminum precision R-Hop Concave Nub 6mm
1 x CNC threaded brass Slot Pin
1 x Delrin Locking C-Clip CNC
1 x CNC Brass Barrel Spacer
1 x Brass Spacer Holder Oring
3 x steel compression spring
