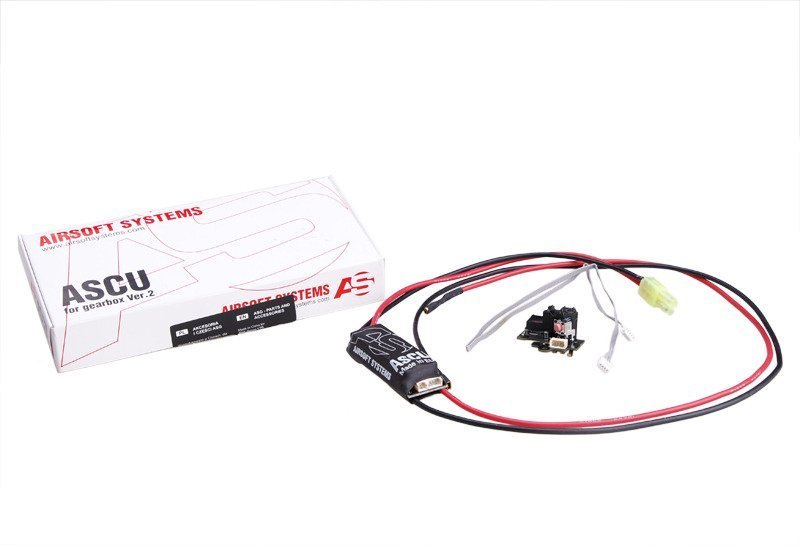

ASCU - Gearbox Airsoft Smart Control Unit - ver. 2
- The advanced replica management module is responsible for expanding the lifespan of the inner parts and it is also responsible for improving the replica’s parameters.
The product does not constitute ballistic protection and has no other protective properties. It is not intended for use in protective purposes, including during tactical/war/ASG games.
The use of the product for ballistic protection and/or for other protective purposes, including the use during tactical/war/ASG games, is the use of the product contrary to its intended use, in which case the buyer does so solely at his own risk.
The vendor is not liable for damage to the product, that might result from the use of the product contrary to its intended purpose, this also applies to all possible health consequences (bodily harm) for the user (buyer) or damage to property. Moreover, a misuse of the product will void the warranty on the product.
The vendor is liable to the buyer under the warranty for product defects (in the event of such defects) only if the buyer/user uses the product for its intended purpose, i.e. for purposes other than protective purposes, including the use during tactical/war/ASG games.
The lack of any protective properties of the product is a feature, not a product defect, and therefore it does not constitute a physical defect of the product within the meaning of the Polish Civil Code.
ASCU - Gearbox Airsoft Smart Control Unit - ver. 2
The ASCU is a two-part electronic module ( the control module and the sensor module ) which, upon being installed in the Airsoft replicas, significantly improve their operation. The traditional joint module was replaced with a sensor module which monitors the actual position of the piston thread-wheel, the firing mode selector lever and the trigger. The gathered information is sent to the control module – in which the software located in the processor analyzes it and controls the replica’s motor with the use of the MOSFET active break.
The ASCU improves the operation of a V.2 gearbox and makes that the replica equals the more expensive replicas and the more sophisticated PTW class replicas.
The ASCU system monitors the operation of the replica no matter the speed of squeezing the trigger and is responsible for the full cycle of the piston’s operation, both in the semi-automatic and full automatic firing modes. The piston stops in the starting position after each shot.
The ASCU is equipped with the Low Drain Protection system which is specially designed to secure the lithium-polymer (LiPo) batteries from being damaged.
In case of any emergency, the ASCU stops the firing mode in the replica and, therefore, secures the inner elements from further damage.
The ASCU is easy to install in the replica which is equipped in the V.2 gearbox. Most of the models does not require the modification of the airsoft rifle’s original parts. Yet, in some cases, some minor changes may have to be introduced – thanks to this the installation process will be completed without any problems.
The control unit is very small and may be placed in the stock or in the front grip (6,5cm x 1,6cm x 1,4cm), while as the second sensor unit fully replaces the connection module and the wiring.

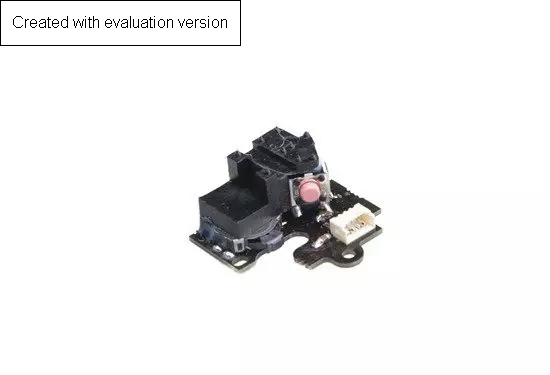

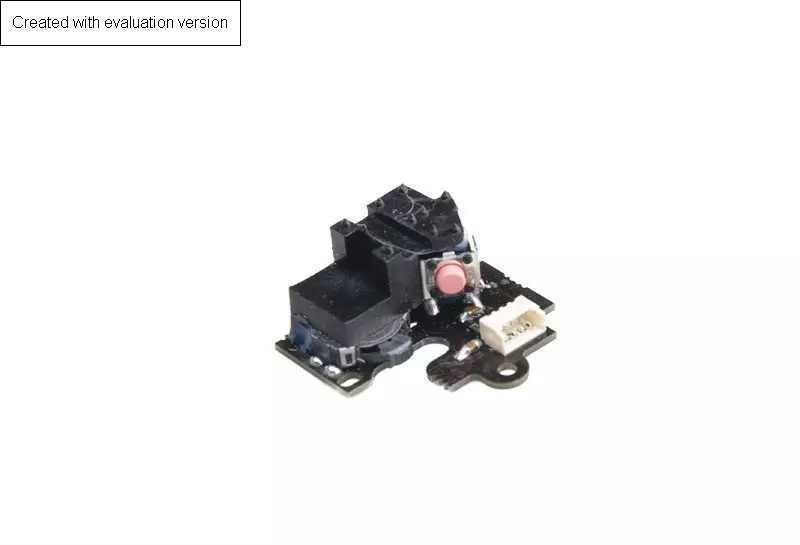

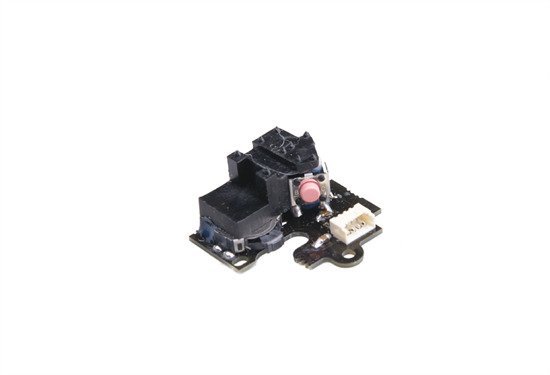

The sensor unit monitors the operation of the piston thread-wheel and thanks to this the whole system is capable of making a full cycle of the gearbox operation (the BB pellet will never remain in the barrel upon removing the magazine and the main spring will always be lose when the replica is not used).
- The ASCU module is adapted to operate with more sensors which will not allow to place a shot when the magazine is empty and, in the case of the “M” replica series, it will make the user use the magazine catch lever whenever the magazine is replaced with a new one.
- The module improves the trigger’s reaction time of the AEG replica, which in comparison to the classic module is practically instant.
- It prevents from an accidental double shot: when the next trigger squeeze is faster than the human reaction – each trigger squeeze is one shot.
- It allows to shoot a 3 round burst by squeezing the trigger shortly in the full-auto firing mode.
- The easy to install module replaces the connectors and the anti-reversal in any V.2 gearbox which’s application eliminates the jamming of the piston. Moreover, it guarantees that the replica will always make a complete cycle (the main spring will remain in the lose position).
- The ASCU controls the battery charge level and does not allow it to discharge too excessively what is very important whenever using lithium batteries (LiPo, LiIon, LiFe).
- The module scans for problems and malfunctions and informs about it with a sound and vibration and, also, cutting off the power source what prevents from further damage to the gearbox.
- Cooperating with the dedicated HU chamber, the module eliminates a blank shot in the replicas equipped with an operating bolt catch – this means that it is impossible to shoot when the magazine does not feed the replica with BB pellets.
- The ACSU unit significantly extends the battery’s lifespan.
- It gives more possibilities than the Systema Revolution and the PTW at smaller installation costs and allows to use a wide range of spare parts which are available foe the V.2 and V.3 gearbox.
- The product is granted with a 24-month guaranty; only in the case when it is installed by an authorized service.
The ASCU unit has got the CE certificate and is compatible with the RoHS directive.
Attention!!! The ASCU is not compatible with the ICS’s V2 gearbox.
Details available here: Airsoftsystems.com
Review on the “Koalicja Północ” airsoft fans’ portal
