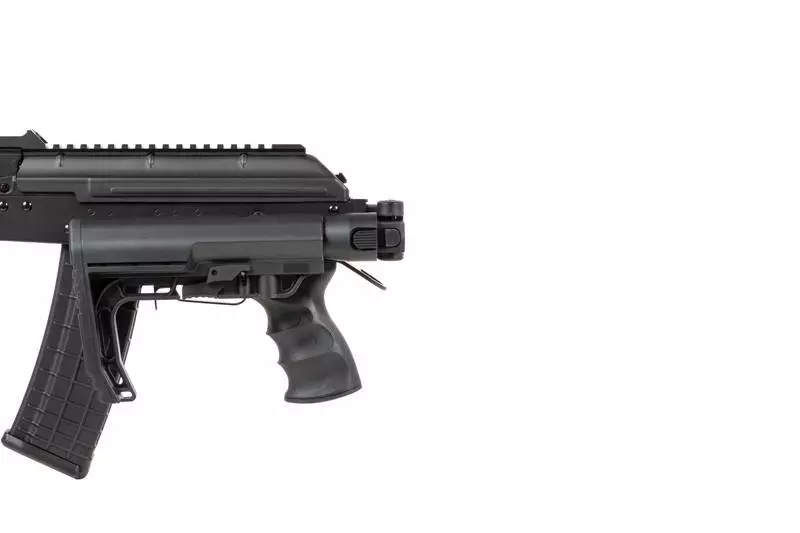

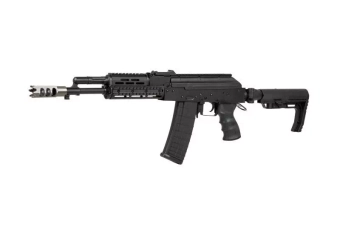

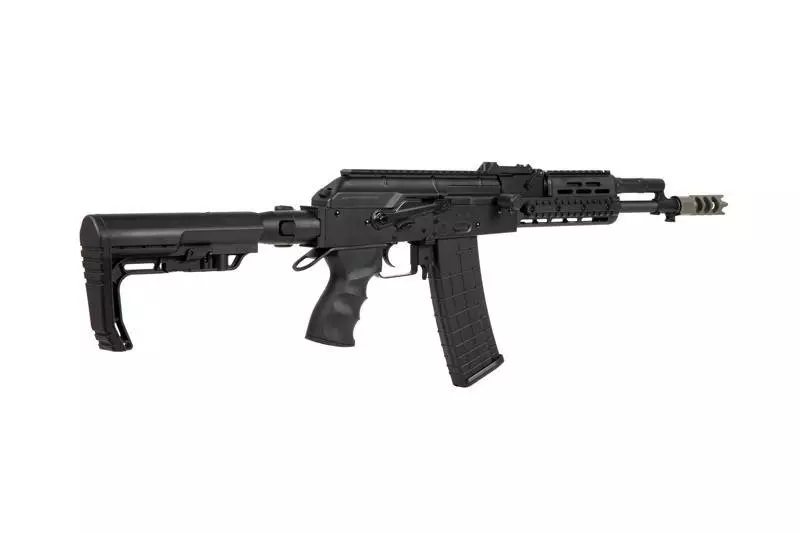

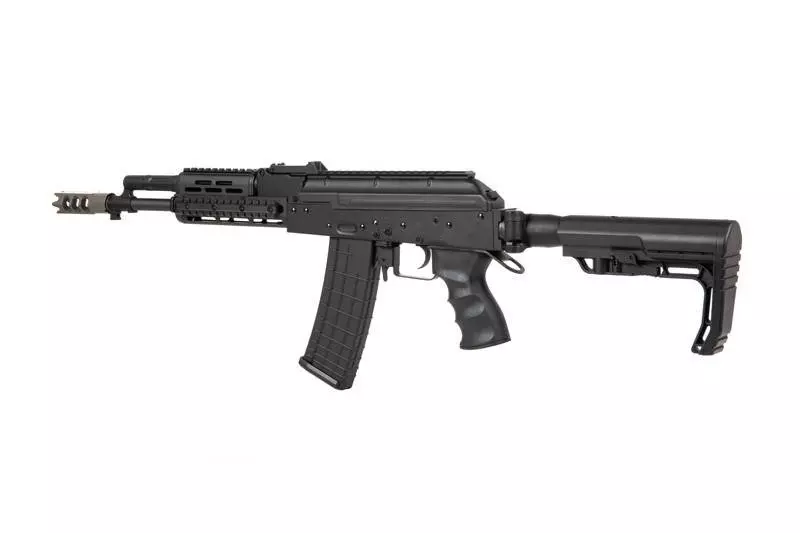

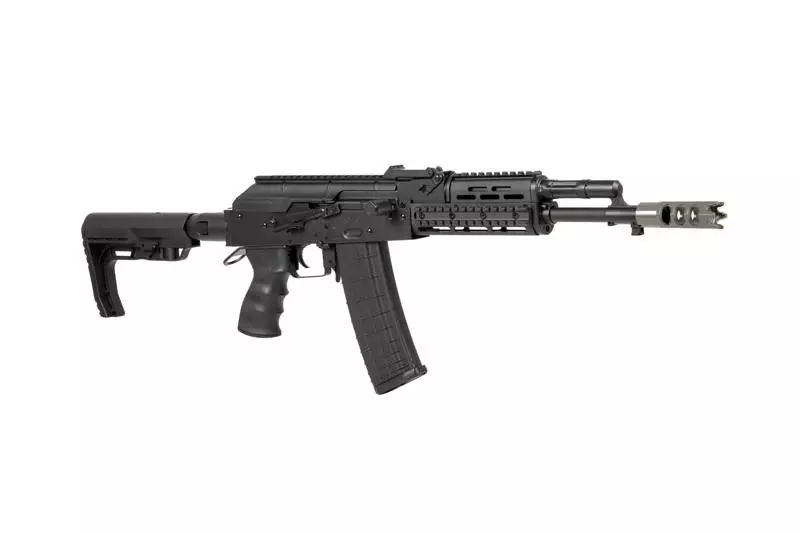

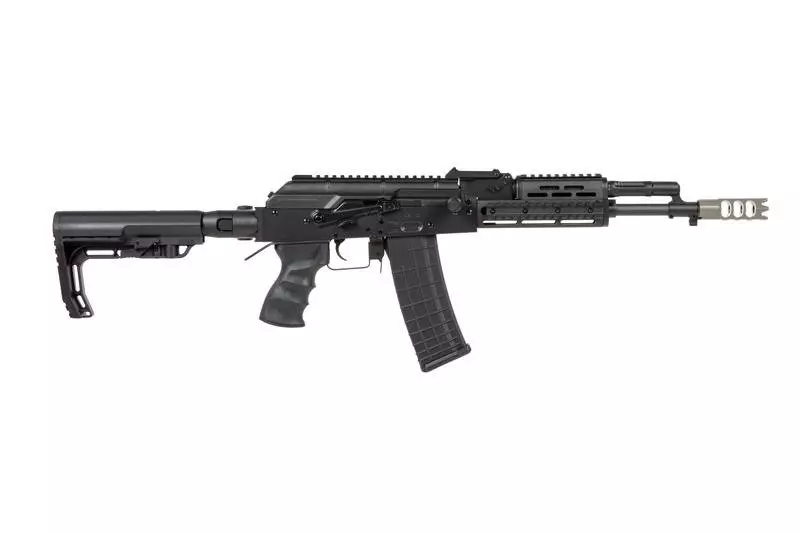

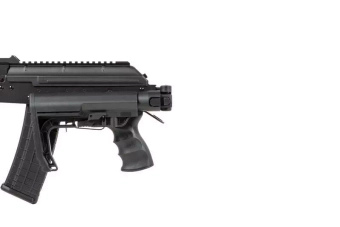

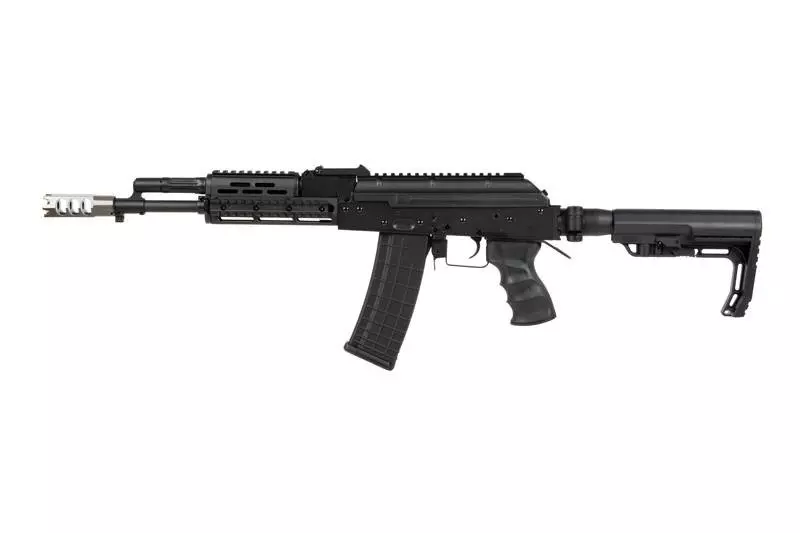

CM076E Carbine Replica - Black
- Material: Metal + polymer + steel Weight: 3340 g Length: 880 - 960 mm Color: Black Muzzle Velocity: 430 FPS Engine: Electric Manufacturer: CYMA
The product does not constitute ballistic protection and has no other protective properties. It is not intended for use in protective purposes, including during tactical/war/ASG games.
The use of the product for ballistic protection and/or for other protective purposes, including the use during tactical/war/ASG games, is the use of the product contrary to its intended use, in which case the buyer does so solely at his own risk.
The vendor is not liable for damage to the product, that might result from the use of the product contrary to its intended purpose, this also applies to all possible health consequences (bodily harm) for the user (buyer) or damage to property. Moreover, a misuse of the product will void the warranty on the product.
The vendor is liable to the buyer under the warranty for product defects (in the event of such defects) only if the buyer/user uses the product for its intended purpose, i.e. for purposes other than protective purposes, including the use during tactical/war/ASG games.
The lack of any protective properties of the product is a feature, not a product defect, and therefore it does not constitute a physical defect of the product within the meaning of the Polish Civil Code.
CM076E Carbine Replica - Black
CM076E replica was made of steel, metal and high-quality polymer, with a great care for details. Elements such as the receiver, mock gas pipe, muzzle device and the dust cover were made of steel. However, other miscellaneous metal elements were made of zinc alloy and aluminum. An ergonomic and comfortable pistol grip, similarly to the handguard and the stock, were made of a reinforced polymer in a black, mat color.
CM076 is a modified version of a standard AK replica, which can be seen at the very first glance - a new stock, RIS rail on the dust cover and the polymer handguard enable an easier operation of the replica and make it more comfortable and ergonomic.

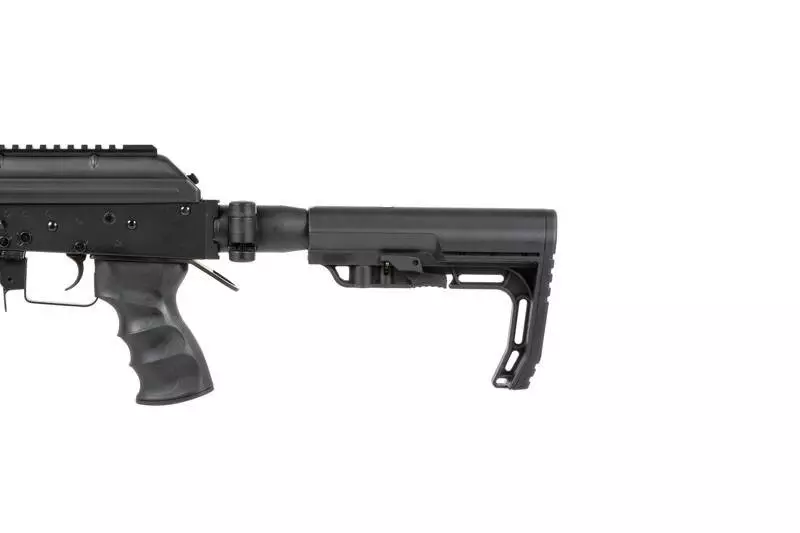

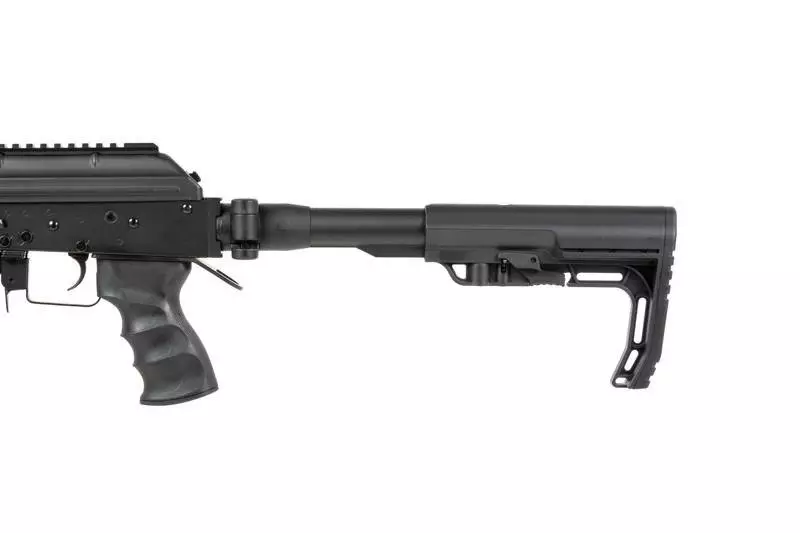

The replica is equipped with a comfortable, adjustable stock made of polymer. The top of the dust cover features a RIS 22 mm rail which enables the attachment of various scopes or red dot sights - there is no need for the so-called “dovetail joint” mounts. The ergonomic pistol grip and the handguard were made of durable polymer. The handguard is compatible with KEYMOD mounting system for accessories such as rails or tactical grips. The barrel of the replica has a custom muzzle device.
Due to its size, the replica is ideal for combat on a medium range while the internal barrel in combination with a considerable muzzle velocity provide a tight cone of fire and precision when firing.
The replica features a metal Hop-Up chamber. The replica features a standard for AK replicas, very durable gearbox V3. In this case, it was additionally modified and equipped with a reinforced gearbox frame. Other reinforced parts are 7 mm steel slide bearings, reinforced steel gears and directional piston head that improves the efficiency of the entire mechanism.
The implementation of M125 spring in combination with a piston with an aluminum sleeve has resulted in a significant, for an assault rifle replica, muzzle velocity of ~430 FPS. The usage of a reinforced ball bearing spring guide has also factored into the above.
The set includes the replica and a polymer Hi-Cap magazine with a capacity of up to 400 BBs.
The set includes:
- replica
- magazine
- cleaning rod
- User’s manual
Blow back is a simulation system of the cocking lever - it imitates the work of it as the equivalent sharp. This system raises the realism and adds a lot more experience during shooting.
It is the spped of bb, while its leaving the innerbarrel of replica. This speed is measured in FPS (Feet Per Second).
1 FPS = 0,3 m/s
1 J = 99 m/s
1 J = 326,7 FPS
Indications v2, v3, v6 does not mean the level of advance, but only shape of gearbox skeleton which was used and selected by the manufacturer depending on the capabilities of the body of the replica. For example, a models of the M4/M16 family, MP5, have a v2 gearbox, while the AK family have gearbox v3.
Hop-Up system is used for overclocking bb during the shot (putting it in rotation), through which, it extends its flight path. Acting laws of physics make that bb lift up, while the gravitational force take it down. Appropriate adjustment of Hop-Up, will compensate for these two factors, which result in long and straight flight for longer distance and be greater focus shot (to improve accuracy).
