CNC Aluminum Hop Up Chamber M4A - PRO (by Maxx Model)
- For: M4 / M16 TM, Krytac and G&G Replicas Material: aluminum 6061 Weight: 20g Colour: blue Manufacturer: Specna Arms / Maxx Model Products
The product does not constitute ballistic protection and has no other protective properties. It is not intended for use in protective purposes, including during tactical/war/ASG games.
The use of the product for ballistic protection and/or for other protective purposes, including the use during tactical/war/ASG games, is the use of the product contrary to its intended use, in which case the buyer does so solely at his own risk.
The vendor is not liable for damage to the product, that might result from the use of the product contrary to its intended purpose, this also applies to all possible health consequences (bodily harm) for the user (buyer) or damage to property. Moreover, a misuse of the product will void the warranty on the product.
The vendor is liable to the buyer under the warranty for product defects (in the event of such defects) only if the buyer/user uses the product for its intended purpose, i.e. for purposes other than protective purposes, including the use during tactical/war/ASG games.
The lack of any protective properties of the product is a feature, not a product defect, and therefore it does not constitute a physical defect of the product within the meaning of the Polish Civil Code.

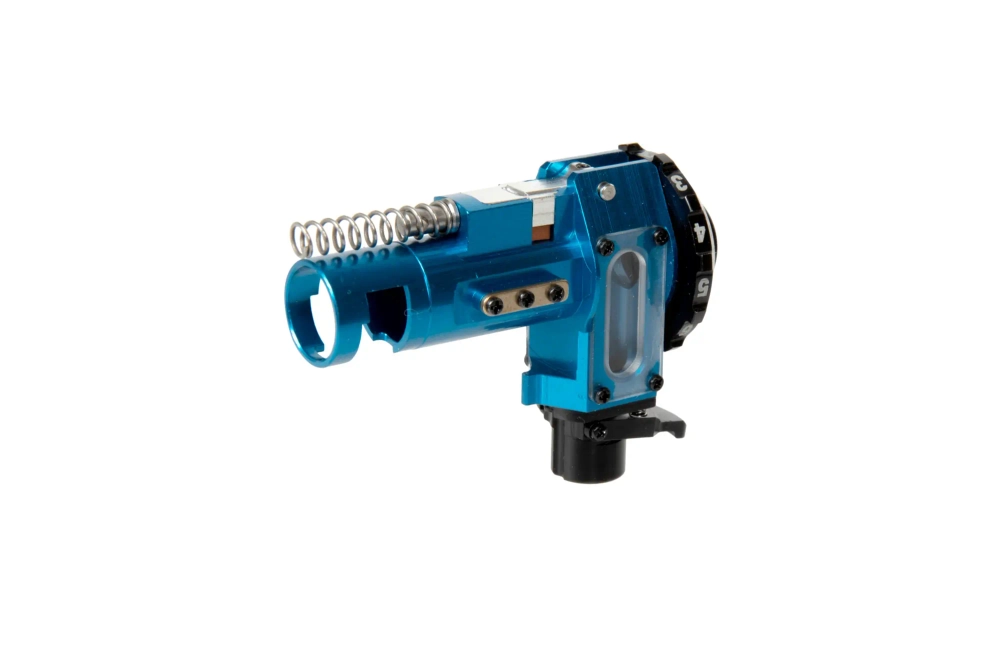

CNC Aluminum Hop Up Chamber M4A - PRO Specna Arms
The CNC M4A - PRO is a Hop-Up chamber, which was created in cooperation with the Maxx Model Products brand. The company is known for providing top-tier tuning parts for airsoft replicas, which are able to satisfy even the most demanding of players. The CNC M4A - PRO chamber is characterized by near perfect precision and workmanship.
The highest quality Hop-Up chamber designed for tuning M4 / M16 replicas. Rotary chambers manufactured by Maxx Model Products are made for the most demanding of players, they offer precise workmanship that is unprecedented on the market and perfect operation of the HU system in the replica.
Features:
- precisely made of a block of aviation aluminum using CNC technology
- compatible with M4 / M16 carbine replicas in the Tokyo Marui standard (including G&G or Krytac replicas, but NOT KWA)
- rotary knob for adjustment
- redesigned precise HopUp and 4mm Bucking Nubs levers (6mm versions are optional), ensuring trouble-free operation with standard and R-hop elastics
- Removable steel Pivot Pin for setup and maintenance
- works with nozzles with a length of 21.00mm to 21.25mm
- full compatibility with most soft and hard HU elastics available on the market, with zero FPS drops and balls falling out
- equipped with a special CNC Delrin Locking C-Clip, preventing vibration and barrel movement
- equipped with 2 compression springs at the top and in the middle of the chamber, ensuring a perfect and secure fit in the replica
- equipped with an 11mm Inlet Adapter for the gearbox (11.5 and 12mm versions available separately) to ensure the central arrangement of the nozzle in the chamber and reduce wobble
- added, replaceable brass side wings to improve the fit of the chamber in the outer barrel
- redesigned "BB Latching System", preventing the BBs from falling out after removing the magazine from the replica
- The remie holding the BB’s can be pressed by hand to release the BB’s from the chamber
- possibility of mounting a BB tracer unit (not included)
Specification:
Length: 51.65mm
Height: 37.75mm
Hub Outer Diameter (for the gearbox): 11mm
Hub Outer Diameter (for the outer barrel): 12mm
Hub Inner Diameter (to the nozzle): 8mm
Feeder Outer Diameter (for magazine): min 8.85mm
Feeder Length (for magazine): max 6mm
Execution: Aluminium 6061

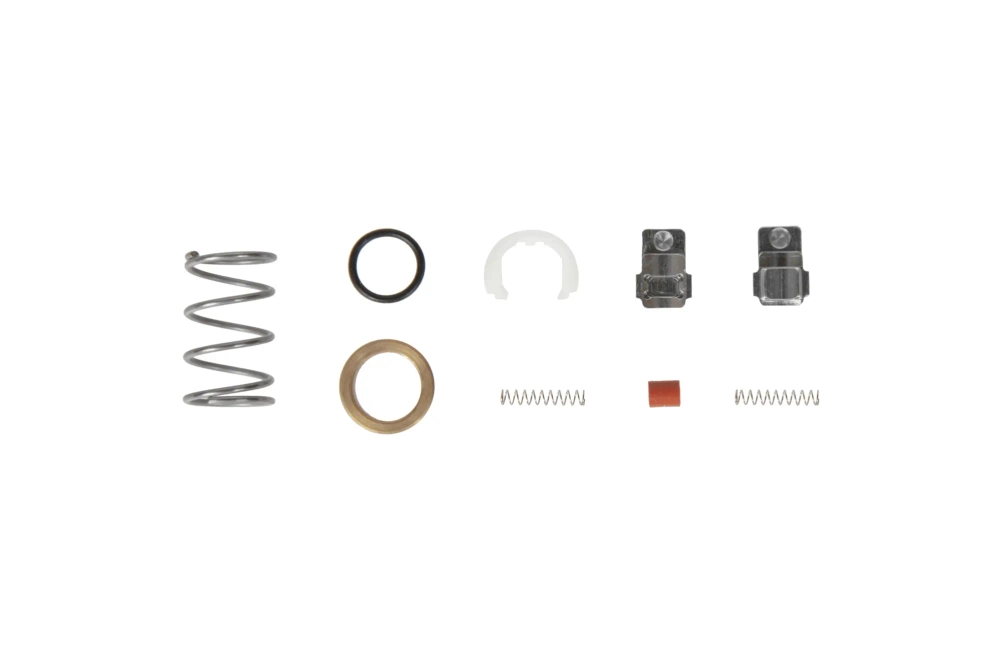

The set includes:
1 x CNC chamber with BB Latching system
2 x clear CNC vinyl cover
2 x 2.5mm CNC Brass Side Wing
1 x Steel CNC Pivot Pin
1 x HopUp CNC aluminum arm
1 x Aluminum Soft Round Nub CNC
1 x Aluminum Soft Flat Nub CNC (4mm)
1 x Aluminum Hard Concave Nub CNC (4mm)
3 x steel Nub Spring
1 x steel CNC spring guide
1 x steel top compression spring
1 x steel central compression spring
1 x Delrin Locking C-Clip CNC
1 x Brass CNC Barrel Spacer
1 x Brass Spacer Holder Oring
1 x CNC aluminum adjustment knob
1 x Aluminum Inlet CNC Adapter (11mm)
1 x Brass Inlet Spacer CNC
