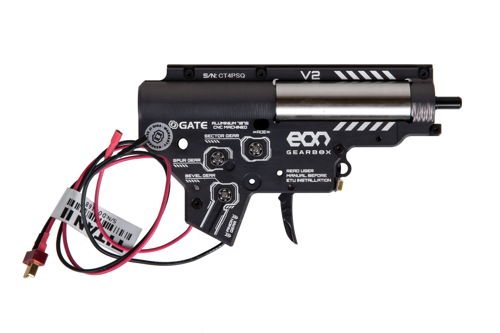

Complete Gearbox EON V2 with built-in TITAN II Bluetooth® system (Rear Wired)
- Brand: GATE
- color: tytan
- made for: Replicas M4/M16
- weight [g]: 360
The product does not constitute ballistic protection and has no other protective properties. It is not intended for use in protective purposes, including during tactical/war/ASG games.
The use of the product for ballistic protection and/or for other protective purposes, including the use during tactical/war/ASG games, is the use of the product contrary to its intended use, in which case the buyer does so solely at his own risk.
The vendor is not liable for damage to the product, that might result from the use of the product contrary to its intended purpose, this also applies to all possible health consequences (bodily harm) for the user (buyer) or damage to property. Moreover, a misuse of the product will void the warranty on the product.
The vendor is liable to the buyer under the warranty for product defects (in the event of such defects) only if the buyer/user uses the product for its intended purpose, i.e. for purposes other than protective purposes, including the use during tactical/war/ASG games.
The lack of any protective properties of the product is a feature, not a product defect, and therefore it does not constitute a physical defect of the product within the meaning of the Polish Civil Code.
Complete
Gearbox EON V2 with built-in TITAN II Bluetooth® system
Features:
- SSG (Short Stroke) version - 350 FPS / 1.2 J (measured
with 0.25g BBs and a 300mm inner barrel).
- Configuration for optimal performance
provides incredible trigger response and reliability.
- Equipped with the ETU - TITAN
II Bluetooth® V2.
- High-quality upgrade parts, such
as the CNC GATE EON gearbox frame and EON pneumatic set.
- Free access to the GCS
application allows real-time editing of the replica settings.
- Fully compatible with brushless
motors T238. Maximum nominal battery voltage for other motors is
7.4 V (two-cell batteries).
- Plug & Play - easy installation straight out of the box.
Parts list:
- GATE EON V2 Gearbox Frame (Titanium color)
- TITAN II Bluetooth® V2 gearbox drop-in ETU FCU mosfet AEG HPA
- Adjustable Nova Trigger
- - 13:1 SSG quick gearset
M110 spring used
- CNC piston with a full steel tooth rack
- EON Protector Cylinder Head
- EON High-Speed Piston Head
- Sealed POM CNC Nozzle - 21.25 mm
- Polished stainless steel cylinder
- EON Tappet Plate
- Reinforced anti-reversal latch
- 8mm type J-caged reinforced bearings with a low friction coefficient
- Perfect fit for GATE EON hop-up chambers and other chambers designed for
nozzles with a length of 21.25 mm.
In the complete EON gearbox, the rate of fire is factory limited
to 25 RPS. This is a safeguard against internal mechanical damage, which is
covered by the warranty.
This limitation can be disabled by waiving the warranty on internal mechanical
damage through the GCS application.
The warranty for the ETU and the EON gearbox frame remains unchanged.
