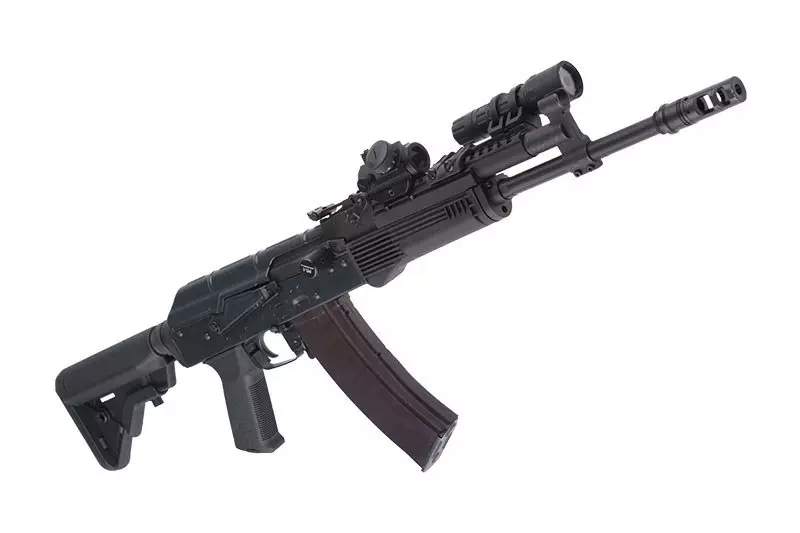

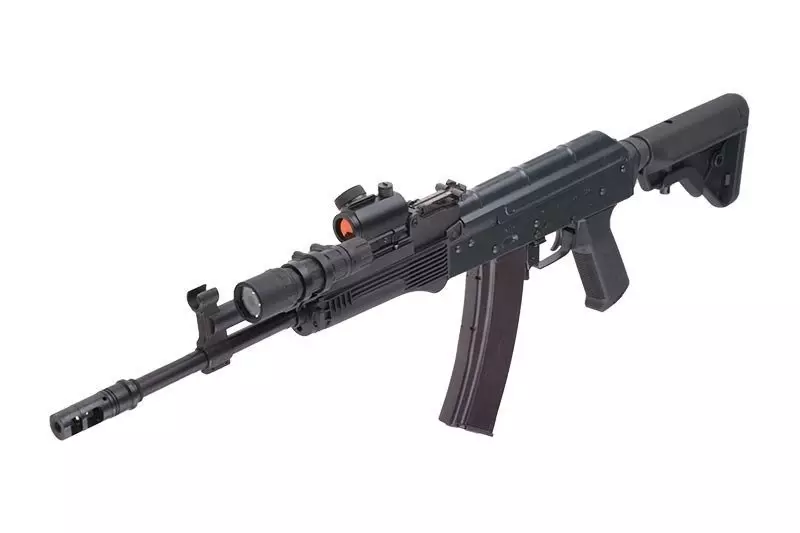

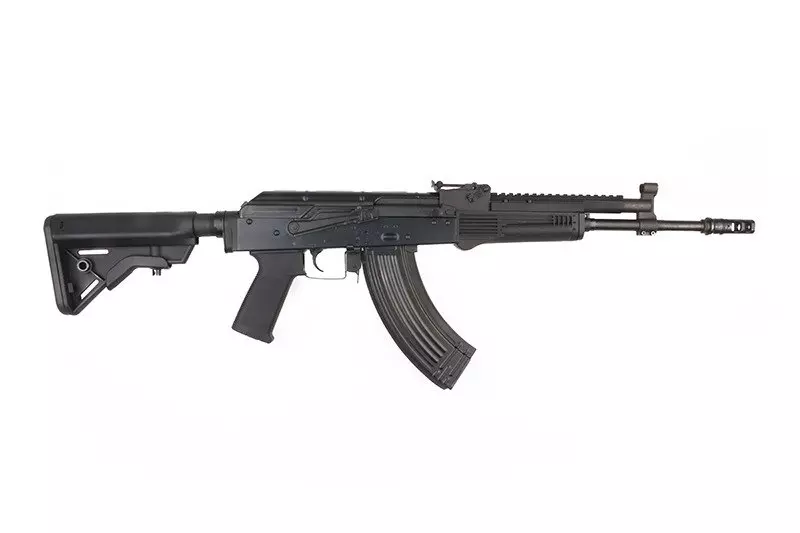

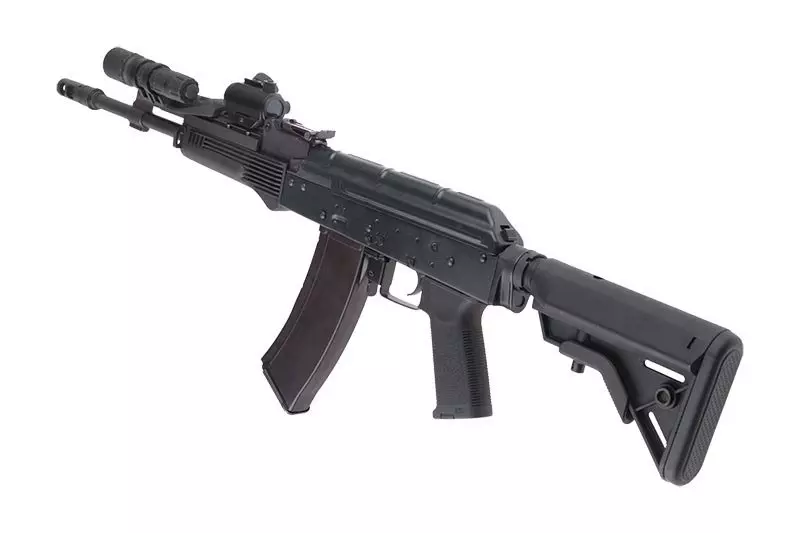

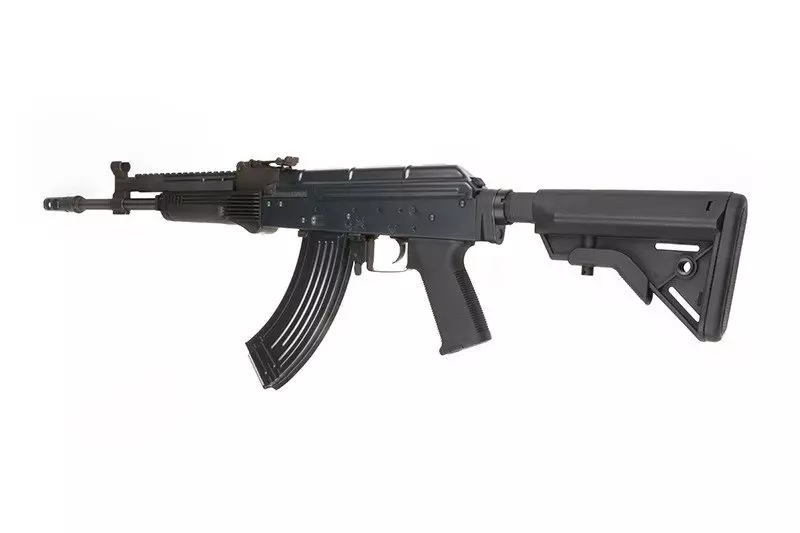

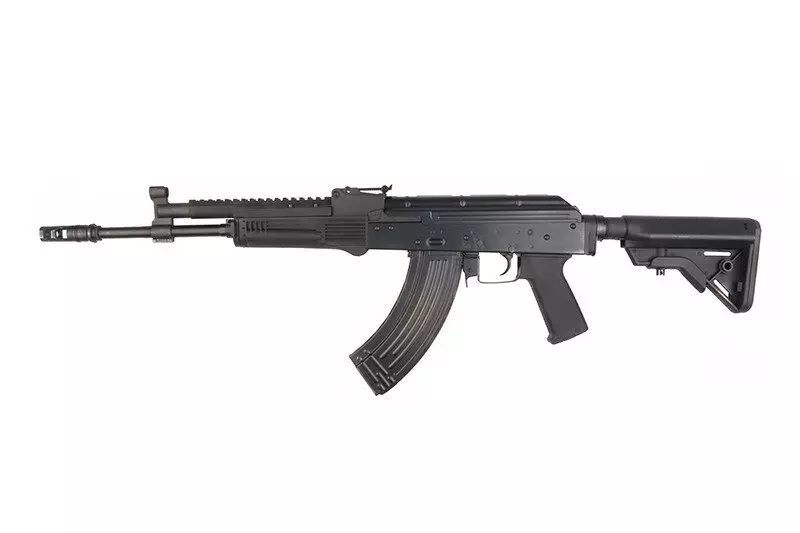

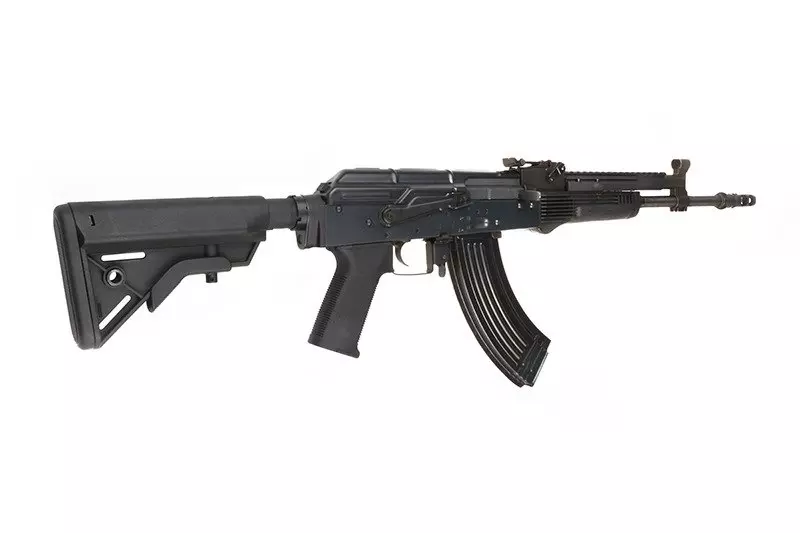

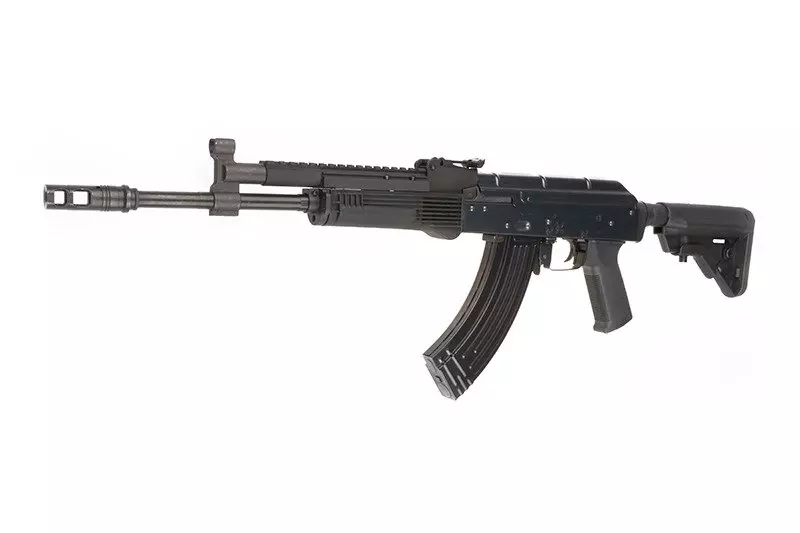

ELAK702 Custom (Gen.2) Assault Rifle Replica
- Generation 2 Quick Spring Change System Material: Steel + Metal + Polymer Weight: 3600 g Length: 875-960 mm Muzzle Velocity: ~430 FPS Engine: Electric Manufacturer: E&L
The product does not constitute ballistic protection and has no other protective properties. It is not intended for use in protective purposes, including during tactical/war/ASG games.
The use of the product for ballistic protection and/or for other protective purposes, including the use during tactical/war/ASG games, is the use of the product contrary to its intended use, in which case the buyer does so solely at his own risk.
The vendor is not liable for damage to the product, that might result from the use of the product contrary to its intended purpose, this also applies to all possible health consequences (bodily harm) for the user (buyer) or damage to property. Moreover, a misuse of the product will void the warranty on the product.
The vendor is liable to the buyer under the warranty for product defects (in the event of such defects) only if the buyer/user uses the product for its intended purpose, i.e. for purposes other than protective purposes, including the use during tactical/war/ASG games.
The lack of any protective properties of the product is a feature, not a product defect, and therefore it does not constitute a physical defect of the product within the meaning of the Polish Civil Code.
ELAK702 Custom (Gen.2) Assault Rifle Replica
E&L Airsoft is a new quality on the airsoft replica market. The manufacturer has decided to create replicas that will resemble the live firearm originals in terms of material quality and how well parts fit together as well as possible and made strides in that direction as far as possible - by launching production in the very same factory that manufactures live firearms! The replicas were used using the same materials as in the originals: steel, hand finished wood elements or high quality polymer. Also some of the external parts are identical to those of the original and come off the very same production line.
This allowed E&L to significantly move ahead of its competition among the manufacturers from behind the eastern border. It can compete (and win!) with the best brands on the market - also when it comes to prices. Its quality and specification make it not only a beautiful wall decoration but also a very effective field replica.
Outside, a maximum amount of elements that is possible in a replica was made in a 1:1 scale in comparison with the original, according to the military specification. This means that it is possible to change parts between the replica and its live firearm counterpart! This concerns, among others, the front cradle, gas pipe cap and iron sights. Little to none other manufacturers offer such possibilities.
Wooden elements have undergone hand processing, which on the one hand assures high quality and on the other hand uniqueness. This model features wooden cradle and gas pipe cap. One-of-a-kind character was achieved also due to an individual serial number located on the receiver. Steel elements have undergone anodizing, which makes their appearance even more realistic, also sometimes the process of abrasion of the anodizing gives a much better effect than in the case of painted or lacquered replicas.

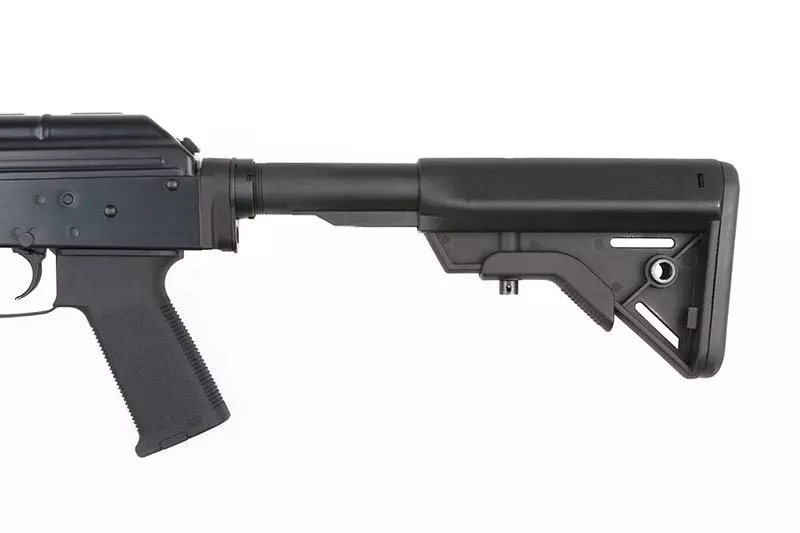

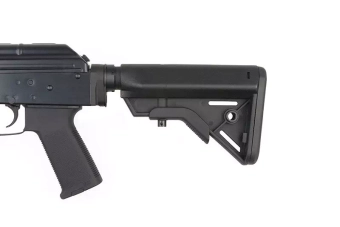

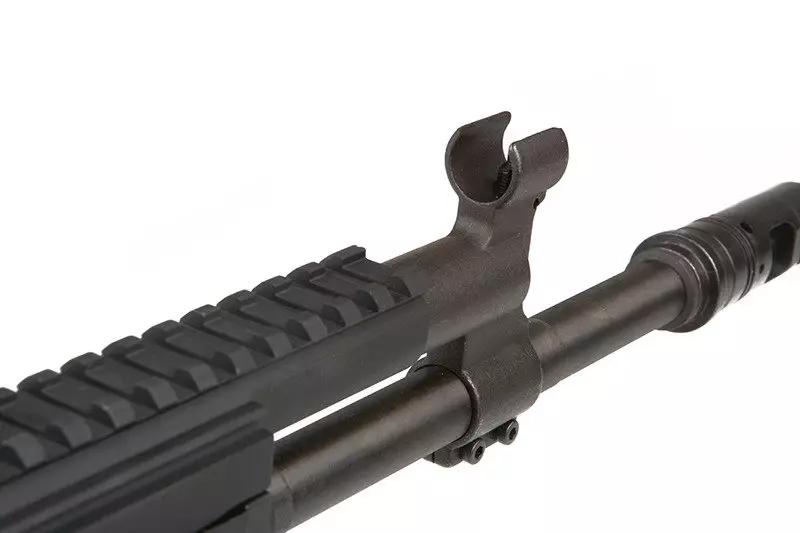

ELAK710 SBR features a hand guard lacking any sort of mounting rails - its profiled shape, lack of any insets and light, but durable polymer construction provide comfort and ergonomics of use. On the other hand, the gas pipe feature a metal cover with long RIS 22 mm mounting rail that enables the attachment of a wide array of accessories, for instance, a reflex sight or a tactical scope. Apart from that, we also get a very comfortable and pleasant in use, made from durable polymer, telescopic stock known from American AR assault rifles.
Great effort was also made to make the replica’s weight as close to that of the original as possible. It is heavy and additionally, correct balance is guaranteed by a steel, outer barrel. Worth noting is without a doubt the option of partial disassembly of the replica, like its live firearm counterpart - without the need for tools. Everything is based on pins and levers. The manufacturer has taken care of the smallest details in order to bring the product as close to the original as possible.
All E&L replicas are covered with thick, technical oil, which safeguards the product during transport against humidity and other possible impurities. A mix of oil, steel and lacquered wood emits a unique smell that is well-known to people having contact with firearms.
The battery is located beneath the dust cover. The cover is held by a single latch, which allows for rapid disassembly and change of the power source at any moment.
Also internally the product appears superb. E&L engineers have collected from the market the best solutions and also added some of their own. The pneumatic system consists of a set of a silent piston and cylinder heads, which prolongs the lifetime of the system and provides better absorption. The spring slide features bearings and the sector gear has an enlarged delayer clip. It provides the BB with more time to be introduced into the chamber, which is especially important when dealing with configurations with high rate of fire. High accuracy and tight cone of fire provides the implemented internal barrel with a diameter of 6,04mm.
What is Generation 2 characteristic for?
Generation 2 replicas are equipped with a new standard gearbox! Most importantly it received a rapid spring change system - Quick Spring Release. It allows for quick adaptation of the replica’s power to the needs of the user via main spring exchange without the need to unscrew the gearbox and, as a result, the need to have access to a workshop or special tools. Once the gearbox has been taken out of the replica’s body, the process of spring change lasts literally mere seconds thanks to a special construction of the skeleton and the slide.
Generation 2 has a perfected, even more durable gearbox, which in comparison with previous models has replaced with new ones, among others: the skeleton, gears, cylinder, nozzle, spring slide and wiring. The new solutions guarantee better reliability, higher ROF and smaller energy drain.
What components exactly will we find inside E&L Gen 2?
- the new type, reinforced gearbox skeleton is mounted on 9mm ball bearings and adapted to the Quick Spring Release system
- bearing-mounted spring slide QSR (Quick Spring Release)
- a set of steel gears made with the use of precise CNC machines.
- one-piece, steel cylinder made with the use of precise CNC machines
- a sealed nozzle with additional O-ring
- a set of 9 mm ball bearings
- reinforced, POM piston with three steel teeth
- a muffled piston head
- efficient High Torque M170 motor on neodymium magnets
- low-resistance, silver-plated wiring
Generation 2 also features an interesting addition - a magwell spacer for the magazine well, whose implementation causes realistically simplifies and speeds up the magazine change process!
Replicas come in brand new, practical and elegant boxes. The boxes are fully filled with hard foam which safely and firmly holds the replica and all of its accessories in place. Each replica comes with an oilcan, while models featuring a fixed stock additionally come with a cleaning kit, the very same as the one intended for live firearm.
The replica comes with a hi-cap, steel magazine with a capacity of up to 150 BBs.
The set includes:
- replica
- magazine
- oilcan
- QA test certificate
Examples of LiPo battery models that fit inside the dust cover:
http://gunfire.pl/product-pol-1152198888-Akumulator-LiPo-7-4V-1300mAh-25C.html
http://gunfire.pl/product-pol-1152206129-Akumulator-LiPo-7-4V-1300mAh-25-50C-.html
http://gunfire.pl/product-pol-1152198565-Akumulator-Redox-LiPo-1400-mAh-7-4V-20C.html (requires T-connect/Tamiya small adapter)
Magazine Compatibility: the replica is compatible with majority of magazine types by LCT and MAG, adaptation of some of CM, Boyi and JG magazines may require minor modifications.
Attention: The set does not include a battery or a charger.
NiCd
rechargeable battery is characterized by high efficiency
current-carrying capacity, but there are disruptive effect on memory.
Should be unloaded and loaded in the full cycle, ie, it is recommended
to fully discharge, and after unloading must charge the battery
immediately without leaving it for a long time in a discharged state.
NiMH batteries have a higher self-discharge over time and shorten the
life - on the other hand, they earn about 30% more capacity.
Blow back is a simulation system of the cocking lever - it imitates the work of it as the equivalent sharp. This system raises the realism and adds a lot more experience during shooting.
It is the spped of bb, while its leaving the innerbarrel of replica. This speed is measured in FPS (Feet Per Second).
1 FPS = 0,3 m/s
1 J = 99 m/s
1 J = 326,7 FPS
Indications v2, v3, v6 does not mean the level of advance, but only shape of gearbox skeleton which was used and selected by the manufacturer depending on the capabilities of the body of the replica. For example, a models of the M4/M16 family, MP5, have a v2 gearbox, while the AK family have gearbox v3.
Hop-Up system is used for overclocking bb during the shot (putting it in rotation), through which, it extends its flight path. Acting laws of physics make that bb lift up, while the gravitational force take it down. Appropriate adjustment of Hop-Up, will compensate for these two factors, which result in long and straight flight for longer distance and be greater focus shot (to improve accuracy).
