GATE TITAN II Bluetooth® V2 Expert Controller Kit (HPA Front Wired)
- Brand: GATE
- color: Black&blue
- made for: Replicas z gearboxem V2
- weight [g]: 28
The product does not constitute ballistic protection and has no other protective properties. It is not intended for use in protective purposes, including during tactical/war/ASG games.
The use of the product for ballistic protection and/or for other protective purposes, including the use during tactical/war/ASG games, is the use of the product contrary to its intended use, in which case the buyer does so solely at his own risk.
The vendor is not liable for damage to the product, that might result from the use of the product contrary to its intended purpose, this also applies to all possible health consequences (bodily harm) for the user (buyer) or damage to property. Moreover, a misuse of the product will void the warranty on the product.
The vendor is liable to the buyer under the warranty for product defects (in the event of such defects) only if the buyer/user uses the product for its intended purpose, i.e. for purposes other than protective purposes, including the use during tactical/war/ASG games.
The lack of any protective properties of the product is a feature, not a product defect, and therefore it does not constitute a physical defect of the product within the meaning of the Polish Civil Code.

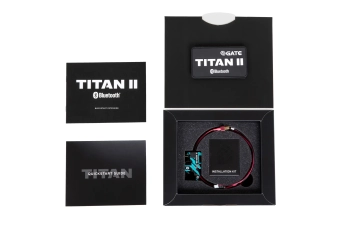

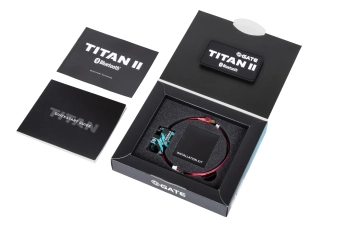

The GATE TITAN II Bluetooth® V2 Expert (HPA Front Wired) Controller Kit
TITAN II Bluetooth® V2 is GATE's flagship electronic chip replacement for the Electronic Contact Unit (ETU) by GATE. Built-in Bluetooth 5.2 technology gives direct access to the replica's settings, telemetry and the ability to use the with smartwatches, STATUS and other GATE devices.
Optical trigger sensor allows you to set the trigger "to the touch" with a precision of up to 50 levels of sensitivity for the first millimetre of trigger movement, while retaining the advantages of the sensor known from the TITAN V2. The TITAN II Bluetooth® V2 is equipped with a multifunctional port ready to connect additional accessories such as bolt-catch, sensor magazine, hop-up chamber ball illuminator and others.
Technical specifications:
Voltage rating: 3.75-17 VDC
Rated current: 30 A
Maximum no-load current consumption: 27 mA
Unloaded current consumption: 100 µA
Communications: Bluetooth® 5.2 Low Energy
Dimensions (length x width x thickness): 47.2 mm x 28.9 mm x 14.5 mm
Weight of finished product: 28.2g
Operating temperature range: min. -15° C, max. +50° C
Relative operating humidity: ≤ 80%
Firmware version EXPERT.
Version with revised wiring, prepared for single and double valve HPA motors.
