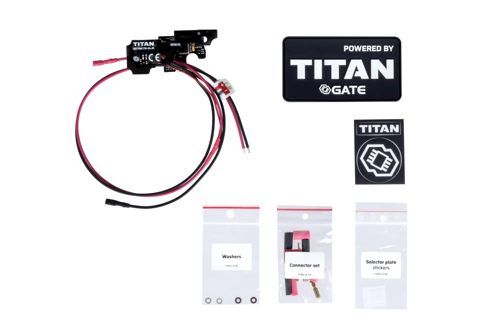

GATE TITAN™ NGRS Expert Controller Kit (Rear wired)
- Brand: GATE
- color: Black
- made for: Replicas TM NGRS
- weight [g]: 130
The product does not constitute ballistic protection and has no other protective properties. It is not intended for use in protective purposes, including during tactical/war/ASG games.
The use of the product for ballistic protection and/or for other protective purposes, including the use during tactical/war/ASG games, is the use of the product contrary to its intended use, in which case the buyer does so solely at his own risk.
The vendor is not liable for damage to the product, that might result from the use of the product contrary to its intended purpose, this also applies to all possible health consequences (bodily harm) for the user (buyer) or damage to property. Moreover, a misuse of the product will void the warranty on the product.
The vendor is liable to the buyer under the warranty for product defects (in the event of such defects) only if the buyer/user uses the product for its intended purpose, i.e. for purposes other than protective purposes, including the use during tactical/war/ASG games.
The lack of any protective properties of the product is a feature, not a product defect, and therefore it does not constitute a physical defect of the product within the meaning of the Polish Civil Code.
TITAN™ NGRS Expert (Rear wired)
TITAN™ controller kit TITAN™
V2 Drop-In mosfet type transforms Tokyo Marui V2 Next Generation
Recoil Shock into an advanced training replica. It gives you a
tactical advantage, thanks to lightning-fast trigger response, with the ability to
modify the replica and adapt it to any mission with 20
available functions.
System TITAN in the EXPERT version has unlocked access to all programming functions with the GATE Control Station.
TITAN™ provides new capabilities:- Trigger sensitivity adjustment
- Adjustment of fire selector modes
- Series firing mode
- Adjustment of rate of fire
- Low battery warning
-. Protects battery from damage
- "Sniper delay"
- Full cycle detection
- AUG mode - two trigger sensitivities can be set (single and continuous fire)
Detailed description of TITAN™ controller features:
Regulation SPUST SENSITIVITYFive sensors allow you to control the sensitivity of the trigger. There is no need to dismantle the replica, simply use the Tactical Programmer Card, or the GATE™ Control Station app. It will allow you to customise the replica to your skills and individual preferences.
CONFIGURABLE FIRE SELECTOR (gen. 2)
The two sensors can be programmed in three ways, with up to 6 functions to choose from:
- SAFE-SEMI-AUTO
- SAFE-SEMI-SEMI
- SAFE-SEMI-BURST*
- SAFE-BURST*-AUTO
- SAFE-SEMI-BURST*/AUTO (short hold - BURST, long hold trigger AUTO)
- SAFE-BURST*-AUTO (SAFE by quickly switching modes, then: SAFE-SEMI-SAFE)
*BURST indicates batch shooting mode.
CYCLE DETECTION
The
TITAN™ control system can detect the exact position at which it should
end the cycle. As a result, even the shortest trigger squeeze will result in a
complete firing cycle (replicas without the TITAN™ system often
replicas without the TITAN™ system often jam when the trigger is held down too briefly if it does not complete the
the shot. TITAN™ eliminates this defect).
Thanks to this we get:
- Automatic BURST (batch) mode, there is no need to set the batch cycle time, just set how many rounds are to be fired
-
Automatic Pre-Cocking, which is available in any setting mode
fire selector: SEMI BURST and AUTO. So unlike normal
MOSFETs, you do not need to configure this function manually. Simply
set the spring pre-cocking power
- ALWAYS FULL CYCLE - when pre-cocking is off TITAN™
will make sure that the gearbox performs a full cycle and when the shot is fired, the spring
is sure to be released. This results in greater reliability
gearbox.
PRE-COCKING (gen.2*)
Because the
victory in a duel often depends on a fraction of a second, thanks to the
pre-cocking of the spring, we achieve a trigger response comparable to that of a
a real firearm. The spring is pre-tensioned, so
At the same time, we would like to warn you that the use of this mode on strong springs
springs leads to faster wear of internal parts of the replica.
There are two modes of using the PRE-COCKING function:
1. AUTO (-matic) mode - the spring is pre-tensioned after each shot
2. SMART mode - the spring is pre-tensioned by slowly depressing the trigger, and the shot is fired by quickly depressing it.
You can
three PRE-COCKING mode operation options can be programmed: HIGH / MID / LOW
- each will adjust the spring tension to a different degree
*The PRE-COCKING mode now works in all selector modes: SEMI, BURST, AUTO and does not require manual calibration
BURST (gen.2)
Mode
BURST, or programmable batch shooting, now only requires the selection of the
the number of balls to be fired (up to 10 balls / trigger pull). It is
very useful on any MILSIM or when using real/low -cap type magazines.
real/low -cap type magazines.
ROF CONTROL
Allows you to
Reduces the firing rate of the replica. This allows you to use
more powerful Li-Po batteries and still have a rate of fire compatible with the real weapon.
ROF STAB
Allows you to change the way ROF CONTROL works:
-.
ON - ROF Control regulates the speed of the cycle, making the Gearbox run
smoothly and reduces wear and tear on the replica's internal parts
- OFF -
RIF Control adds a pause between each shot to reduce the
rate of fire. This gives a very realistic feel
SNIPER DELAY
Allows you to
set a delay between each shot in SEMI mode to
simulate delay by reloading or recoil compensation. You can
set to: 0.5s, 1.0s, 2.0s, 3.0s
For a comprehensive description of all features, please visit the manufacturer's website: http://www.gatee.eu/
Full instructions can be found at the following link:
.
