GC1-46 carbine replica
- High Muzzle Velocity version Made of: Metal + Polymer Weight: 2665g Color: Black Length: 740-840mm Muzzle Velocity: ~400 FPS Type: AEG Manufacturer: G&G
The product does not constitute ballistic protection and has no other protective properties. It is not intended for use in protective purposes, including during tactical/war/ASG games.
The use of the product for ballistic protection and/or for other protective purposes, including the use during tactical/war/ASG games, is the use of the product contrary to its intended use, in which case the buyer does so solely at his own risk.
The vendor is not liable for damage to the product, that might result from the use of the product contrary to its intended purpose, this also applies to all possible health consequences (bodily harm) for the user (buyer) or damage to property. Moreover, a misuse of the product will void the warranty on the product.
The vendor is liable to the buyer under the warranty for product defects (in the event of such defects) only if the buyer/user uses the product for its intended purpose, i.e. for purposes other than protective purposes, including the use during tactical/war/ASG games.
The lack of any protective properties of the product is a feature, not a product defect, and therefore it does not constitute a physical defect of the product within the meaning of the Polish Civil Code.
GC1-46 carbine replica

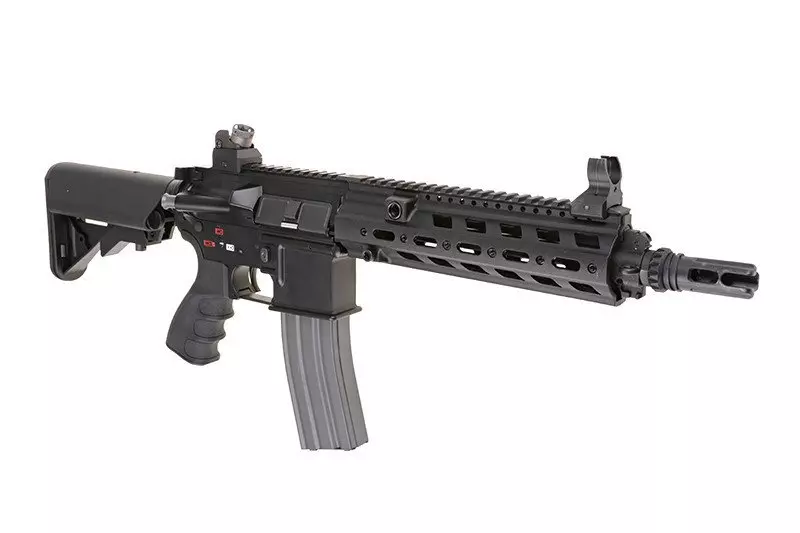

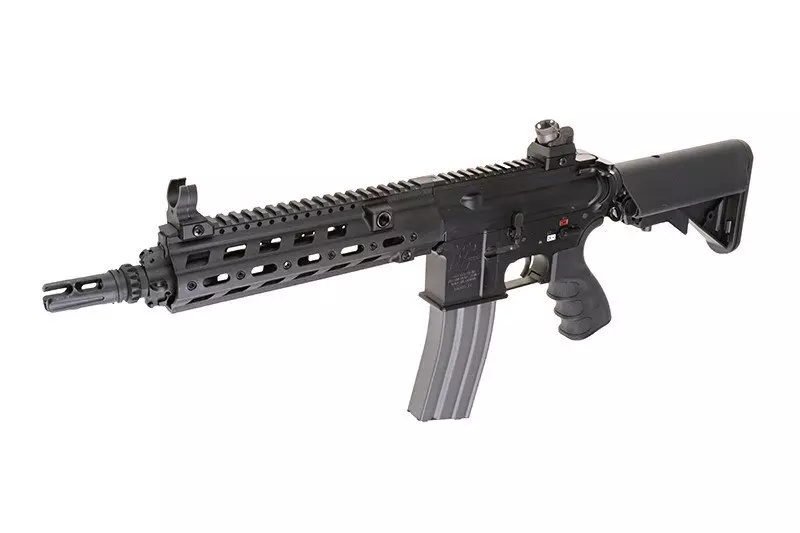

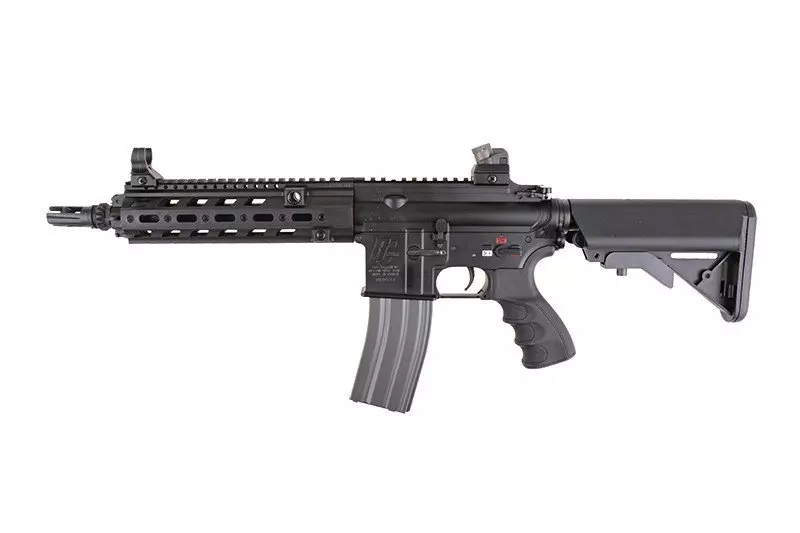

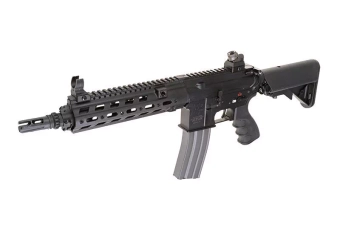

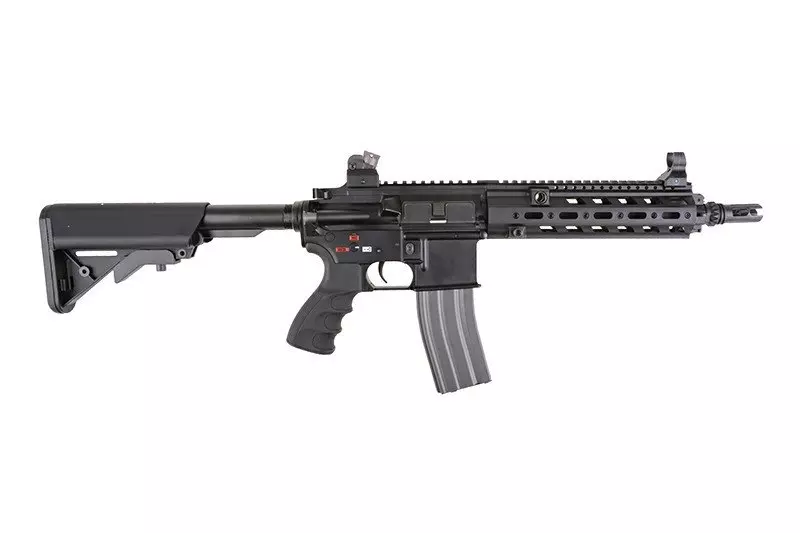

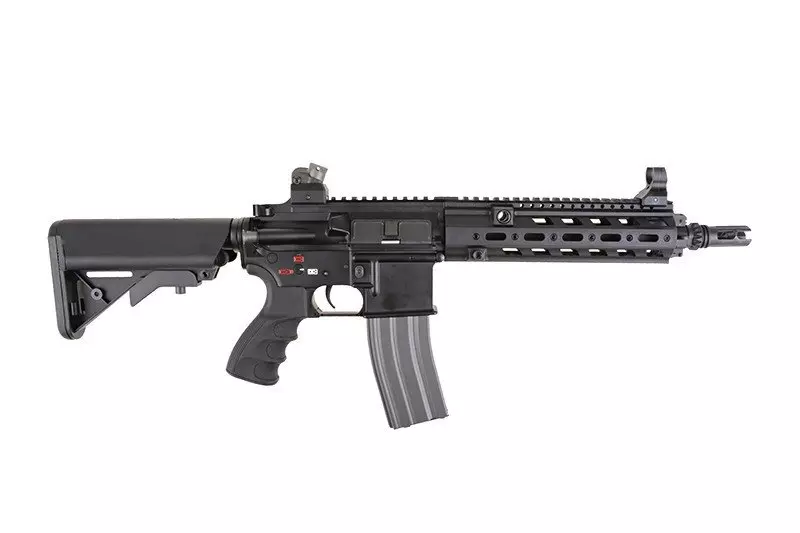

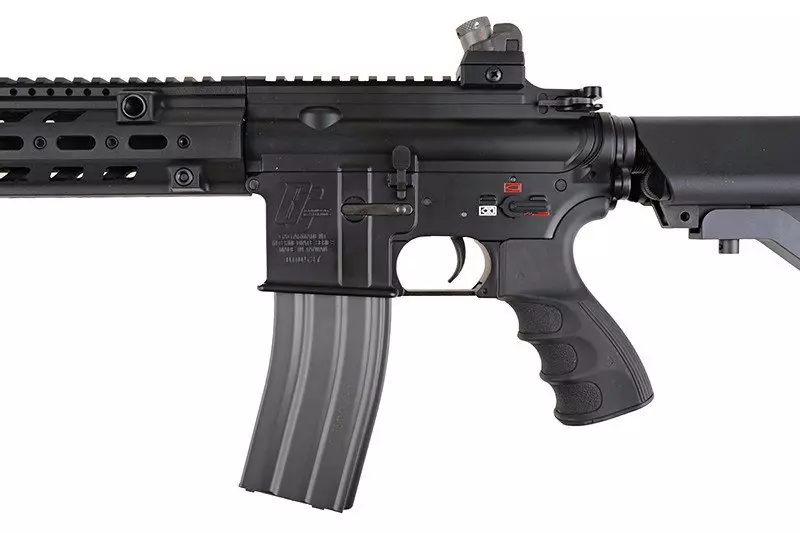

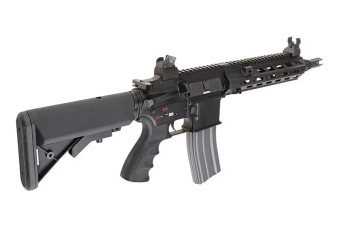

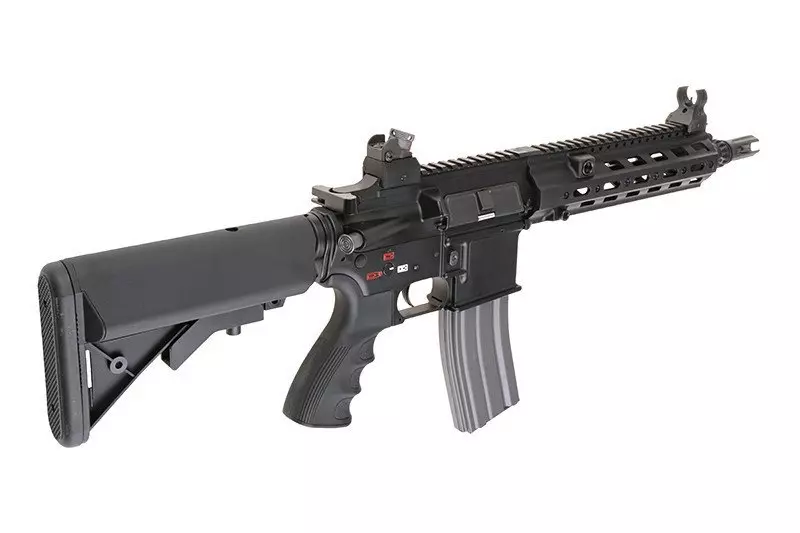

A carbine replica made from metal (including aluminum and steel) and polymer reinforced with fiberglass. The whole is perfectly fitted. The body, outer barrel, stock pipe, iron sights and most small elements are made from metal. The stock, pistol grip and front hand guard, flash hider and front RIS rails are made from polymer.

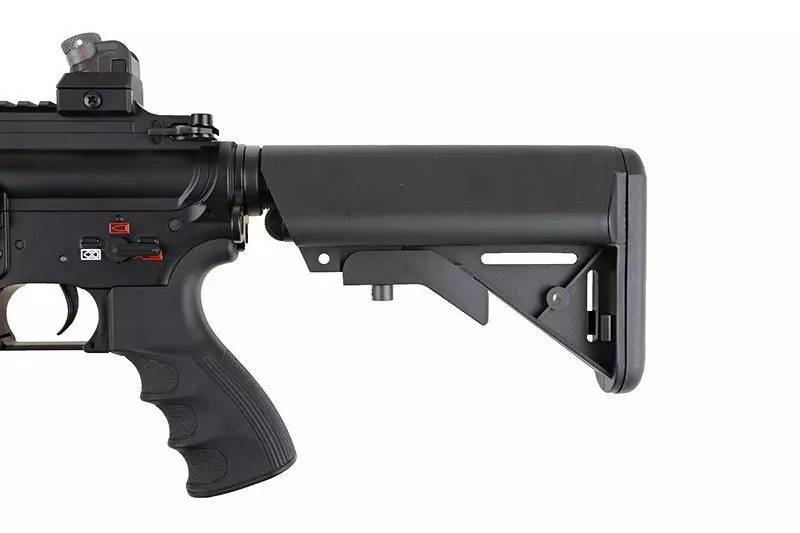

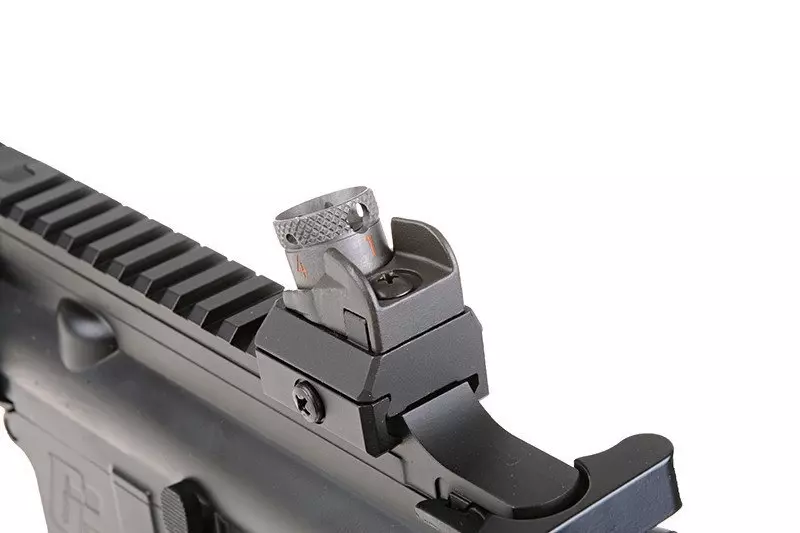

The replica features telescopic SF type stock which can be adjusted to meet shooter's preferences. The set includes metal HK style iron sights. The pistol grip is profiled to be comfortable to hold. The flash hider is attached to a 14mm CCW thread.

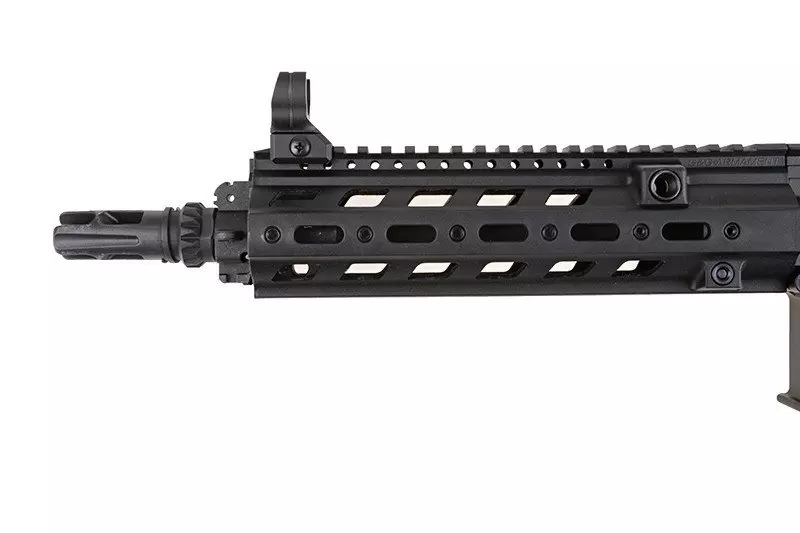

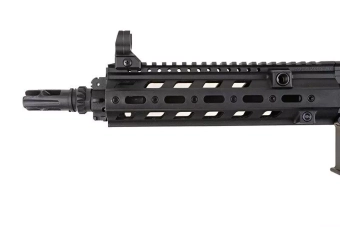

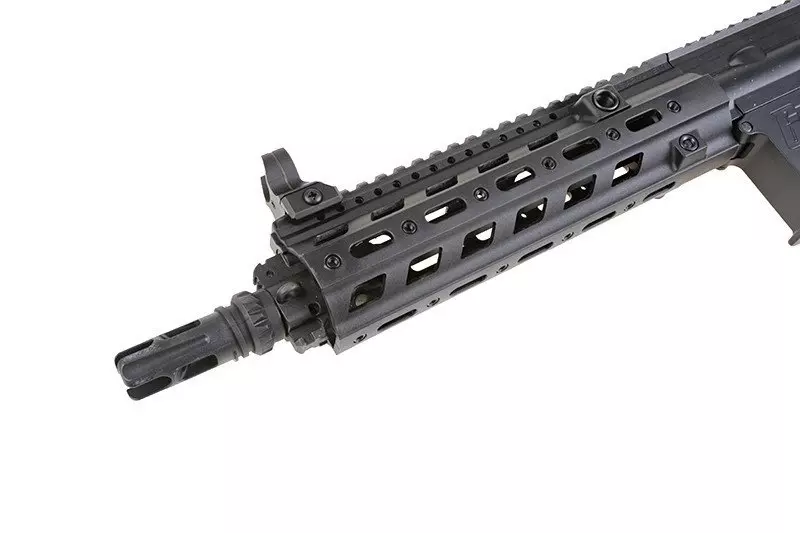

GC1-46 features 22mm RIS rail on top of the receiver and front hand guard and additional 3 rails for installation in any configuration. This complete conversion allows installation of various additional accessories, including aiming devices, tactical fore grips and flashlights, laser pointers etc. On the both sides of the front hand guard there are QD type tactical sling attachment points.
The replica uses the EBB (Electric Blow Back) system that simulates the recoil of the bolt and a quick spring change system. The replica features 8mm bearings based V.2 gearbox, equipped with brass cylinder head and aluminum piston head, which produces muzzle velocity of ~430 FPS straightly out of the box. It is a reinforced High Muzzle Velocity version of the standard gearbox. Thanks to that and 275mm long inner barrel the replica is a perfect choice for medium range engagements. Inside there is an air-tight pneumatic system with high quality hop-up chamber with bucking. The whole system is powered by 18000rpm High-torque motor.
The replica is sold with steel hi-cap type magazine with capacity of 450 bb's.
The set odes not include accumulator nor a charger.
The set includes:
-replica
-magazine
-3x side RIS rail
-cleaning rod
-user manual
-screwdriver
NiCd
rechargeable battery is characterized by high efficiency
current-carrying capacity, but there are disruptive effect on memory.
Should be unloaded and loaded in the full cycle, ie, it is recommended
to fully discharge, and after unloading must charge the battery
immediately without leaving it for a long time in a discharged state.
NiMH batteries have a higher self-discharge over time and shorten the
life - on the other hand, they earn about 30% more capacity.
Blow back is a simulation system of the cocking lever - it imitates the work of it as the equivalent sharp. This system raises the realism and adds a lot more experience during shooting.
It is the spped of bb, while its leaving the innerbarrel of replica. This speed is measured in FPS (Feet Per Second).
1 FPS = 0,3 m/s
1 J = 99 m/s
1 J = 326,7 FPS
Indications v2, v3, v6 does not mean the level of advance, but only shape of gearbox skeleton which was used and selected by the manufacturer depending on the capabilities of the body of the replica. For example, a models of the M4/M16 family, MP5, have a v2 gearbox, while the AK family have gearbox v3.
Hop-Up system is used for overclocking bb during the shot (putting it in rotation), through which, it extends its flight path. Acting laws of physics make that bb lift up, while the gravitational force take it down. Appropriate adjustment of Hop-Up, will compensate for these two factors, which result in long and straight flight for longer distance and be greater focus shot (to improve accuracy).
