GR14.B-Carbine Replica - Black
- Material: metal + plastic Weight: 3370g Length: 1120mm Muzzle Velocity: ~410 FPS Engine: electric Manufacturer: G&G
The product does not constitute ballistic protection and has no other protective properties. It is not intended for use in protective purposes, including during tactical/war/ASG games.
The use of the product for ballistic protection and/or for other protective purposes, including the use during tactical/war/ASG games, is the use of the product contrary to its intended use, in which case the buyer does so solely at his own risk.
The vendor is not liable for damage to the product, that might result from the use of the product contrary to its intended purpose, this also applies to all possible health consequences (bodily harm) for the user (buyer) or damage to property. Moreover, a misuse of the product will void the warranty on the product.
The vendor is liable to the buyer under the warranty for product defects (in the event of such defects) only if the buyer/user uses the product for its intended purpose, i.e. for purposes other than protective purposes, including the use during tactical/war/ASG games.
The lack of any protective properties of the product is a feature, not a product defect, and therefore it does not constitute a physical defect of the product within the meaning of the Polish Civil Code.

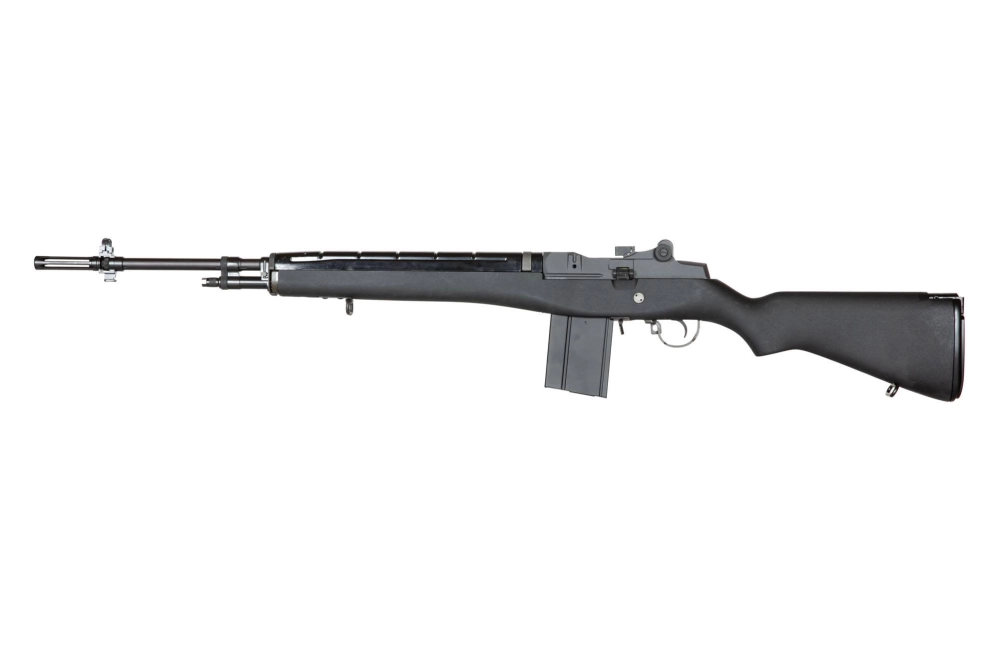

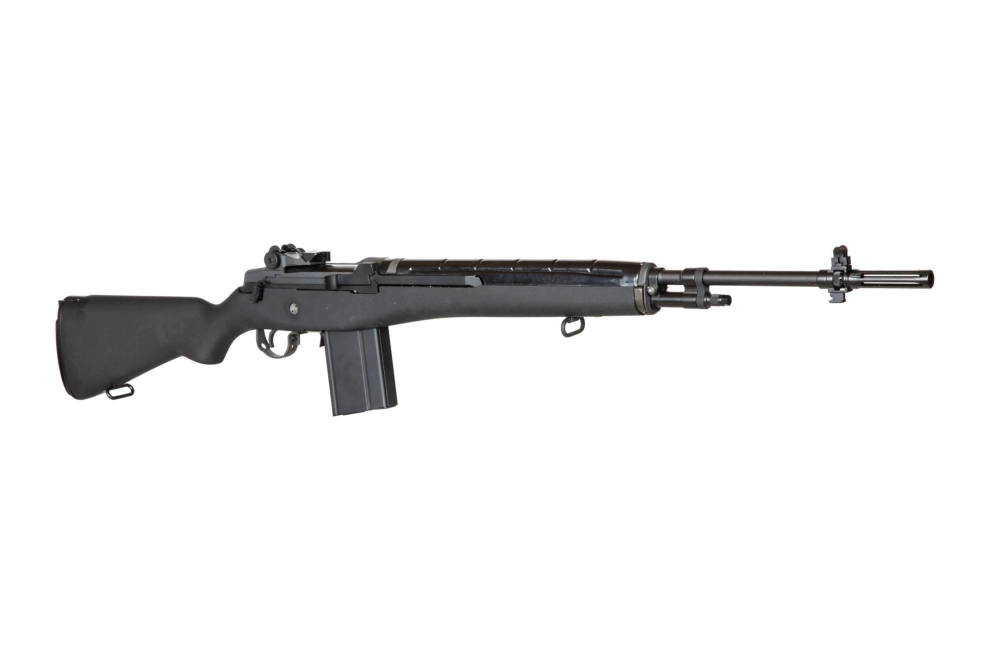

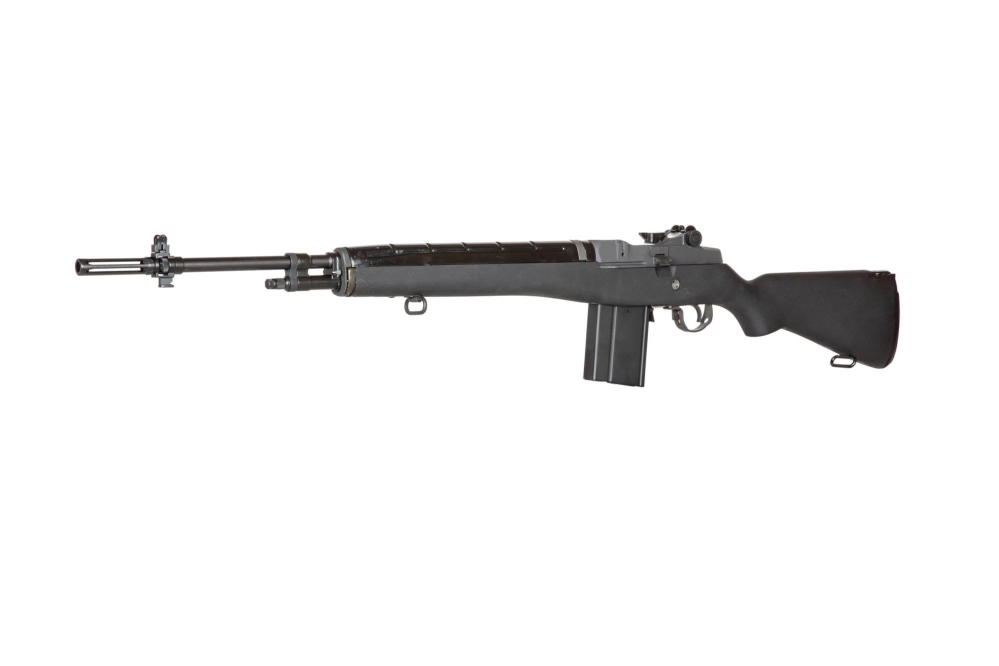

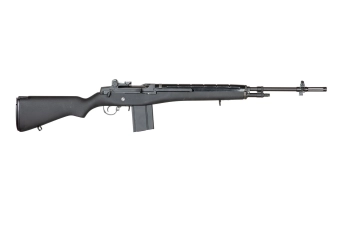

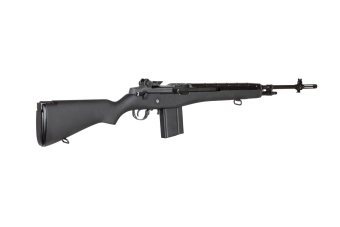

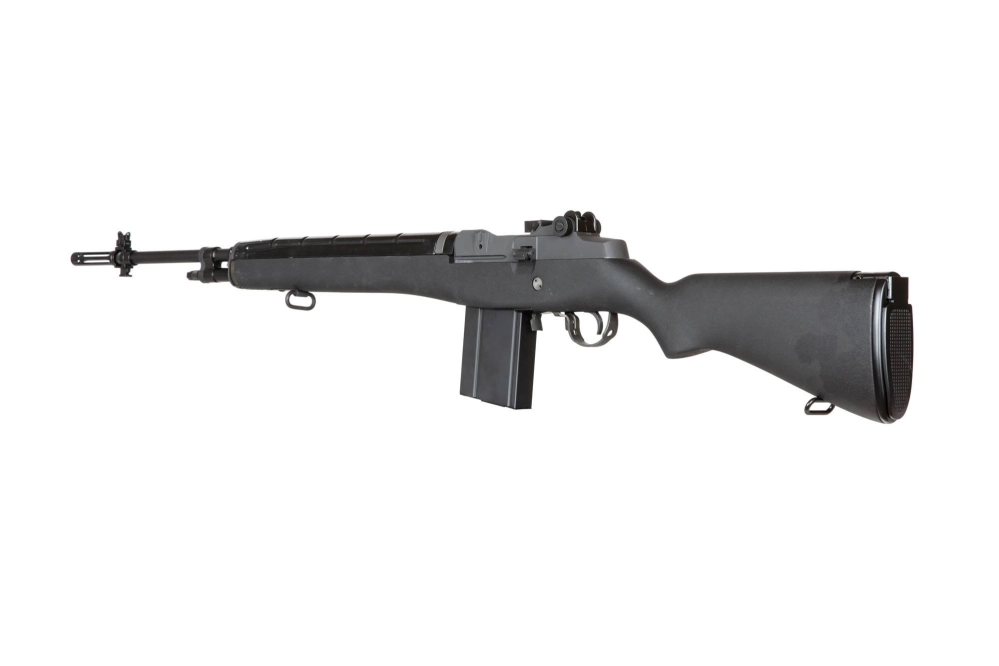

GR14.B Carbine Replica

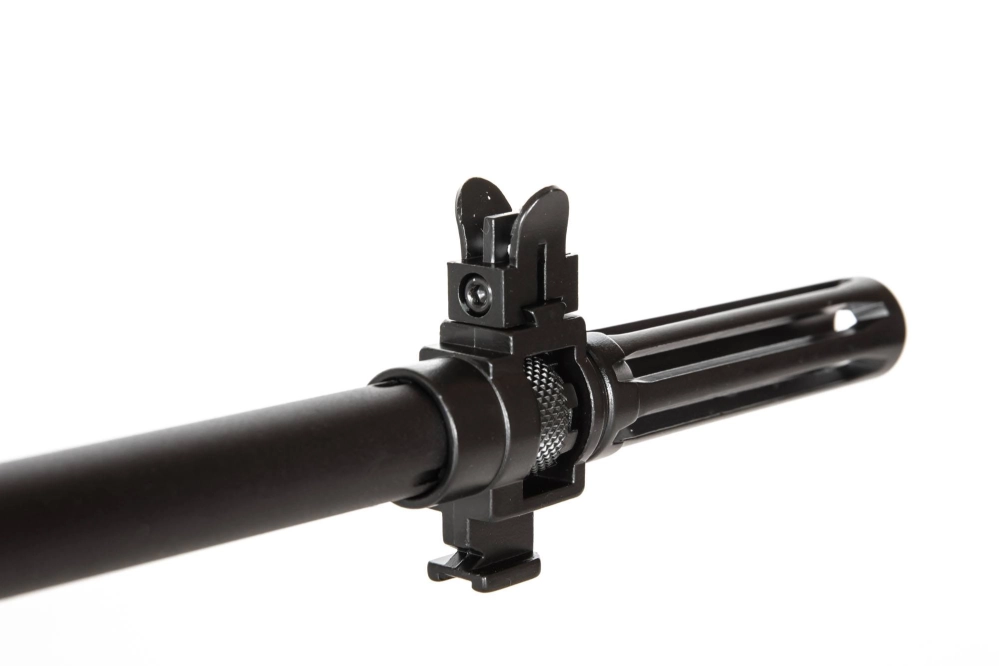

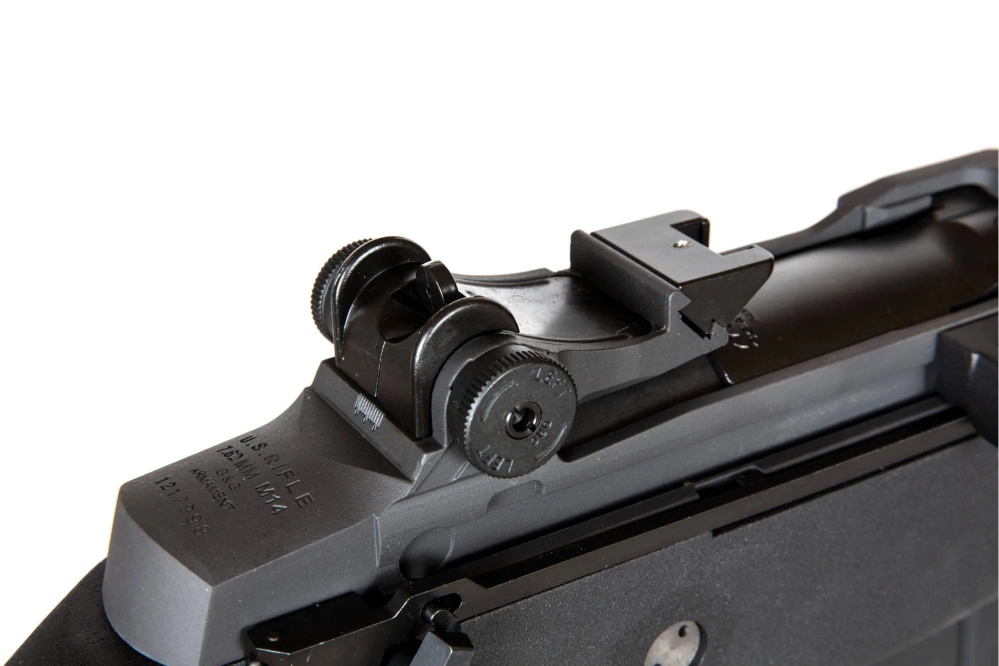

The replica is made out of metal and plastic. The handguard with the stock are made out of plastic. Small elements such as the screws or pins, bail, suspension handles and the magazine are made out of steel. Other elements such as the lock, outer and inner barrel and the sights are made of metal. The GR14.B version was additionally fitted with the ETU (Electronic Trigger Unit) system. The handguard is made out of a rough material and it lies perfectly in the hand. The Hop-up adjustment knob is located under the slide after pulling it back. The aperture sight is horizontally adjustable. The battery is housed in the stock. The manufacturer recommends a 9.6 V battery with a Tamiya large plug for this model. The set includes a Hi-cap magazine with a capacity of 450 BBs.
Features of the replica:
-Built-in 6.04mm inner barrel with a length of 45CM!
-Gearbox V7 with 8mm ball bearings.
-High muzzle velocity edition, giving ~ 400-410 FPS straight out of the box.
-Built-in ETU (Electronic Trigger Unit)
Note! The set does not include a battery or a charger.
- replica
- Hi-Cap magazine (450 BBs)
Blow back is a simulation system of the cocking lever - it imitates the work of it as the equivalent sharp. This system raises the realism and adds a lot more experience during shooting.
It is the spped of bb, while its leaving the innerbarrel of replica. This speed is measured in FPS (Feet Per Second).
1 FPS = 0,3 m/s
1 J = 99 m/s
1 J = 326,7 FPS
Indications v2, v3, v6 does not mean the level of advance, but only shape of gearbox skeleton which was used and selected by the manufacturer depending on the capabilities of the body of the replica. For example, a models of the M4/M16 family, MP5, have a v2 gearbox, while the AK family have gearbox v3.
Hop-Up system is used for overclocking bb during the shot (putting it in rotation), through which, it extends its flight path. Acting laws of physics make that bb lift up, while the gravitational force take it down. Appropriate adjustment of Hop-Up, will compensate for these two factors, which result in long and straight flight for longer distance and be greater focus shot (to improve accuracy).
