Redox Alpha V2 microprocessor battery charger
- Redox Alpha V2 charger
- Dimensions: 134 x 86 x 26 mm
- Supported batteries: NiCd/NiMH, LiPo, LiFe, LiIon,Pb
- Weight (without the wiring): 400g
- Manufacturer: Redox
The product does not constitute ballistic protection and has no other protective properties. It is not intended for use in protective purposes, including during tactical/war/ASG games.
The use of the product for ballistic protection and/or for other protective purposes, including the use during tactical/war/ASG games, is the use of the product contrary to its intended use, in which case the buyer does so solely at his own risk.
The vendor is not liable for damage to the product, that might result from the use of the product contrary to its intended purpose, this also applies to all possible health consequences (bodily harm) for the user (buyer) or damage to property. Moreover, a misuse of the product will void the warranty on the product.
The vendor is liable to the buyer under the warranty for product defects (in the event of such defects) only if the buyer/user uses the product for its intended purpose, i.e. for purposes other than protective purposes, including the use during tactical/war/ASG games.
The lack of any protective properties of the product is a feature, not a product defect, and therefore it does not constitute a physical defect of the product within the meaning of the Polish Civil Code.

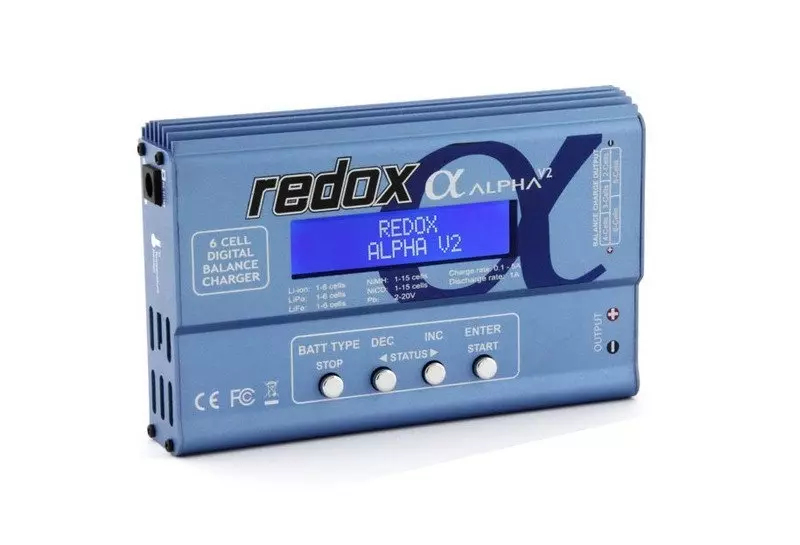

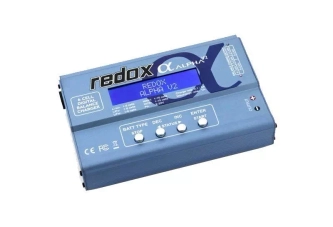

Redox Alpha V2 microprocessor battery charger
A new improved version of the popular Redox company’s Alpha charger. The Redox Alpha V2 is inter alia equipped with an actualized software ensuring a long and stable operation of the device. Additionally, a big radiator which discharges the heat very efficiently was mounted on the top of the charger. It is possible to change the charging current of the charger and to monitor the voltage of each cell while the process of charging!
Characteristics
Dimensions: 134 x 86 x 26 mm
Operational voltage: DC 11.0~18.0 V
Output power:
- Maximum charging power 50W
- Maximum discharging power 5W
Charging current: 0.1~5.0A
Discharging current: 0.1~1.0A
Balancing current intensity : 300 mAh/cell
Number of supported NiCD/NiMH cells: 1~15 cells
Number of supported Li-Po/Fe/Ion cells: 1~6 cells
Supported Pb cells : 2~20V
Weight (without wiring): 400 g
Charger’s inbuilt memory: maximum of 5 battery packs
Battery pack cycling function
4 programming buttons
Inbuilt sockets:
- balancer sockets 2s, 3s, 4s, 5s, 6s ,
- Gold 4 mm sockets,
- Jack type socket (powered by 12V DC) ,
- an optional temperature sensor socket,
The set includes:
the Redox Alpha V2 charger,
a 12V DC power wire (Jack - crocodiles),
1 x Gold 4 mm Adapter - DEAN plug,
Additional extending adapters for the Gold 4 mm adapter - DEAN plugs:
1 x DEAN adapter plug - Crocodiles
1 x DEAN adapter plug – Servo socket (FUTABA type)
1 x DEAN adapter plug – spark plug dummy (for charging 1,5V clips)
1 x DEAN adapter plug – Tamiya Large
Charger without power cable The power cable must be purchased separately.
