Redox GAMMA BLUE Charger
- Multiprocessor charger with a balancer and a touchscreen display
- Weight: 440 g
- Manufacturer: Redox
The product does not constitute ballistic protection and has no other protective properties. It is not intended for use in protective purposes, including during tactical/war/ASG games.
The use of the product for ballistic protection and/or for other protective purposes, including the use during tactical/war/ASG games, is the use of the product contrary to its intended use, in which case the buyer does so solely at his own risk.
The vendor is not liable for damage to the product, that might result from the use of the product contrary to its intended purpose, this also applies to all possible health consequences (bodily harm) for the user (buyer) or damage to property. Moreover, a misuse of the product will void the warranty on the product.
The vendor is liable to the buyer under the warranty for product defects (in the event of such defects) only if the buyer/user uses the product for its intended purpose, i.e. for purposes other than protective purposes, including the use during tactical/war/ASG games.
The lack of any protective properties of the product is a feature, not a product defect, and therefore it does not constitute a physical defect of the product within the meaning of the Polish Civil Code.
Redox GAMMA Charger
A highest-quality microprocessor charger with a balancer as well as a built-in
power supply by Redox. An extremely universal and functional device - it allows
to charge all battery types (LiIon, LiPo, LiFe,
Ni-Cd, Ni-MH, PB) utilizing many charging and discharging parameters. The box
contains a set of adapters and cables for charging of packs. Equipped with an
advanced software and a large touchscreen display.
The broad software of Gamma Black charger allows for a precise control over
current battery parameters: the resistance of cells within a pack, voltage or
the charge level. Thanks to the possibility of high-voltage charging (10 A) and
discharging (max. 2 A), it is useful for charging of large packs.
Charger Operation Parameters:
- Compatible battery types: LiPo (1 - 6 s), LiIon (1 - 6 s) LiFe (1 - 6 s),
NiMH (1 - 18 s), NiCD (1 - 18 s), Pb
(2 - 24 V), SMART I / II / III
- Max charging current: 10 A
- Max discharge current: 2 A
- Balance current: 0.4 A
- Input Voltage: 12 V (external power source) or 230 V (built-in power supply)
Main Functions:
- Compatible with all battery types available on the market: LiPo (1 - 6 s), LiIon (1 - 6 s) LiFe (1 - 6 s), NiMH (1 - 18 s), NiCD
(1 - 18 s), Pb (2 - 24 V), SMART
- Charging of batteries max 0.1 - 10 A, discharging max 0.1 - 2 A
- Max charging current - 100 W, discharging - 10 W
- Built-in power supply 230 V 50 Hz enabling the operation after being plugged
to an electric socket
- LCD touchscreen display with an adjustable contrast and 128x64 resolution
- Functional and very simple to use, intuitive, based on a symbolic graphical iconic menu
- Active cooling system - dynamically reacting fan that diverts excess of heat
from the inside of the charger
- Current charger function (5.0 - 27.0 V)
- Monitor of key parameters of batteries
- resistance meter, charge level meter, voltmeter
- Independently operating lithium battery balancer - operates at three
programmable speeds
- Set of essential adapters and service sockets for cell balancing
- Active meter of the temperature inside the charger and the charged
pack
- Array of safety systems: against
reverse polarization, overvoltage, overheating, being left without supervision
- Terminate Voltage Control (TVC) system - extensive voltage limit
configuration menu for every battery type and operation type

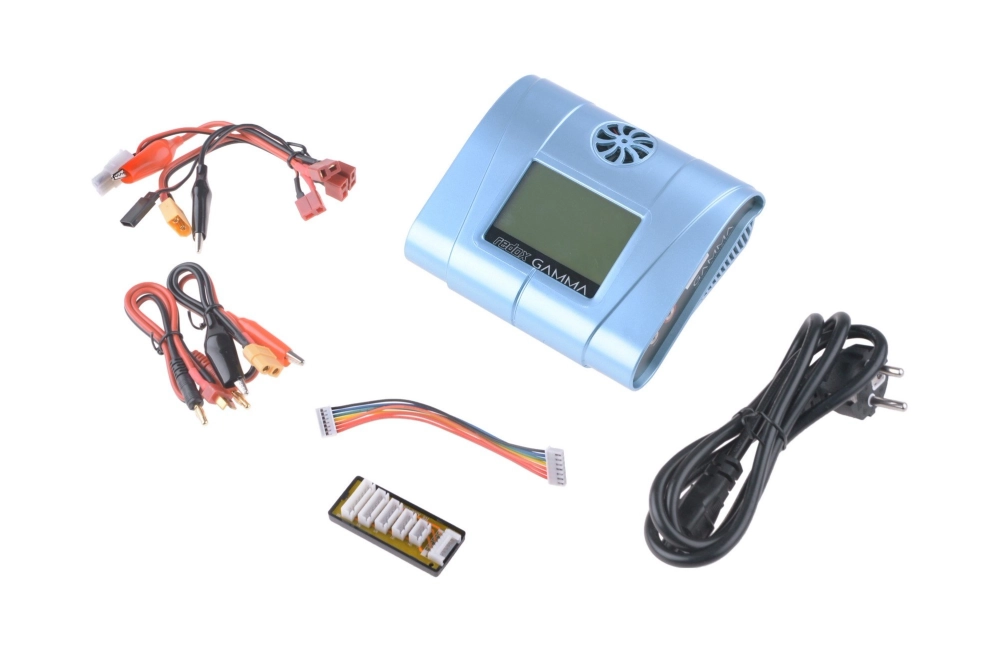

The set includes:
- Gamma
Redox charger
- power supply
- adapter with a passthrough for balancer
ports
- adapter for charging of battery packs
- adapter for connecting the charger to a battery (GOLD 4 mm port -
Crocodile clips)
