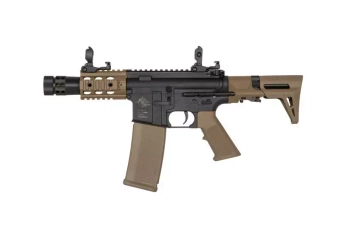

SA-C10 PDW CORE™ carbine replica - Half-Tan
- Brand: Specna Arms
- color: Half-Tan
- weight [g]: 2230
- made from: Metal, Polymer
- muzzle velocity [FPS]: 330
The product does not constitute ballistic protection and has no other protective properties. It is not intended for use in protective purposes, including during tactical/war/ASG games.
The use of the product for ballistic protection and/or for other protective purposes, including the use during tactical/war/ASG games, is the use of the product contrary to its intended use, in which case the buyer does so solely at his own risk.
The vendor is not liable for damage to the product, that might result from the use of the product contrary to its intended purpose, this also applies to all possible health consequences (bodily harm) for the user (buyer) or damage to property. Moreover, a misuse of the product will void the warranty on the product.
The vendor is liable to the buyer under the warranty for product defects (in the event of such defects) only if the buyer/user uses the product for its intended purpose, i.e. for purposes other than protective purposes, including the use during tactical/war/ASG games.
The lack of any protective properties of the product is a feature, not a product defect, and therefore it does not constitute a physical defect of the product within the meaning of the Polish Civil Code.

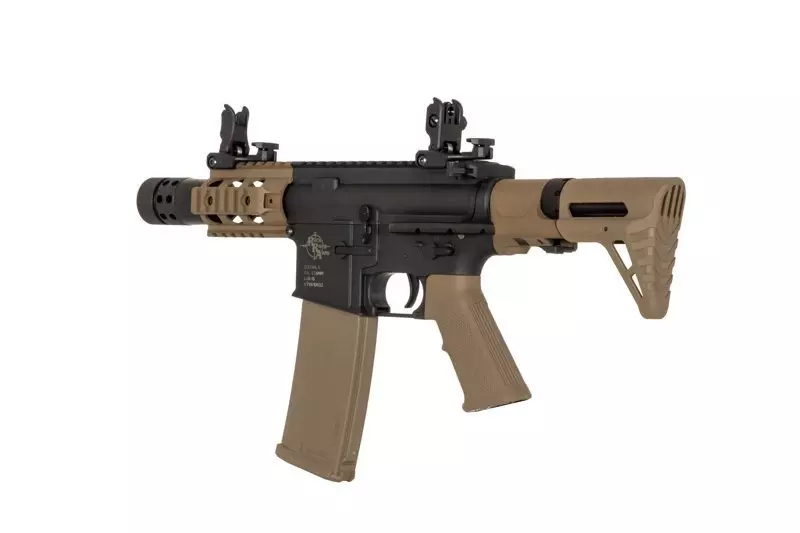

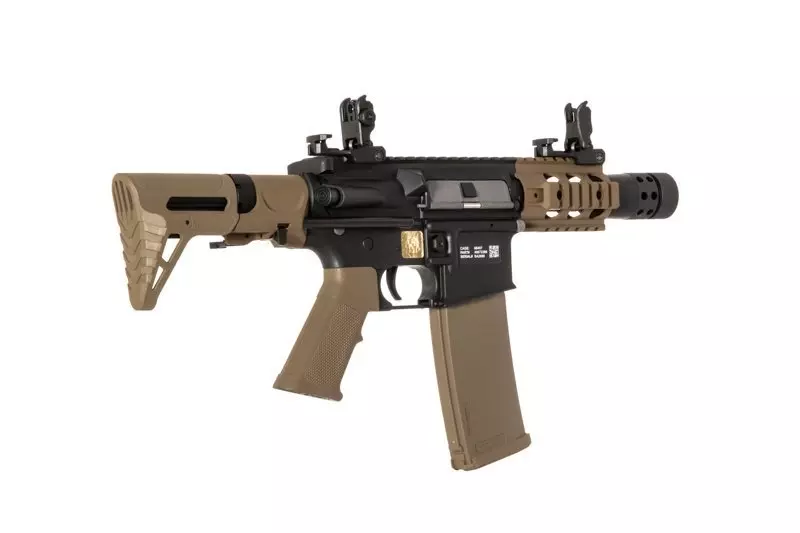

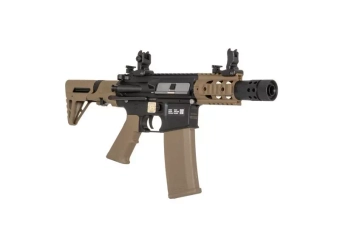

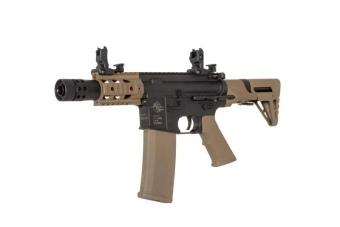

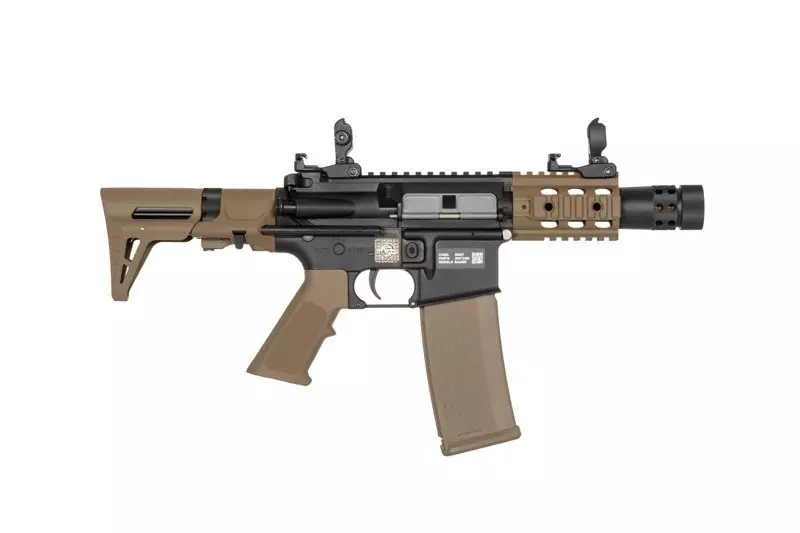

RRA SA-C10 PDW CORE™ carbine replica
Specna Arms meeting customers' expectations presents the CORE™ line - a unique series of replicas that introduces a new quality in the market. Atractive price combined with innovative spring replacement system and high quality materials makes this series for both beginners and seasoned airsoft players.

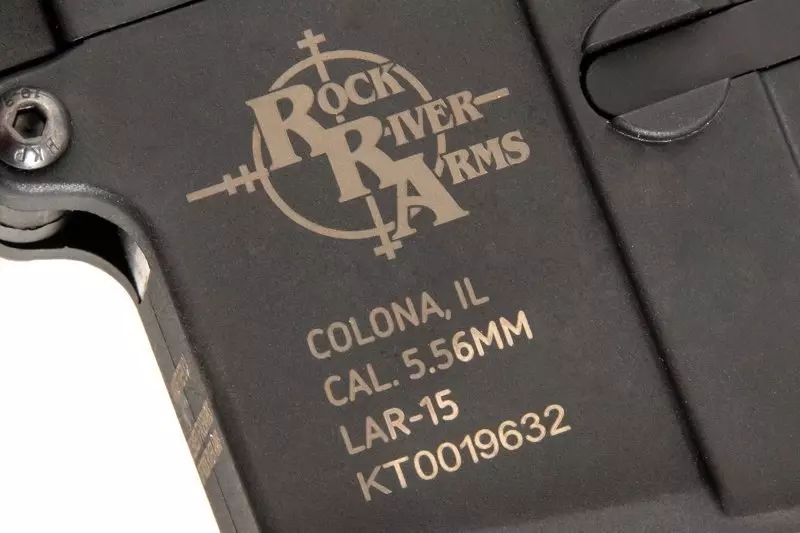

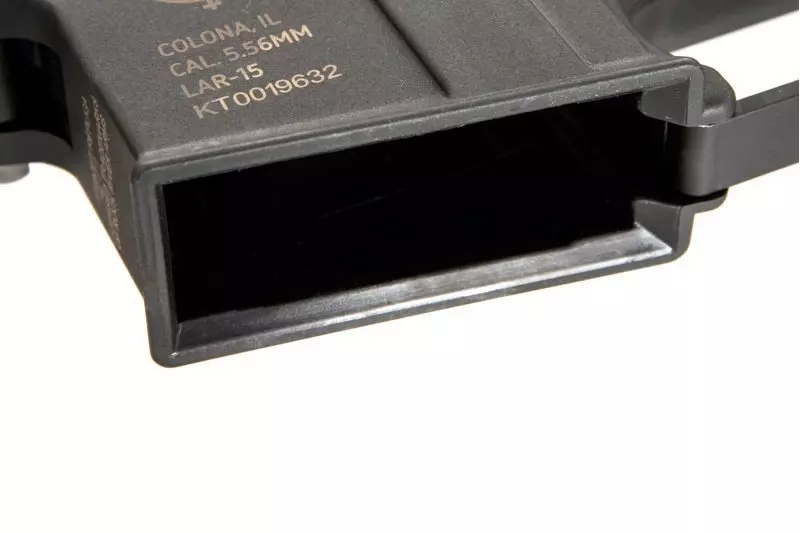

The body, the foot of the flask as well as the pistol grip are manufactured from nylon fibre-reinforced polymer plastic. Other components such as e.g. the barrel, RIS front, flame suppressor, enlarged reloading handle and tactical suspension assembly are made of metal (all screws, pins, shell ejection window, guide rails flask and dummy lock are made of steel). Markings and serial number are marked on the body.
The rifle has been very well-fitted the user will not experience any play between the lower and upper parts of the body. The use of a body made of lightweight material has made it possible to reduce weight, making it perfect for dynamic games or long-lasting milsim. What's more, the fibreglass reinforcement also makes the body more durable than polymer and metal bodies.

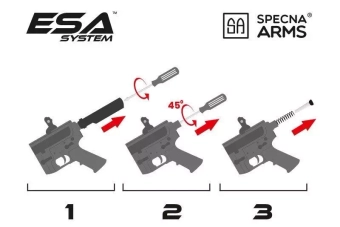

The replica uses the quick-change spring system, ESA™. This allows quick and efficient adjustment of the replica's power to the conditions expected on the field of play without the need for access to a workshop or a number of specialised tools - simply unscrew the flask guide to reveal access to exchange the spring without having to pull out, or disassemble the gearbox.
The advantages of the system ESA™ are difficult to overestimate. In the light of the arrangements that exist within the environments themselves, this system guarantees the user considerable possibilities and a great deal of freedom. The ESA™ system allows minimal time to replace the mainspring and thus to adapt the replica's discharge velocity to the area of play so as to guarantee an ideal compromise between the effectiveness of the fire and the safety of oneself and other players.
The replica has been fully adapted to work with batteries of the types LiPo and LiFe. With a base initial discharge velocity of the order of ~330 FPS guaranteed by the pre-installed mainspring, the replica is perfectly suited for medium range operations. An M90-type spring is also included, which allows to reduce the initial velocity to ~260 FPS thus making the replica perfectly suited for short-range or indoor operations.
The gearbox conceals 8-millimetre slide bearings and the supported steel gears mounted on them. The system is secured by four anti-reverse pawls. The lightweight, polycarbonate plastic piston is fitted with a full steel bar increasing its strength. It also uses type 0 cylinder and steel interrupter, as well as a precision rotary hop-up chamber. The strength of the parts allows it to work with M140 springs.
The finely crafted Rotary Hop-Up chamber works perfectly with the high-quality 6.03mm precision barrel. The use of a precision barrel has a positive effect on the range and accuracy of the replica. It is important to remember to use high quality 6mm ammunition.

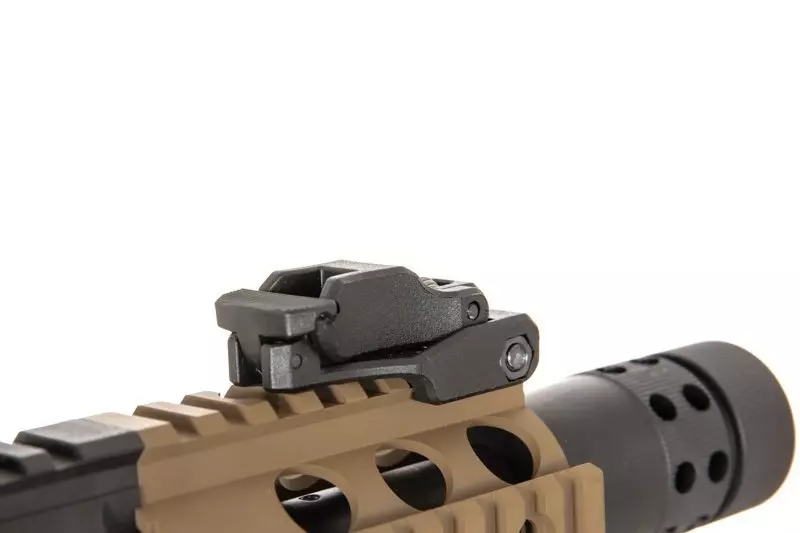

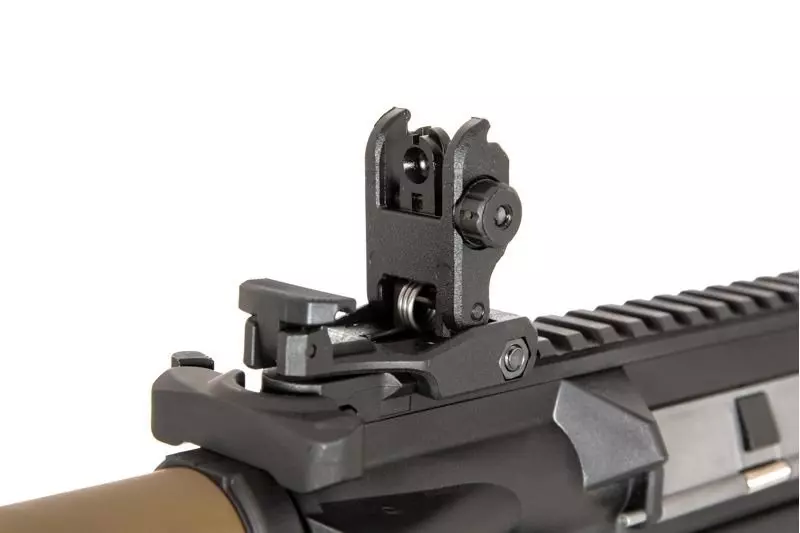

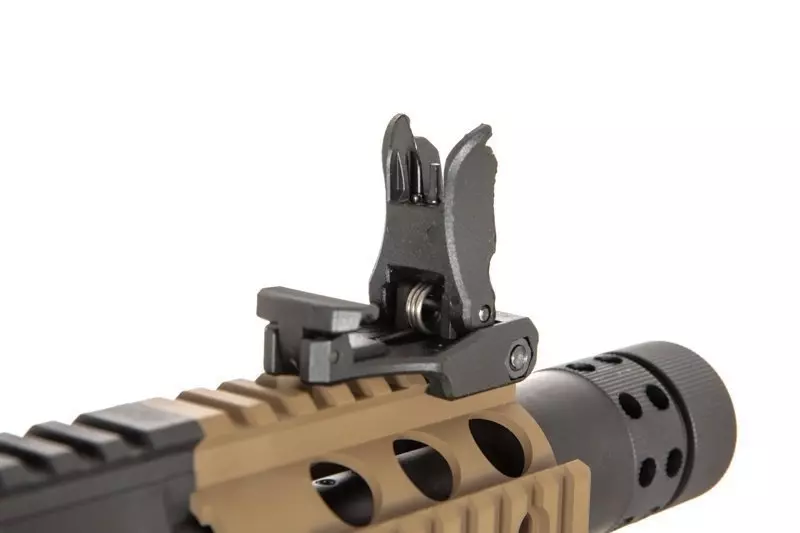

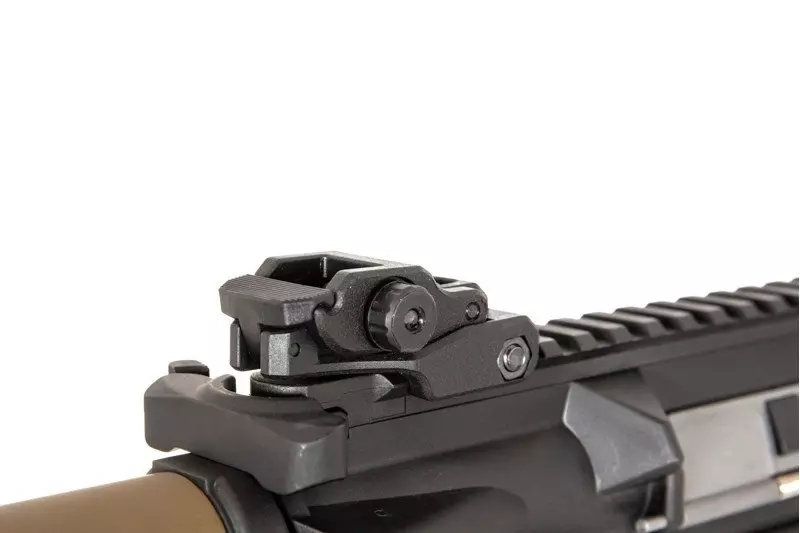

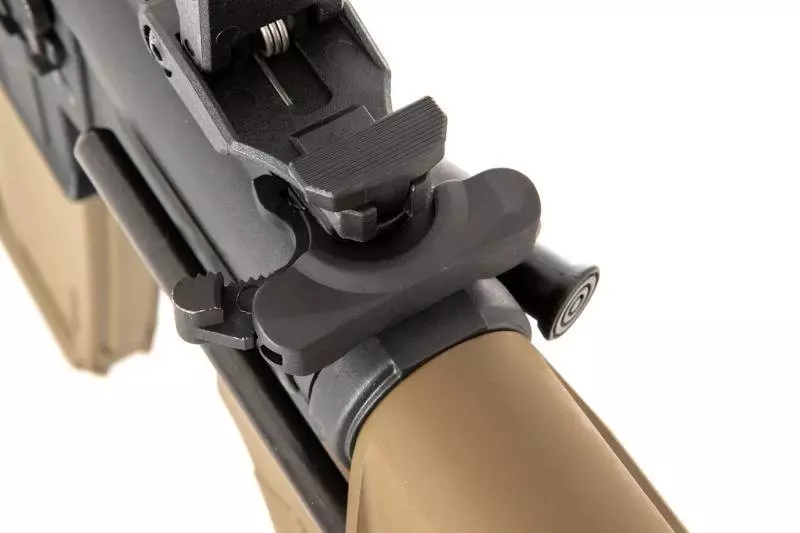

The replica has been fitted with a 22mm dorsal RIS rail, a set of front RIS rails and an adjustable buttstock. A folding sight has been fitted on the upper RIS rail, which does not interfere with optoelectronic sighting devices. Thanks to the extendable buttstock finished with a foot with an anti-slip texture, it is possible to adjust the length of the replica to the build and preferences of the shooter. The standard flame suppressor is mounted on a 14-mm left-hand thread, which makes it possible to attach a sound suppressor in its place.

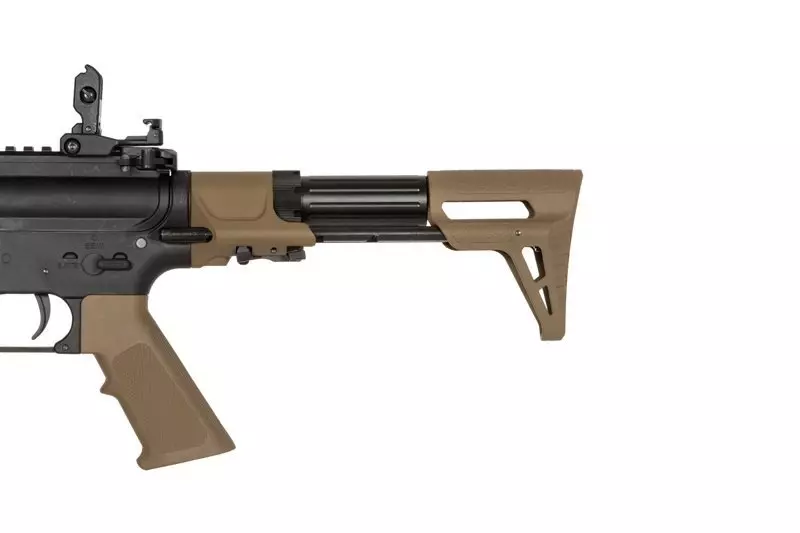

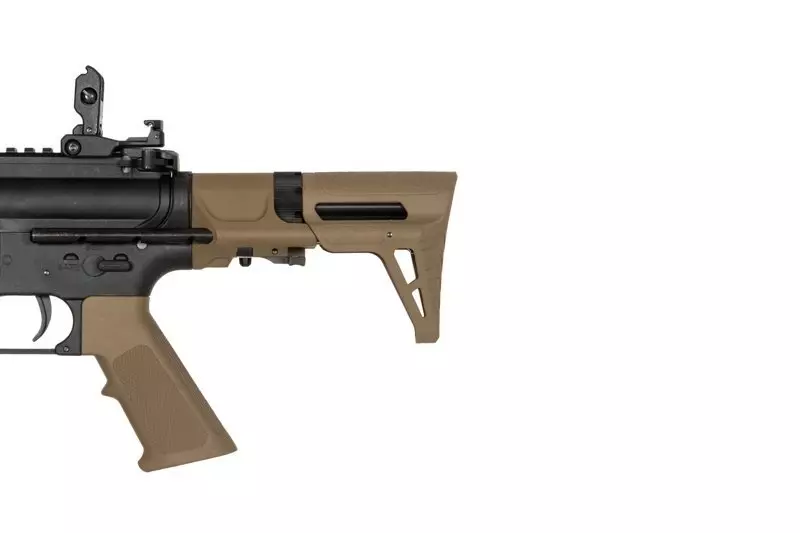

PDW version is equipped with a telescopic flask made entirely of metal - apart from a polymer foot with a non-slip texture. The battery compartment is located inside the dummy buffer tube. A LiPo battery with maximum dimensions 12x17x75mm will fit into the dummy buffer tube. 12x17x75mm.
There are dedicated Specna Arms EDGE PDW replica 7.4V and 11.1V LiPo batteries available:
An adapter is required for proper operation, such as: https://gunfire.com/pl/products/przejsciowka-do-akumulatora-t-connect-tamiya-mala-1152219041.html
The kit includes a hi-cap S-MAG magazine with a capacity of up to 380 rounds. The S-MAG is an exclusive polymer magazine designed by Specna Arms. What draws attention is the distinctive texture composed of Specna Arms logos. The S-mag ensures trouble-free ball feeding, even at high ROF.

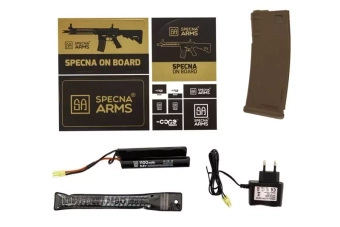

Package include:
- S-Mag Hi-Cap Magazine
- QC certificate
- Instruction
- Replica
- M90 additional spring
Package exclude:
- The set does not include the battery nor charger
NiCd
rechargeable battery is characterized by high efficiency
current-carrying capacity, but there are disruptive effect on memory.
Should be unloaded and loaded in the full cycle, ie, it is recommended
to fully discharge, and after unloading must charge the battery
immediately without leaving it for a long time in a discharged state.
NiMH batteries have a higher self-discharge over time and shorten the
life - on the other hand, they earn about 30% more capacity.
Blow back is a simulation system of the cocking lever - it imitates the work of it as the equivalent sharp. This system raises the realism and adds a lot more experience during shooting.
It is the spped of bb, while its leaving the innerbarrel of replica. This speed is measured in FPS (Feet Per Second).
1 FPS = 0,3 m/s
1 J = 99 m/s
1 J = 326,7 FPS
Indications v2, v3, v6 does not mean the level of advance, but only shape of gearbox skeleton which was used and selected by the manufacturer depending on the capabilities of the body of the replica. For example, a models of the M4/M16 family, MP5, have a v2 gearbox, while the AK family have gearbox v3.
Hop-Up system is used for overclocking bb during the shot (putting it in rotation), through which, it extends its flight path. Acting laws of physics make that bb lift up, while the gravitational force take it down. Appropriate adjustment of Hop-Up, will compensate for these two factors, which result in long and straight flight for longer distance and be greater focus shot (to improve accuracy).
