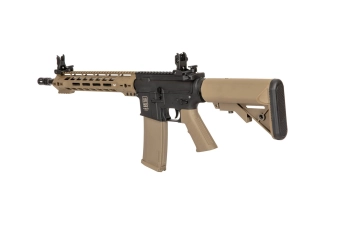

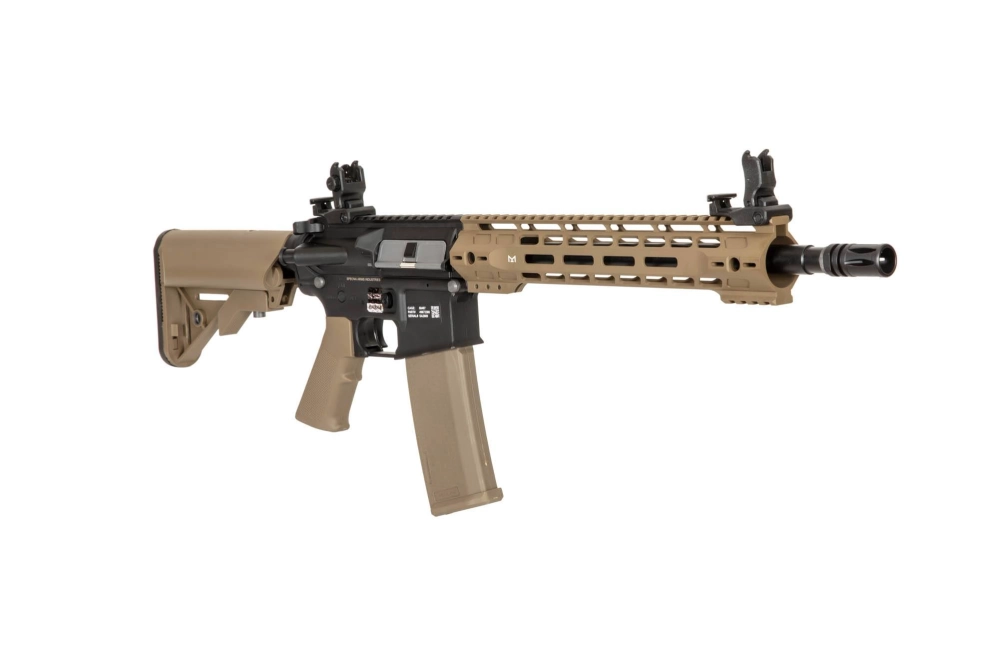

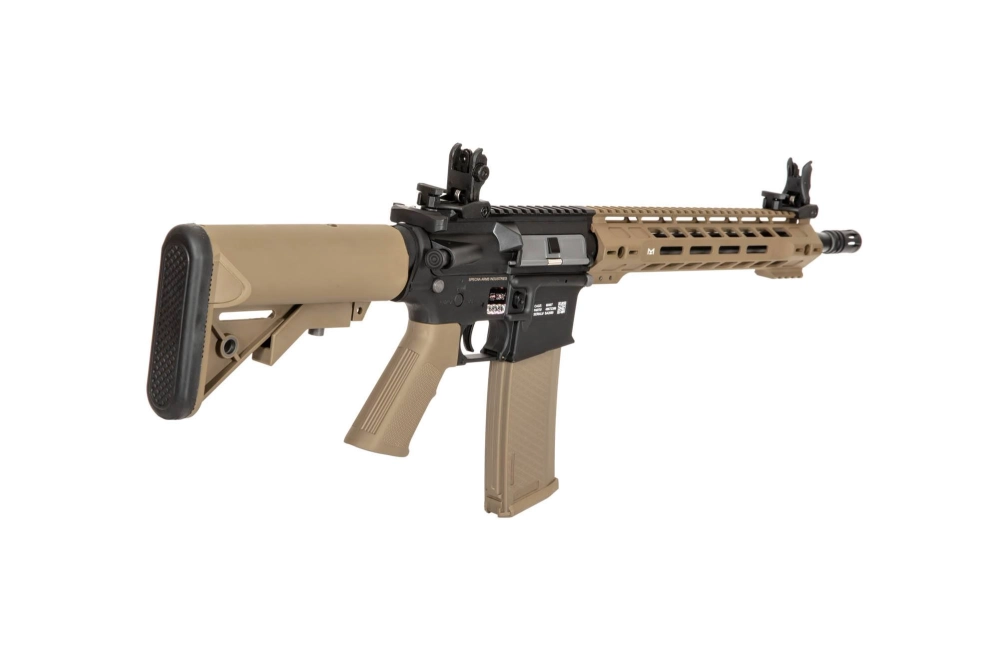

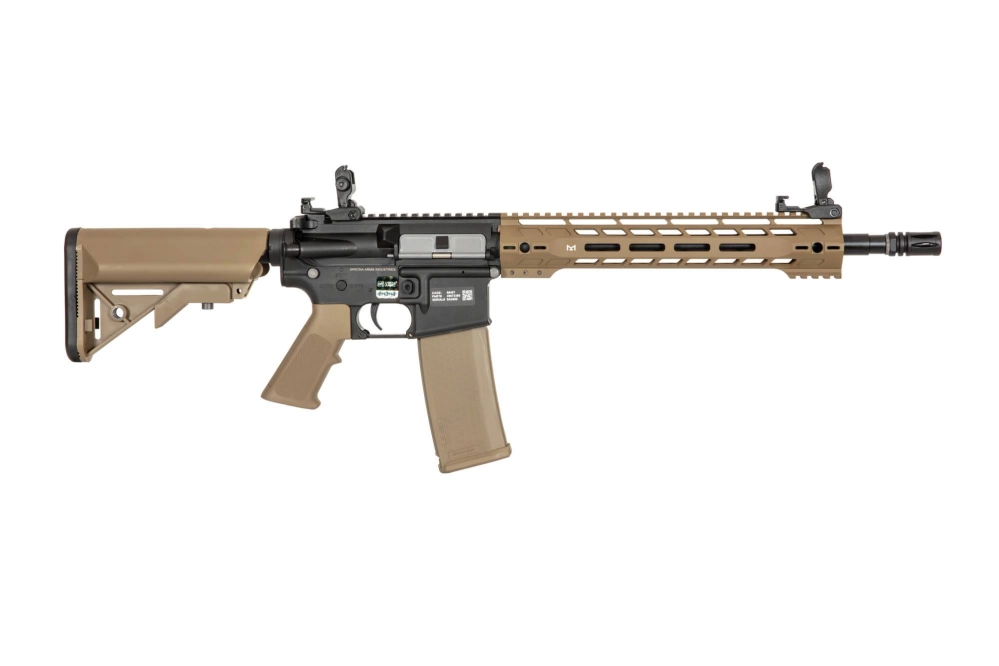

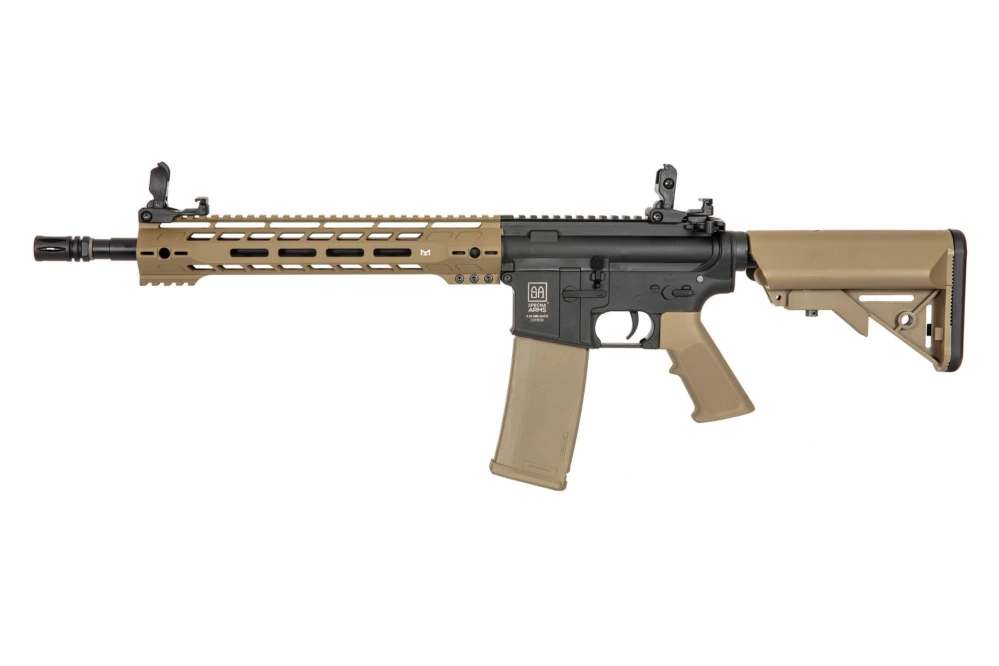

SA-C14 CORE™ X-ASR™ Carbine Replica - Half-Tan
- Material: polymer + ZnAl + steel Length: 800 - 880 mm Weight: 2485 g Color: Half-Tan Muzzle Velocity: ~380 / ~310 FPS Built-in GATE X-ASR™ MOSFET ESA™ Quick Spring Exchange System 6.03 mm Precision Barrel Manufacturer: Specna Arms
The product does not constitute ballistic protection and has no other protective properties. It is not intended for use in protective purposes, including during tactical/war/ASG games.
The use of the product for ballistic protection and/or for other protective purposes, including the use during tactical/war/ASG games, is the use of the product contrary to its intended use, in which case the buyer does so solely at his own risk.
The vendor is not liable for damage to the product, that might result from the use of the product contrary to its intended purpose, this also applies to all possible health consequences (bodily harm) for the user (buyer) or damage to property. Moreover, a misuse of the product will void the warranty on the product.
The vendor is liable to the buyer under the warranty for product defects (in the event of such defects) only if the buyer/user uses the product for its intended purpose, i.e. for purposes other than protective purposes, including the use during tactical/war/ASG games.
The lack of any protective properties of the product is a feature, not a product defect, and therefore it does not constitute a physical defect of the product within the meaning of the Polish Civil Code.
Specna Arms meets the expectations of clients by presenting the CORE™ line of products - an exceptional series of replicas that introduces a new quality to the market. An attractive price in combination with an innovative spring change system as well as high-quality materials make this replica suitable for beginners and seasoned airsoft players alike.

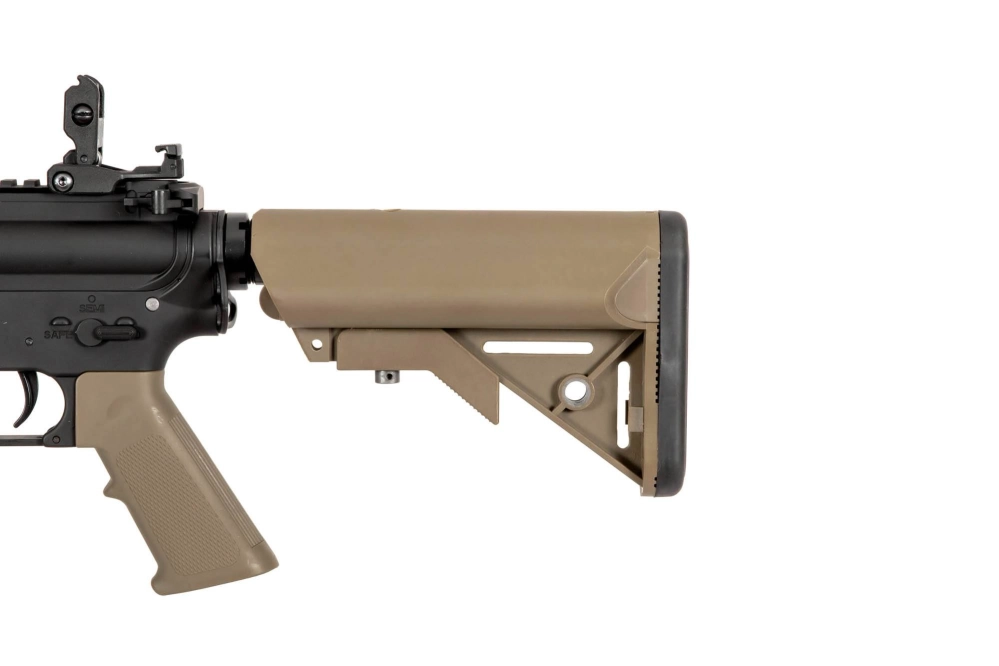

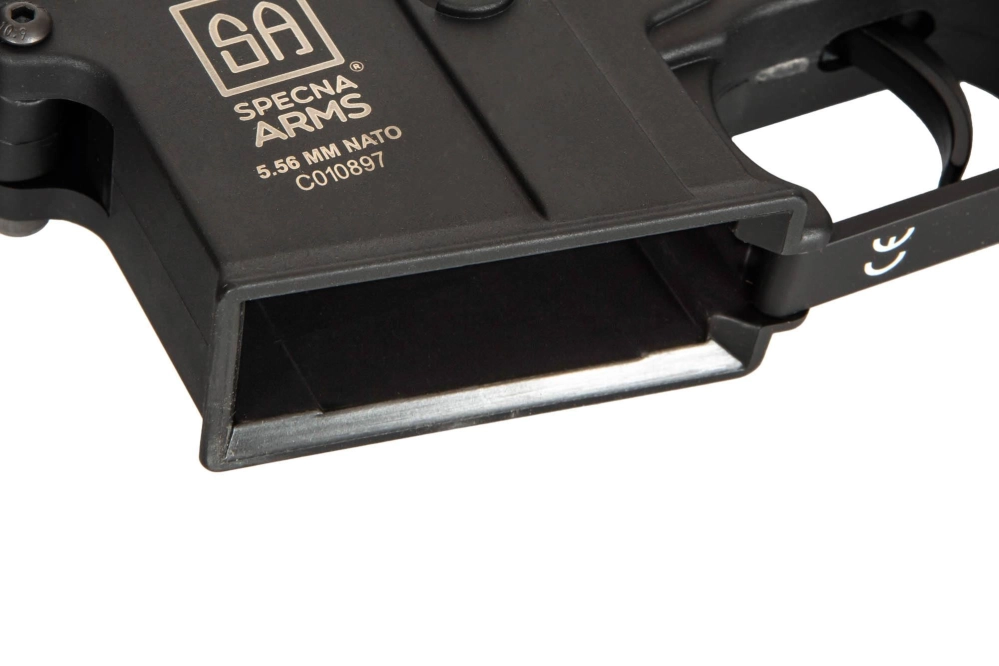

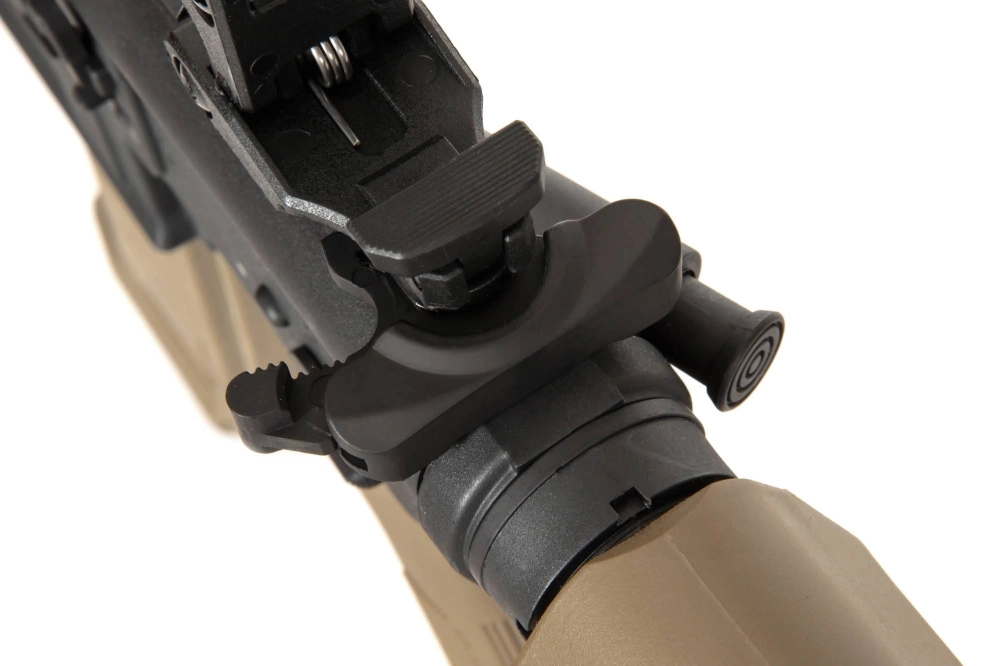

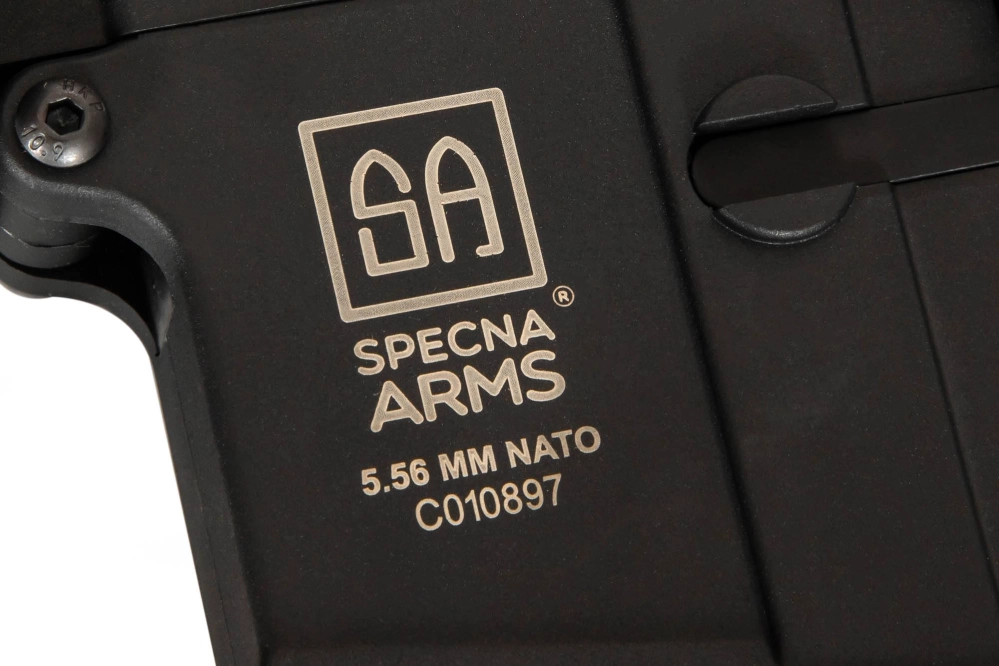

The receiver, the stock slide and an SF stock that holds the battery, as well as the pistol grip, were made of nylon fiber reinforced polymer. Remaining components such as the barrel, RIS handguard, flash hider, enlarged charging handle and tactical sling swivels were made of metal (parts made of steel include the screws, pins, shell ejection window and mock bolt carrier). The receiver bears markings and a serial number.
The replica’s parts are aligned very well and the User will not experience any loose spots between the lower and the upper receiver. The use of a light polymer receiver allowed for a reduced weight, which makes it very suitable for dynamic games or long-lasting mil-sims. What’s more, the fiberglass reinforcement makes the receiver also more durable than polymer and metal receivers.

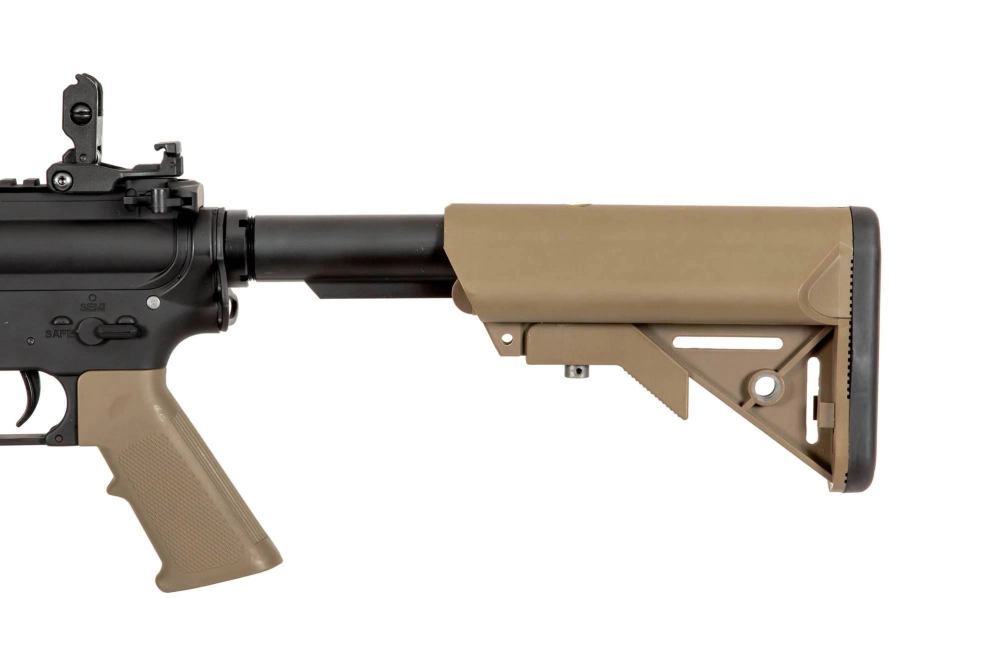

The replica features an ESA™ Quick Spring Change System. Due to that system, it is possible to rapidly and quickly adapt the power of the replica to the conditions expected on the playing field without the necessity to have the access to a workshop or a set of special tools - all that is required is to remove the stock slide in order to gain access to the spring so that it can be removed without having to pull out or disassemble the gearbox.
The advantages of the ESA™ system are hard to overstate. In the light of current internal regulations inside various groups, the system guarantees the User a varied set of possibilities and plenty of freedom. ESA™ system allows with a minimal amount of time to exchange the main spring, thus to customize the muzzle velocity towards the area of the game in such a way so as to guarantee an ideal compromise between the effectiveness of fire and the safety for the User himself as well as other participants.

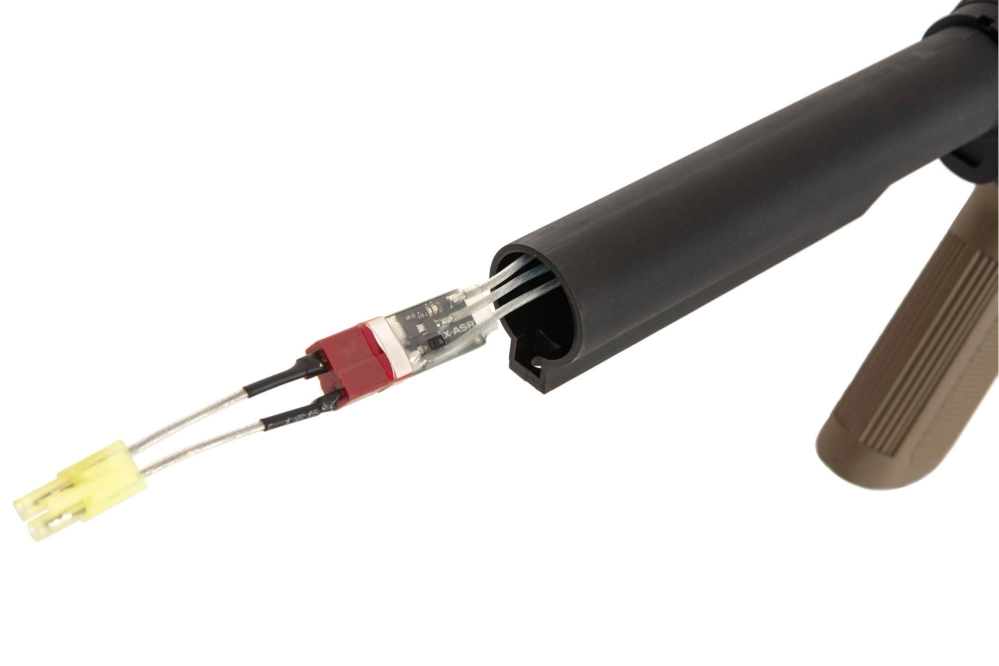

The carbine features a factory-fitted MOSFET X-ASR™ module by Polish GATE. It is an unprecedented cooperation between a Polish manufacturer and a factory known for its airsoft replicas. The highest-quality MOSFET X-ASR™ looks after the safety of the replica components, improves the trigger reaction and extends the lifetime of electronics and the battery. It will also enable diagnosing basic malfunctions inside the replica thanks to integrated status diodes.
The replica is fully compatible with LiPo and LiFe batteries. Due to a base muzzle velocity of ~380 FPS provided by the main spring installed by default by the manufacturer, the replica is perfect for operating on a medium range. The set also includes an M90 spring, which allows reducing the muzzle velocity to ~310 FPS and as a result to adapt the replica for close-ranged and indoor operations.
The gearbox contains 8 mm slide bearings as well as shimmed steel gears based on them. The system is secured with four anti-reversal latches. A light, made of polycarbonate polymer piston is equipped with a full steel strip, in order to increase its durability. Also, implemented were a type 0 cylinder and a steel circuit-breaker, as well as a precise rotary Hop-Up chamber. The durability of parts allows for the cooperation with M140 springs.
A carefully made Rotary Hop-Up chamber splendidly cooperates with a high-quality precision barrel with a diameter of 6.03 mm. The implementation of a precision barrel increases the replica’s range and accuracy. One must remember to use high-quality 6 mm BBs.

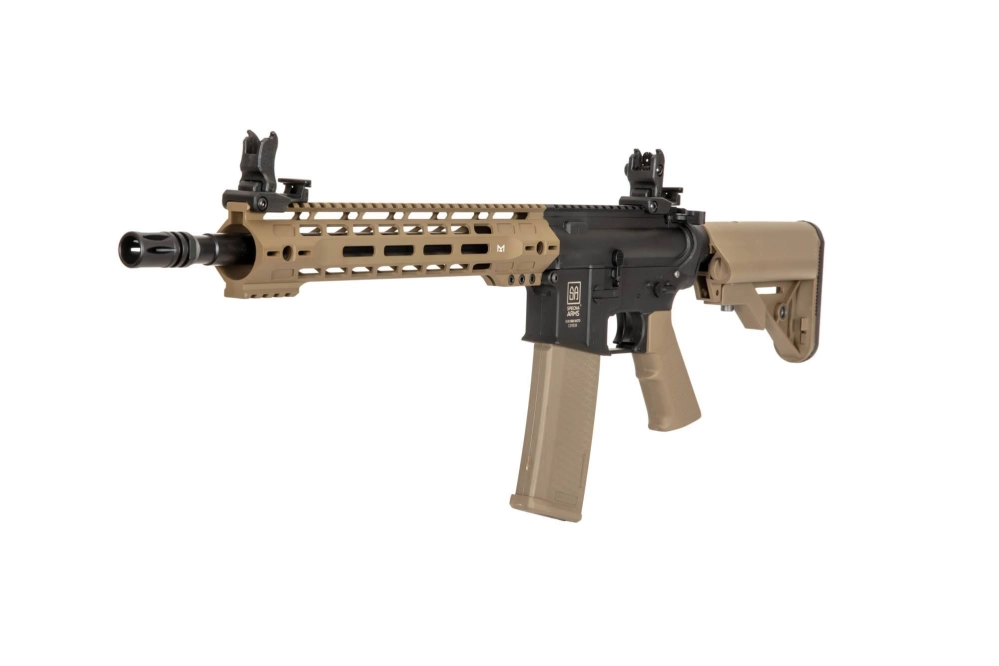

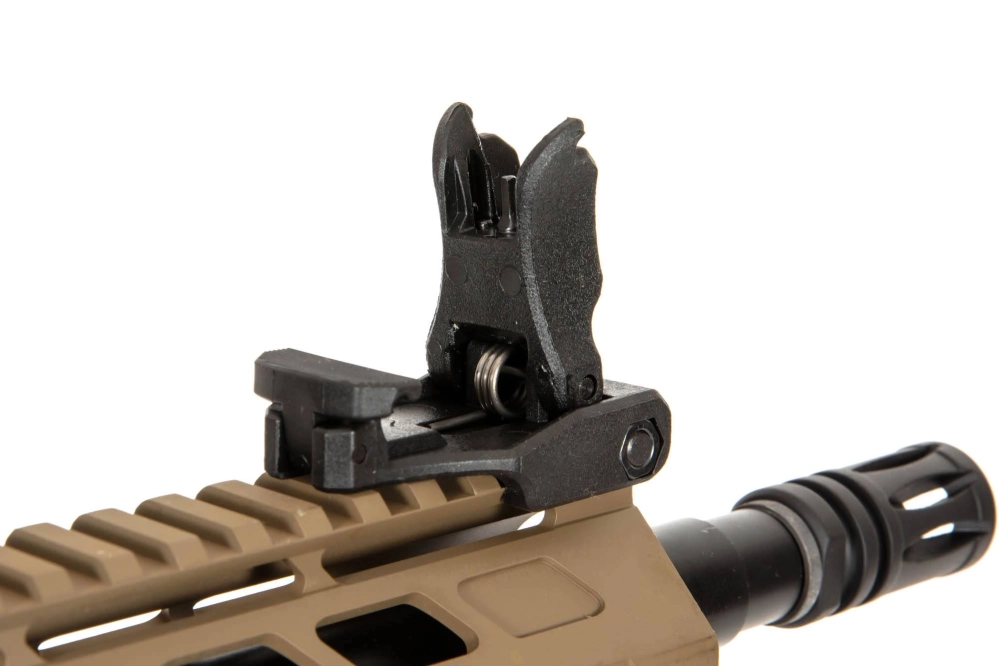

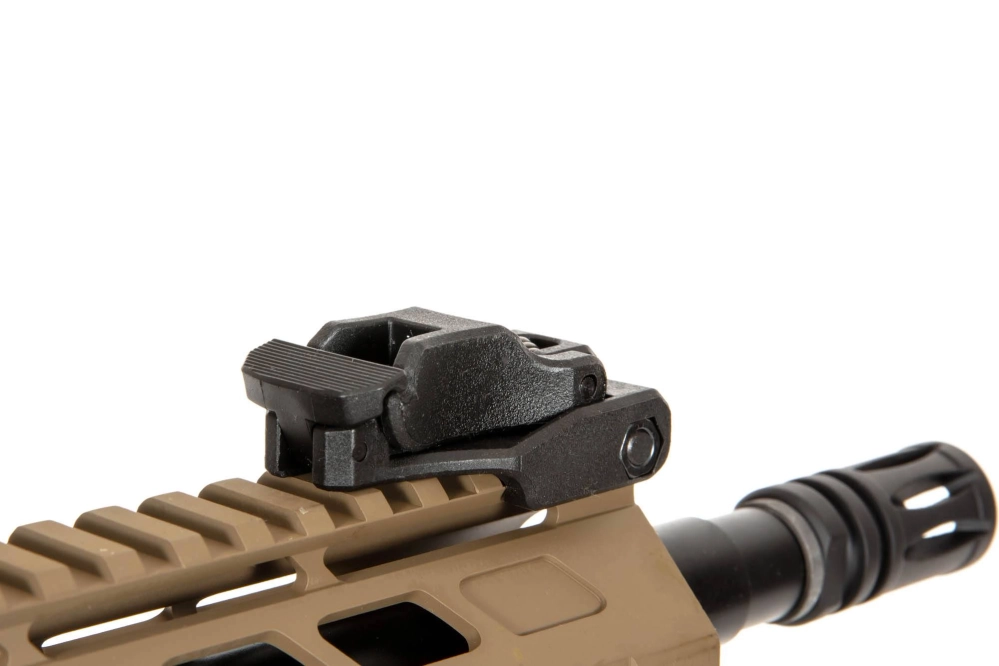

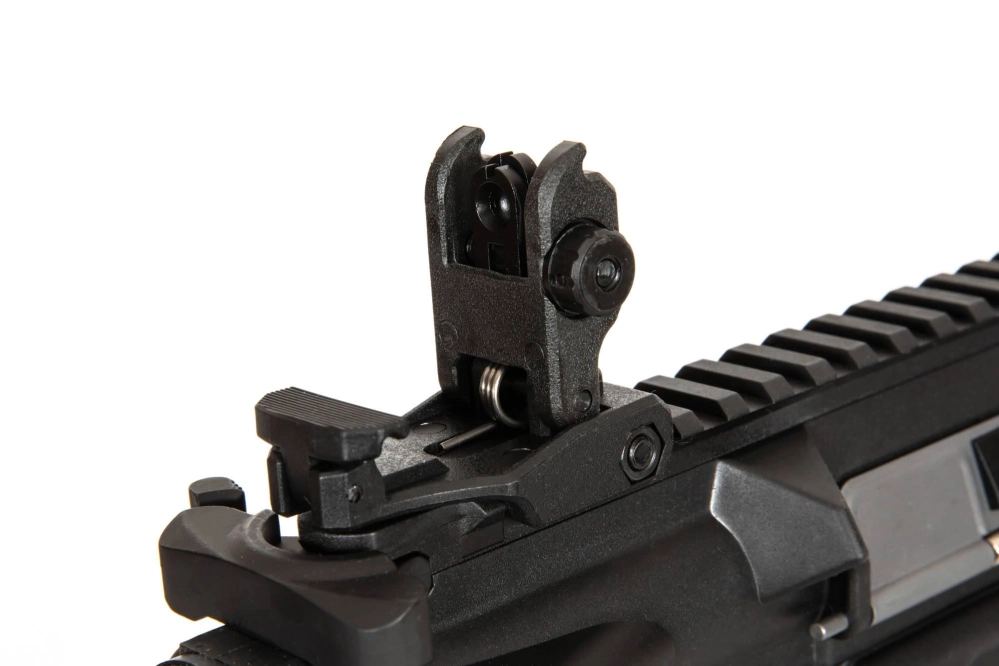

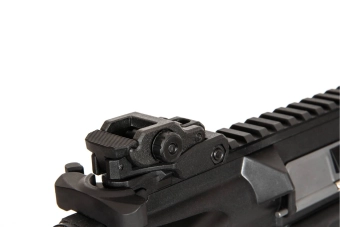

SA-C14 carbine replica is equipped with an M-LOK handguard. A short RIS mounting rail is located under the barrel. The barrel features a standard muzzle device on a 14 mm CCW thread. The top of the replica features flip-up iron sights. The sides feature QD tactical sling swivels.
The set includes an S-MAG Hi-Cap magazine with a capacity of up to 380 BBs. S-MAG is an exclusive polymer magazine designed by Specna Arms. Noteworthy is the characteristic texture comprised of Specna Arms logos. S-mag facilitates a seamless feeding of BBs even at high ROF.
The set does not include a battery or a charger.

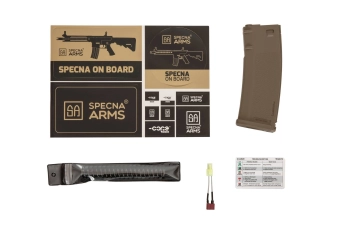

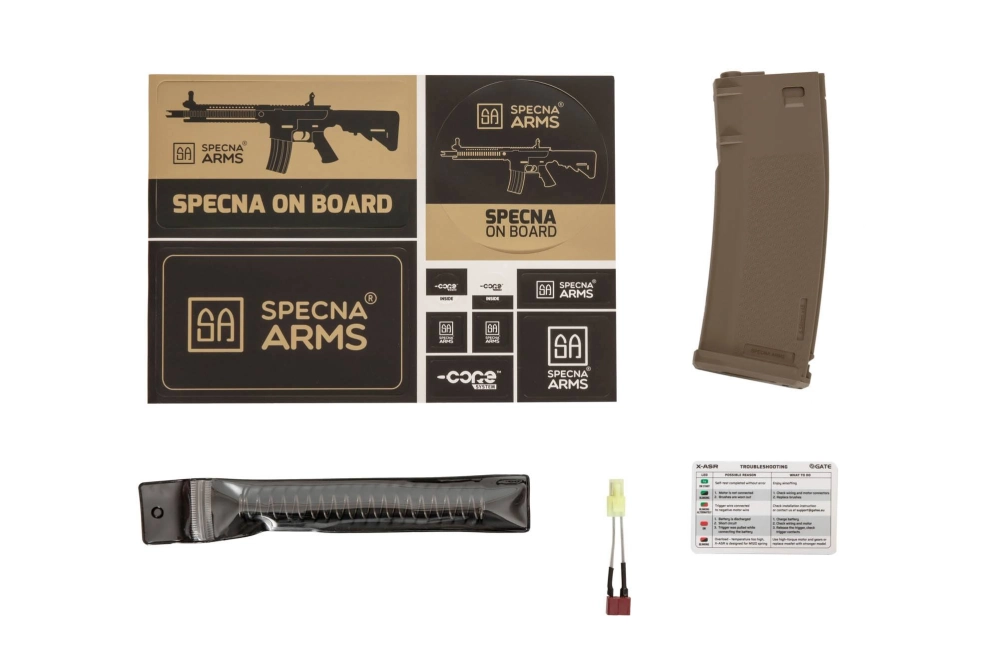

The set includes:
- replica
- S-Mag magazine
- fixed iron sights
- additional main spring
- GATE X-ASR diagnostics card
NiCd
rechargeable battery is characterized by high efficiency
current-carrying capacity, but there are disruptive effect on memory.
Should be unloaded and loaded in the full cycle, ie, it is recommended
to fully discharge, and after unloading must charge the battery
immediately without leaving it for a long time in a discharged state.
NiMH batteries have a higher self-discharge over time and shorten the
life - on the other hand, they earn about 30% more capacity.
Blow back is a simulation system of the cocking lever - it imitates the work of it as the equivalent sharp. This system raises the realism and adds a lot more experience during shooting.
It is the spped of bb, while its leaving the innerbarrel of replica. This speed is measured in FPS (Feet Per Second).
1 FPS = 0,3 m/s
1 J = 99 m/s
1 J = 326,7 FPS
Indications v2, v3, v6 does not mean the level of advance, but only shape of gearbox skeleton which was used and selected by the manufacturer depending on the capabilities of the body of the replica. For example, a models of the M4/M16 family, MP5, have a v2 gearbox, while the AK family have gearbox v3.
Hop-Up system is used for overclocking bb during the shot (putting it in rotation), through which, it extends its flight path. Acting laws of physics make that bb lift up, while the gravitational force take it down. Appropriate adjustment of Hop-Up, will compensate for these two factors, which result in long and straight flight for longer distance and be greater focus shot (to improve accuracy).
