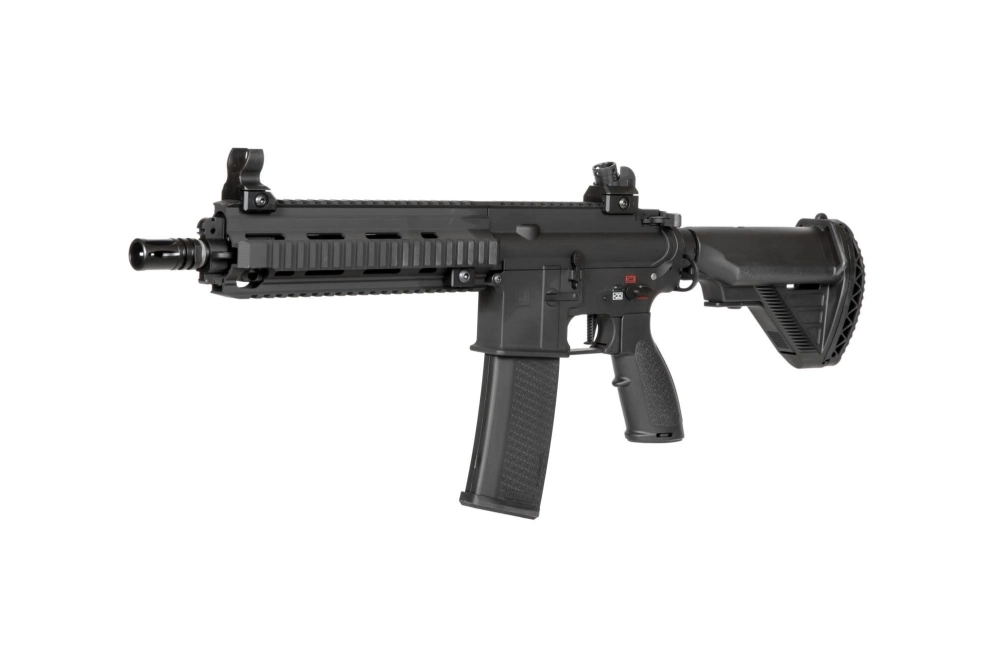

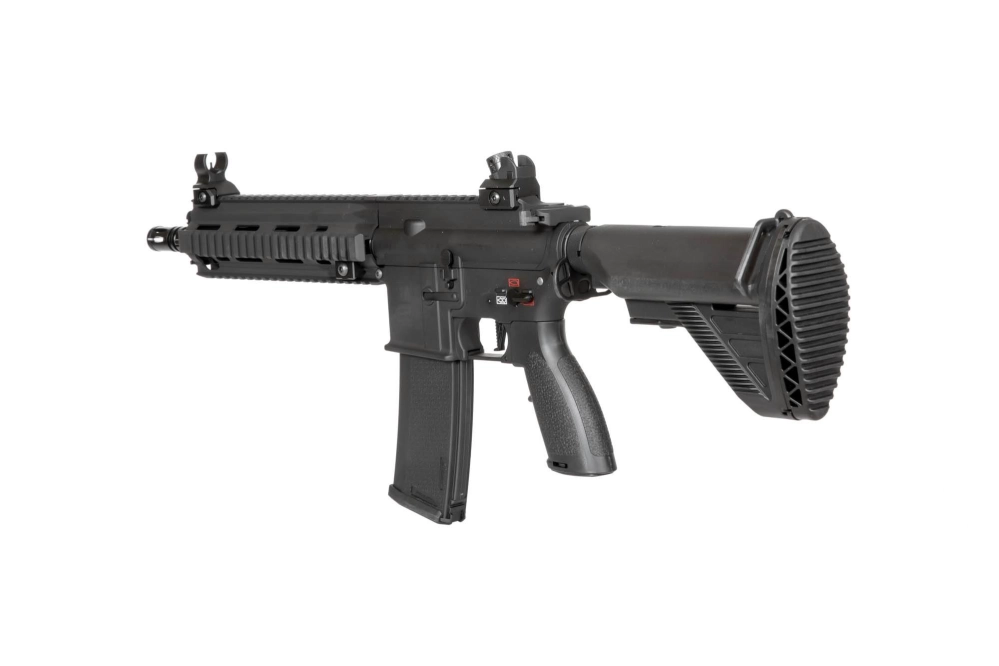

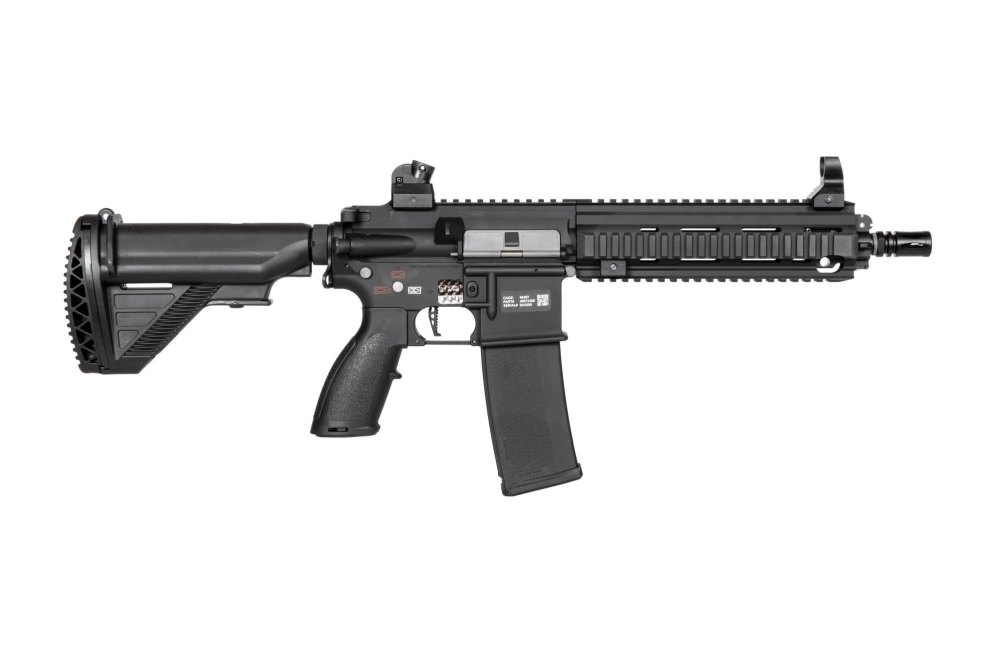

SA-H20 EDGE 2.0™GATE ASTER carbine replica - black
- Built-in GATE ASTER™ unit
- Brand: Specna Arms
- color: Black
- produkt length: 79
- weight [g]: 3175
- made from: Metal, Polymer
- muzzle velocity [FPS]: 370
The product does not constitute ballistic protection and has no other protective properties. It is not intended for use in protective purposes, including during tactical/war/ASG games.
The use of the product for ballistic protection and/or for other protective purposes, including the use during tactical/war/ASG games, is the use of the product contrary to its intended use, in which case the buyer does so solely at his own risk.
The vendor is not liable for damage to the product, that might result from the use of the product contrary to its intended purpose, this also applies to all possible health consequences (bodily harm) for the user (buyer) or damage to property. Moreover, a misuse of the product will void the warranty on the product.
The vendor is liable to the buyer under the warranty for product defects (in the event of such defects) only if the buyer/user uses the product for its intended purpose, i.e. for purposes other than protective purposes, including the use during tactical/war/ASG games.
The lack of any protective properties of the product is a feature, not a product defect, and therefore it does not constitute a physical defect of the product within the meaning of the Polish Civil Code.

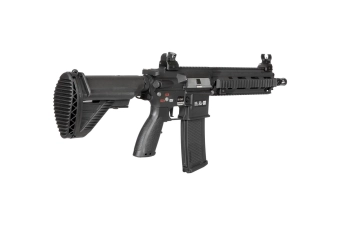

SA-H20 EDGE 2.0™ Carbine Replica
The EDGE 2.0 ™ series introduces a completely new quality to the Specna Arms replicas family by adding new functionalities and innovations to the standard already proven by airsoft players. As a result, Specna Arms EDGE 2.0 ™ carbines offer an exceptional level of quality and technical advancement straight out of the box.
What distinguishes EDGE 2.0 ™ from the previous version?
- GATE ASTER™ Unit
- Solar™ Trigger
- Helium™ Flat Hop Bucking
- High Torque Motor
- ESA2™ Quick Spring Change System

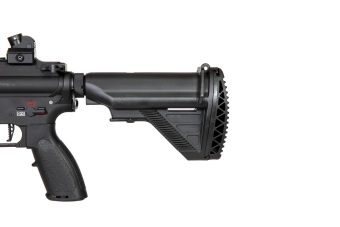

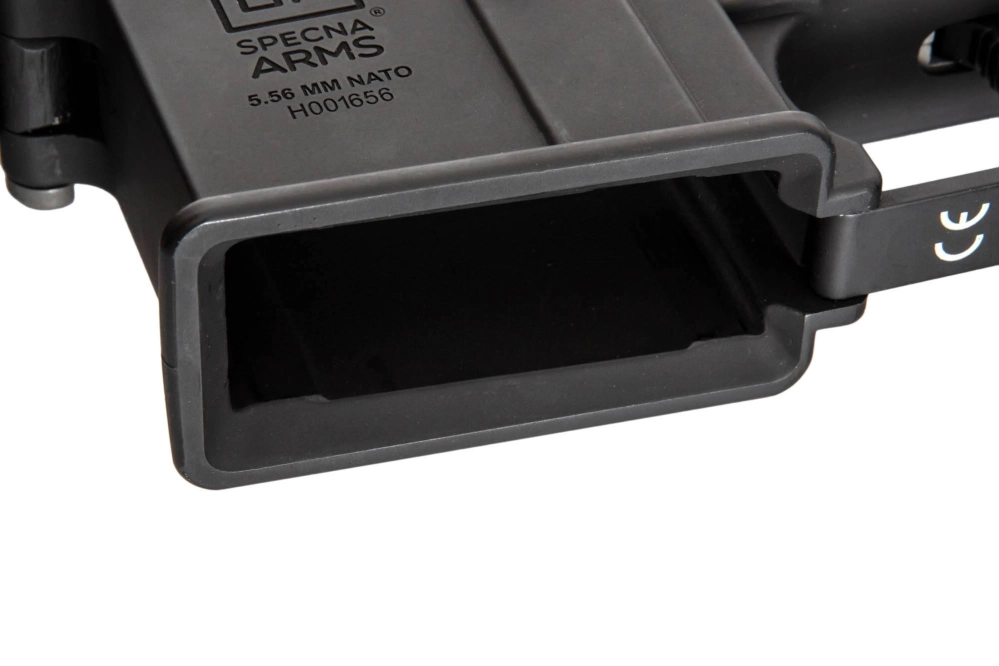

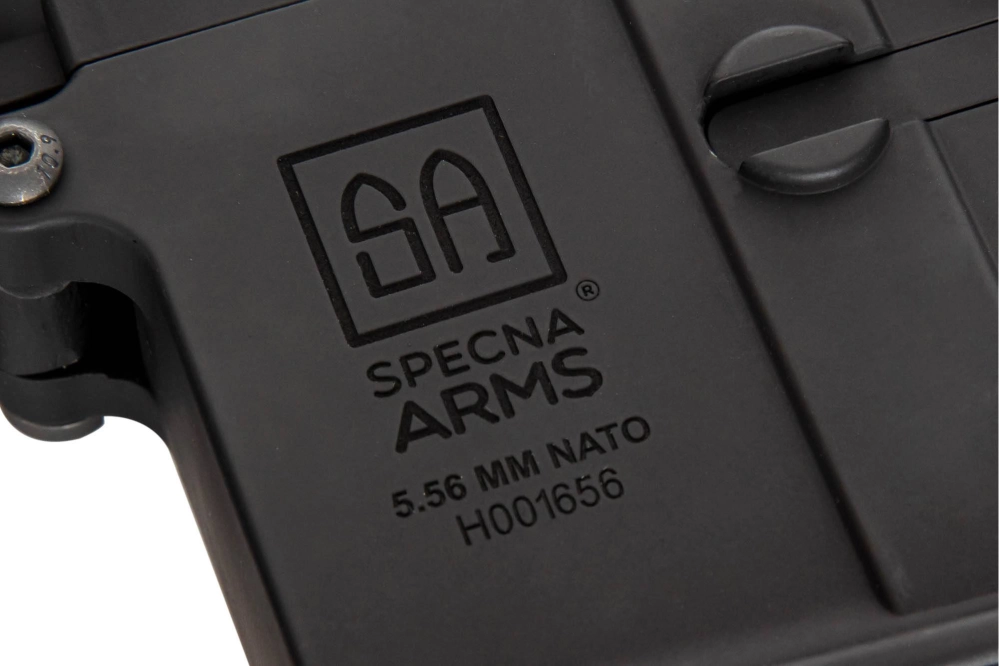

Every element of the replica had been made and fitted with the utmost care for every detail. In addition, the body features a Nano Coating finish that prevents scratches. The body also bears deeply engraved Specna Arms markings as well as an individual serial number further authenticated by an additional hologram. Details that deserve note also include the QD pistol grip that provides easy and rapid access to the motor without having to use tools as well as a double-sided loop for the attachment of a tactical sling.

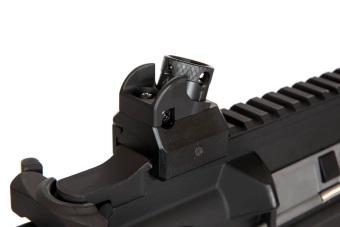

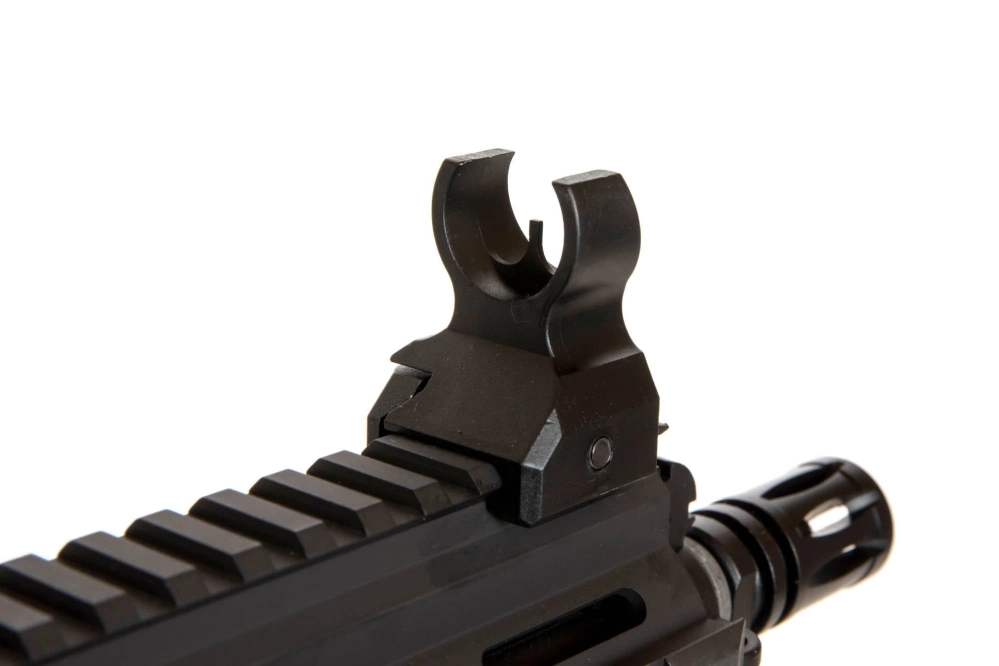

SA-H20 carbine replica is equipped with a handguard in RIS / Picatinny mounting system that can serve as a mount for various tactical accessories: flashlights, grips, laser sights and optical sights. The barrel features a muzzle device on a 14 mm CCW thread. The top RIS rail features the set of iron sights.
The replica features an internal precision barrel with 6.03 mm in diameter that provides high accuracy and repeatability of fired shots with a new type of a Hop-Up rotary chamber.
Preinstalled Helium™ Flat Hop bucking allows for a very precise and stable adjustment of the BB spin.
The replica features an ESA2™ Quick Spring Exchange System. Due to that system, it is possible to rapidly and quickly adapt the power of the replica to the conditions expected on the playing field without the necessity to have the access to a workshop or a set of special tools - all that is required is to remove the stock slide in order to gain access to the spring so that it can be removed without having to pull out or disassemble the gearbox.
The advantages of the ESA2™ system are hard to overstate. In the light of current internal regulations inside various groups, the system guarantees the user a varied set of possibilities and plenty of freedom. ESA2™ system allows with a minimal amount of time to exchange the main spring, thus to customize the muzzle velocity towards the area of the game in such a way so as to guarantee an ideal compromise between the effectiveness of fire and the safety for the user himself as well as other participants. Inside the box, along with the replica, is another M90 main spring that is excellent for indoor operations.
ESA2™ system is included in the European Patent with a number: 007422159-0001
The heart of the replica consists of the ORION gearbox based on a reinforced frame and equipped with the function of the main spring release. The replica features an arrays of high-grade parts right out of the box, which makes it characteristic for its reliability and preparedness for further tuning. ORION gearbox is ready for cooperation with M140 springs. Inside, there are elements such as:
- reinforced polymer piston with a full, steel jaw
- lightweight, polymer double air-sealed piston head with bearings
- aluminum, air-sealed nozzle
- aluminum, double air-sealed cylinder head
- bearing-mounted spring slide
- set of steel gears
- 8 mm ball bearings
The replica uses a powerful and efficient High Torque motor equipped with powerful neodymium magnets. The motor has 22TPA (Turn Per Arm) winding and can handle without issue springs more powerful than the one included in the set.

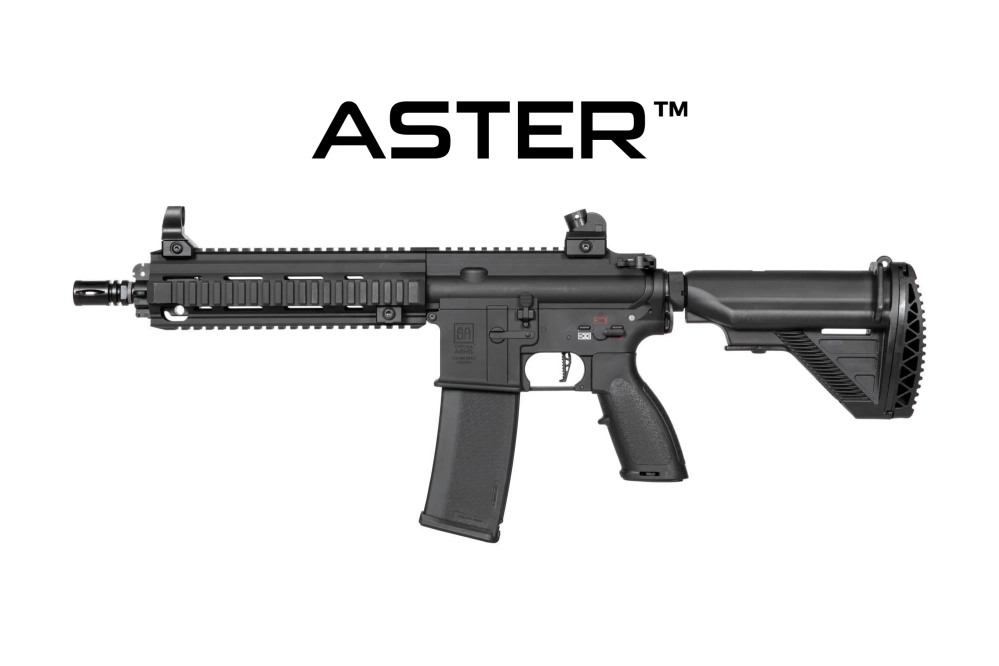

ASTER™ system is the younger brother of a well-known TITAN™ unit. This fourth generation of AEG control systems was designed with a majority of electric replicas equipped with gearbox V2 in mind, also those that undergo demanding tuning. ASTER™ allows to reach maximum durability whilst retaining the attractive price. This system is characteristic for its uniquely beneficial price to efficiency ratio.
Thanks to ASTER™, you can improve your replica by replacing the connectors with an advanced controller equipped with innovative optical sensors, which offers up to 240 trigger sensitivity settings. Trigger rapid reaction and many other useful functions will enable you to get an edge over opponents on the airsoft battlefield. An intelligent fuse protects the battery, the motor and the controller, even from a reverse connection of the battery. This function, along with optical sensors, makes ASTER™ the most durable drop-in type system available on the market.
ASTER™ provides new possibilities:
- safeguard from reverse polarization of a battery
- innovative optical sensors
- 250 trigger sensitivity settings
- ability to configure with the use of the replica’s trigger or GATE Control Station application
- integrated RGB LED diode simplifying the programming of the system
- premium functionality at a reasonable price
The EDGE 2.0™ replicas are equipped with a dedicated Solar™ Trigger, which works perfectly with the ASTER™ sensors, offering unprecedented sensitivity and precision. The new Specna Arms trigger is made under license of Gate Quantum Trigger™.
ATTENTION! Some functions of ASTER system are available in GCS (Gate Control Station). In order to use it, one requires a USB-Link (not included in the set - to be purchased separately).
Full system description: https://www.gatee.eu/products/aster/ast2-en
ASTER™ unit manual: https://www.gatee.eu/download/aster-v2-quickstart.pdf
The box, apart from the replica, includes two Mid-Cap S-MAG magazines with a capacity of 125 BBs each. S-MAG is an exclusive polymer magazine designed by Specna Arms. Noteworthy is the characteristic texture comprised of Specna Arms logos. S-mag facilitates a seamless feeding of BBs even at high ROF.

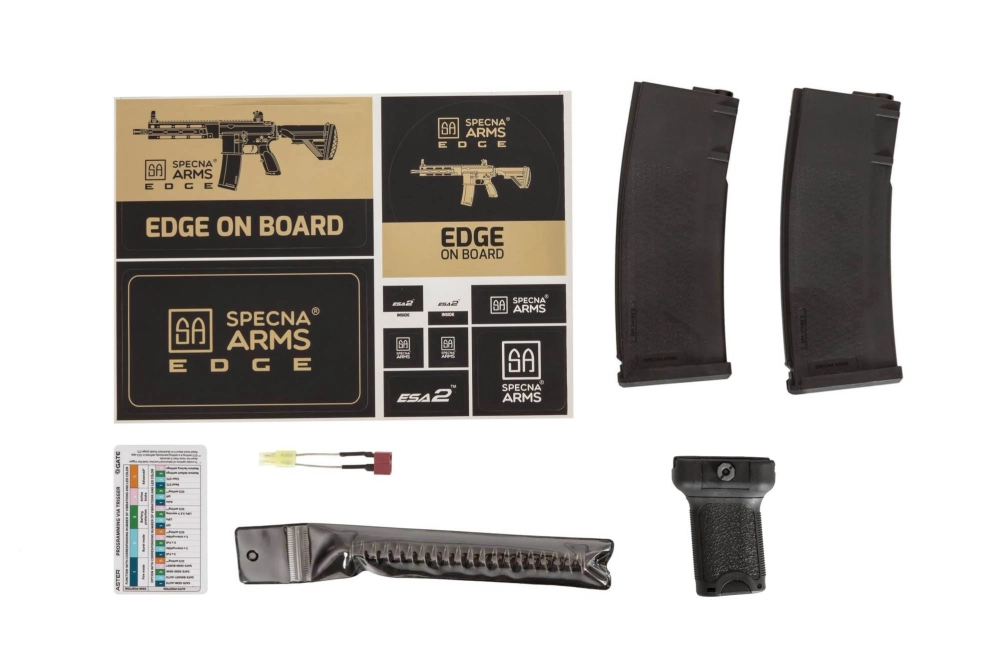

Package include:
- 2 x mid-cap S-MAG magazine
- QC certificate
- GATE ASTER diagnostic card
- Instruction
- Replica
- M90 additional spring
- Vertical Grip
Package exclude:
- The set does not include the battery nor charger
NiCd
rechargeable battery is characterized by high efficiency
current-carrying capacity, but there are disruptive effect on memory.
Should be unloaded and loaded in the full cycle, ie, it is recommended
to fully discharge, and after unloading must charge the battery
immediately without leaving it for a long time in a discharged state.
NiMH batteries have a higher self-discharge over time and shorten the
life - on the other hand, they earn about 30% more capacity.
Blow back is a simulation system of the cocking lever - it imitates the work of it as the equivalent sharp. This system raises the realism and adds a lot more experience during shooting.
It is the spped of bb, while its leaving the innerbarrel of replica. This speed is measured in FPS (Feet Per Second).
1 FPS = 0,3 m/s
1 J = 99 m/s
1 J = 326,7 FPS
Indications v2, v3, v6 does not mean the level of advance, but only shape of gearbox skeleton which was used and selected by the manufacturer depending on the capabilities of the body of the replica. For example, a models of the M4/M16 family, MP5, have a v2 gearbox, while the AK family have gearbox v3.
Hop-Up system is used for overclocking bb during the shot (putting it in rotation), through which, it extends its flight path. Acting laws of physics make that bb lift up, while the gravitational force take it down. Appropriate adjustment of Hop-Up, will compensate for these two factors, which result in long and straight flight for longer distance and be greater focus shot (to improve accuracy).
