TITAN II Bluetooth® V2 (AEG Rear) Control Unit Set by GATE
- Brand: GATE
- color: Black&blue
- made for: Replicas z gearboxem V2
- weight [g]: 28
The product does not constitute ballistic protection and has no other protective properties. It is not intended for use in protective purposes, including during tactical/war/ASG games.
The use of the product for ballistic protection and/or for other protective purposes, including the use during tactical/war/ASG games, is the use of the product contrary to its intended use, in which case the buyer does so solely at his own risk.
The vendor is not liable for damage to the product, that might result from the use of the product contrary to its intended purpose, this also applies to all possible health consequences (bodily harm) for the user (buyer) or damage to property. Moreover, a misuse of the product will void the warranty on the product.
The vendor is liable to the buyer under the warranty for product defects (in the event of such defects) only if the buyer/user uses the product for its intended purpose, i.e. for purposes other than protective purposes, including the use during tactical/war/ASG games.
The lack of any protective properties of the product is a feature, not a product defect, and therefore it does not constitute a physical defect of the product within the meaning of the Polish Civil Code.

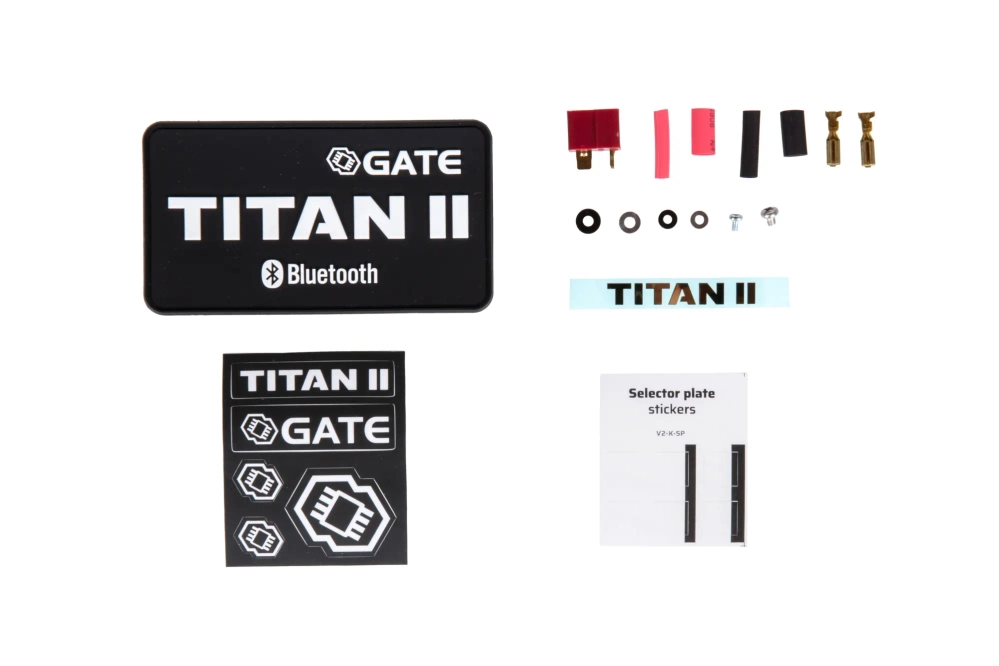

TITAN II Bluetooth® V2 (AEG Rear) Control Unit
Set
The TITAN
II Bluetooth® V2 is a flagship electronic control unit (ECU)
that replaces the trigger contacts (ETU) in airsoft AEGs by GATE. The built-in Bluetooth 5.2 technology
provides direct access to airsoft gun settings, telemetry data, and
compatibility with GATE's smartwatch, STATUSa, and other devices.
This innovative unit
features a gear sensor that not only counts every gear tooth but is also the
first in the world to determine the gear rotation direction, offering the most
precise control of the cycle in electric airsoft guns. The optical
trigger sensor allows for "hair-trigger" adjustments with
precision, even down to 50 sensitivity levels in the first millimeter of
trigger movement, while retaining the advantages of the trigger sensor
known from the TITAN V2. The TITAN II Bluetooth® V2 is equipped with a
multifunctional port ready for connecting additional accessories such as
bolt-catch, magazine sensor, BB illumination in the hop-up chamber, and more.
Technical Specifications:
Nominal Voltage: ~3.75- 17 VDC
Nominal Current: 30 A
Maximum No-Load
Current: 27 mA
No-Load Current: 100 µA
Connectivity: Bluetooth® 5.2 Low Energy
Dimensions (length x
width x thickness): 47.2 mm x 28.9 mm x 14.5 mm
Ready Product Weight:
28.2g
Operating Temperature
Range: min. -15°C, max. +50°
Relative Operating
Humidity: ≤ 80%
Wiring Version for rear-wired electric
replicas.
