AGM056B rifle replica
- Muzzle velocity: 420 fps
- Length:: 945 mm
- Weight: 4200 g
- Made of; metal and wood
- Manufacturer: AGM

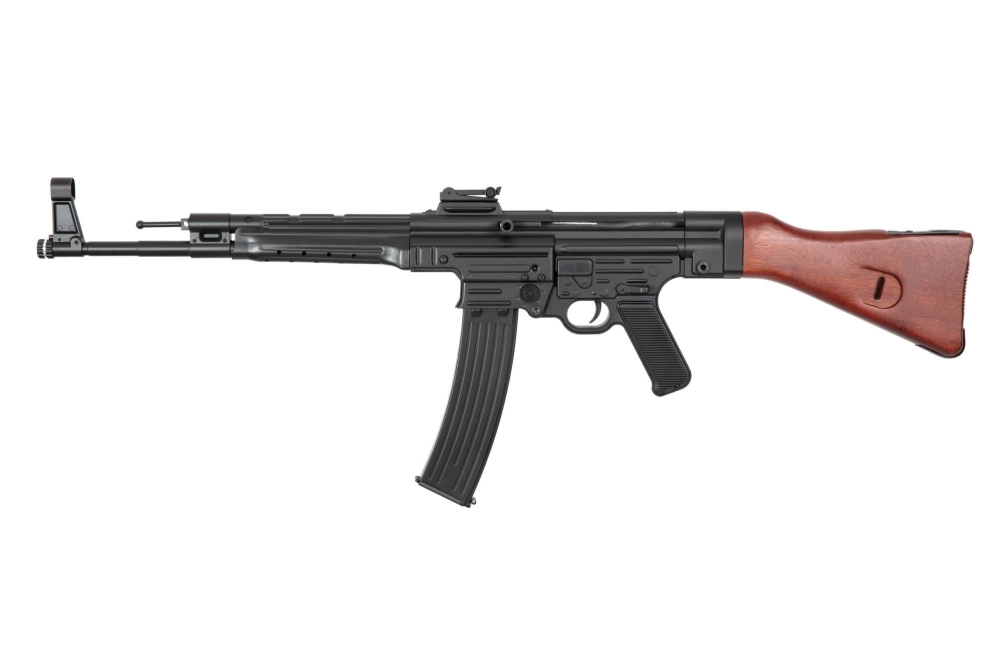

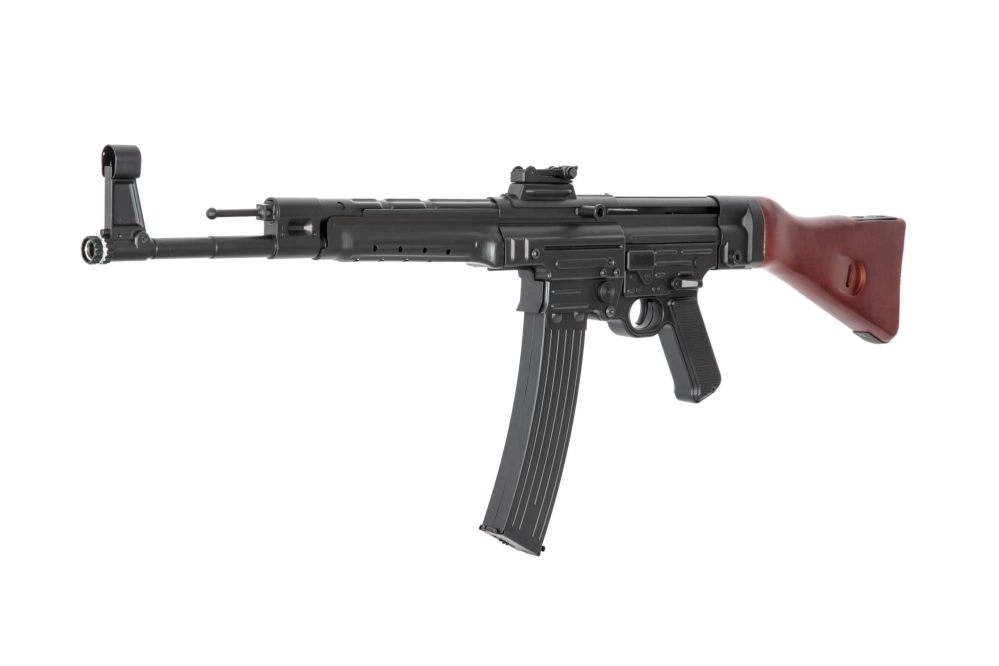

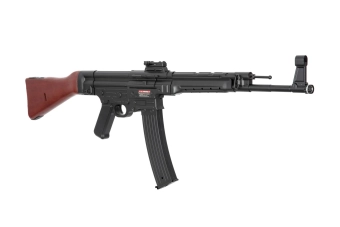

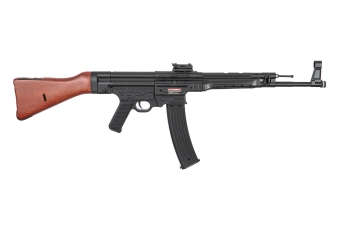

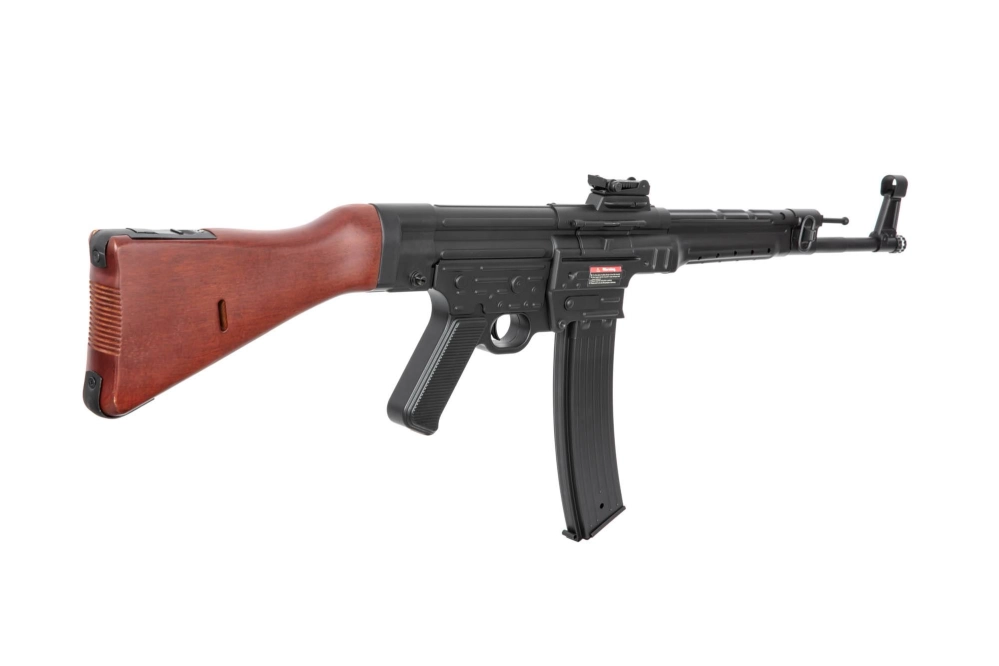

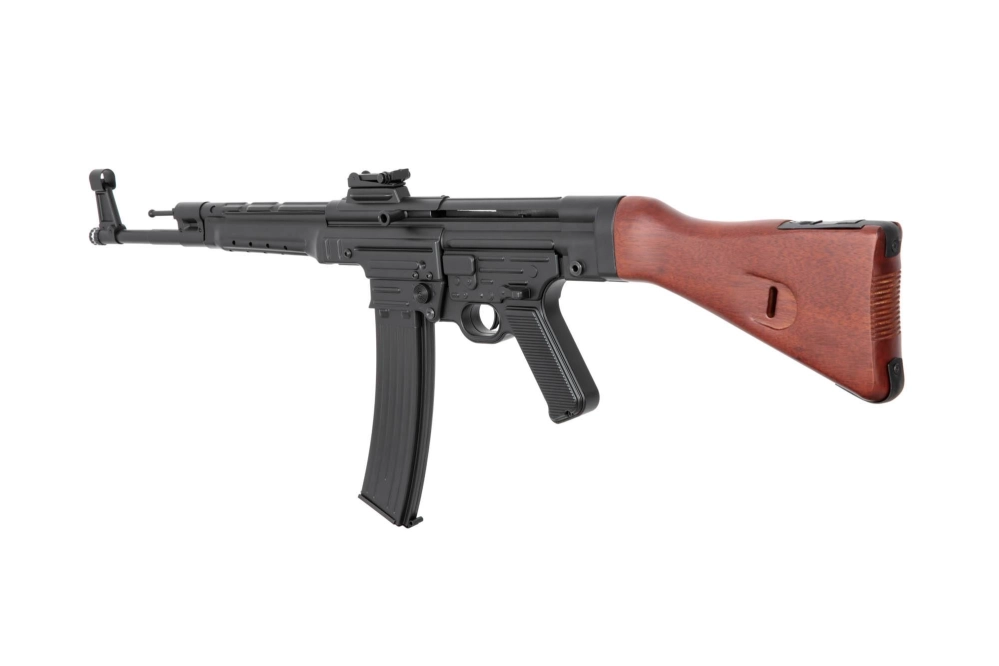

AGM056B rifle replica
The replica was made of metal and wood. The stock was made of wood while as the rest of the outer parts were made of metal. In order to connect the battery, you need to remove the pin which is located by the stock's base and pull the stock towards the rear. There is a place for a stick type battery.
The replica's gearbox is a V2 type gearbox which is equipped with a basket which does not offer the motor adjustment. The thread-wheels are placed on 8mm slide bearings which are made of brass, the hop-up chamber was created by modernizing the chamber which was originally designed for the M4 and M16 based replicas. The piston is not equipped with a second tooth.
NiCd
rechargeable battery is characterized by high efficiency
current-carrying capacity, but there are disruptive effect on memory.
Should be unloaded and loaded in the full cycle, ie, it is recommended
to fully discharge, and after unloading must charge the battery
immediately without leaving it for a long time in a discharged state.
NiMH batteries have a higher self-discharge over time and shorten the
life - on the other hand, they earn about 30% more capacity.
It is the spped of bb, while its leaving the innerbarrel of replica. This speed is measured in FPS (Feet Per Second).
1 FPS = 0,3 m/s
1 J = 99 m/s
1 J = 326,7 FPS
Indications v2, v3, v6 does not mean the level of advance, but only shape of gearbox skeleton which was used and selected by the manufacturer depending on the capabilities of the body of the replica. For example, a models of the M4/M16 family, MP5, have a v2 gearbox, while the AK family have gearbox v3.
Hop-Up system is used for overclocking bb during the shot (putting it in rotation), through which, it extends its flight path. Acting laws of physics make that bb lift up, while the gravitational force take it down. Appropriate adjustment of Hop-Up, will compensate for these two factors, which result in long and straight flight for longer distance and be greater focus shot (to improve accuracy).
