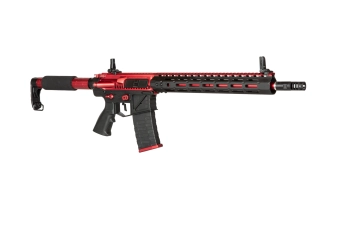

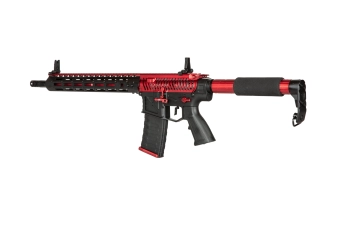

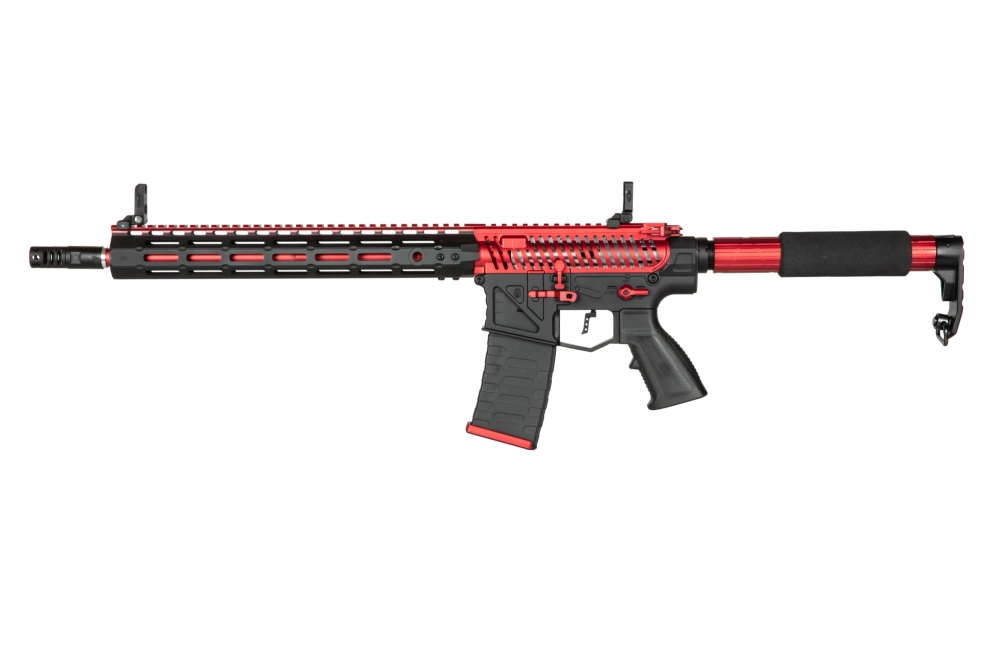

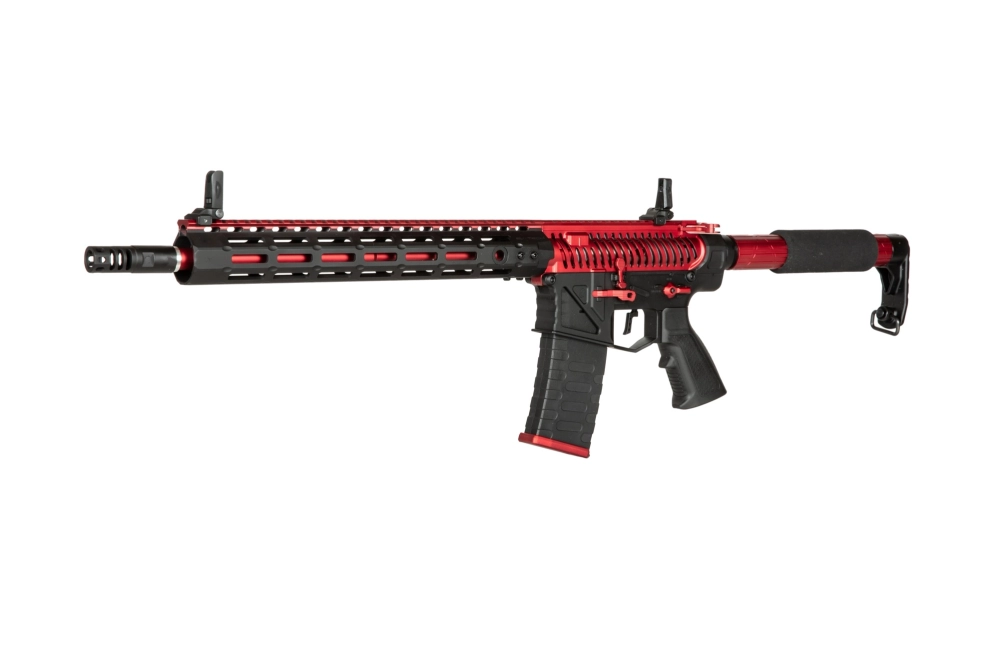

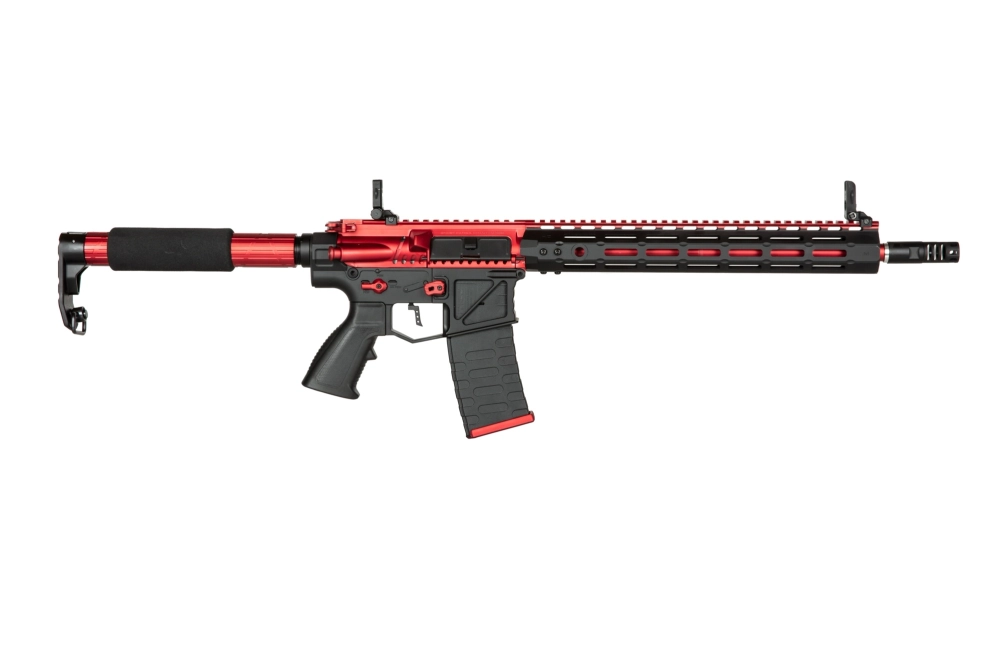

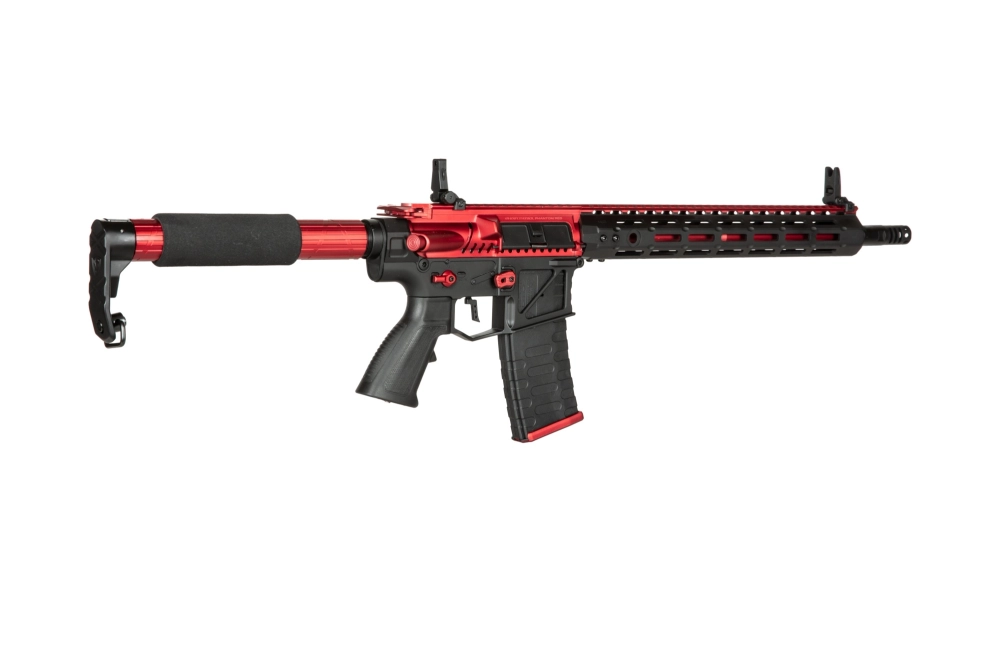

ASR123 Ghost Patrol Phantom Rifle Replica - Red
- Material: metal, plastic
- Length: 880mm
- Weight: 2700g
- Colour: black / red
- Muzzle Velocity: ~400 FPS
- Manufacturer: APS
ASR123 Ghost Patrol Phantom Rifle Replica
The rifle replica manufactured by APS is an innovative conceptual design. The rifle is built on the basis of a construction typical of the family of popular American rifles and is equipped with the modular M-Lok rail assembly which is becoming more and more popular.

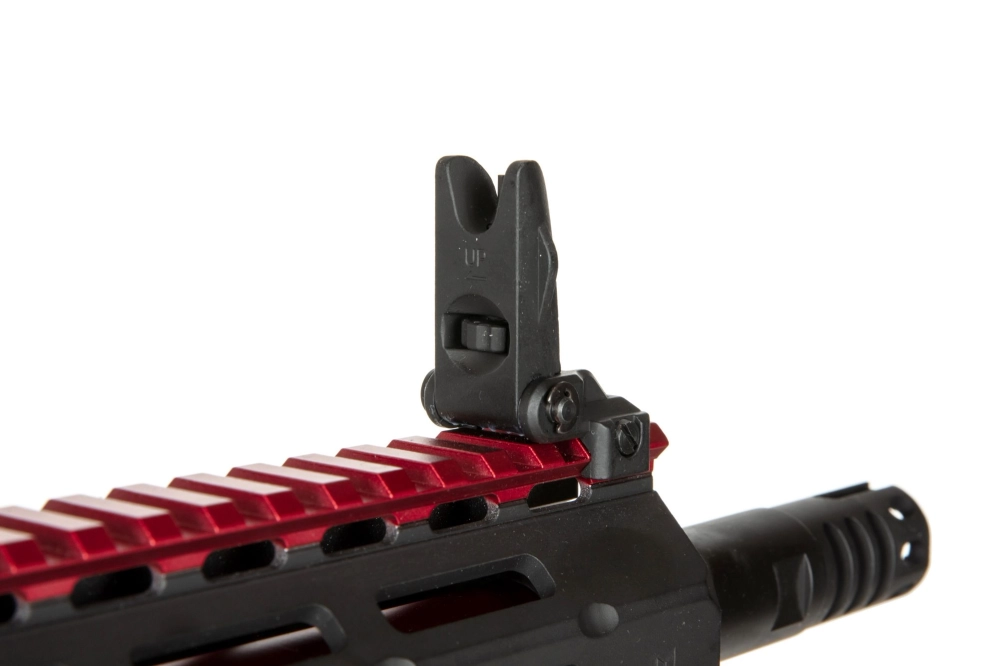

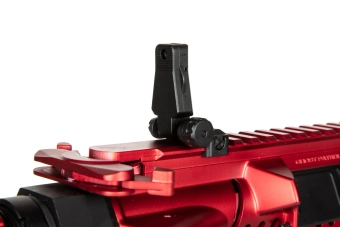

The RIS 22mm rail allows for the installation of various types of optical sights. The set includes a set of folding, mechanical flip-up sights. The replica is suitable for right and left-handed users thanks to the manipulators and levers having a double-sided configuration. In addition, the rifle has the proprietary APS Phantom Overload pistol grip with replaceable, non-slip EVA linings, which has a shock absorption system generated by the motor, increasing its efficiency.
The replica's receiver is made on CNC machines. In addition, it has milling to reduce weight and increase aesthetics. The replica is equipped with an unusual stock called TRON, inside which there is room for a battery. On the front and butt plate there is a place for mounting a QD suspension. The carabiner is also equipped with a special construction, enlarged reloading handle.
The inner barrel is made out of a chrome-molybdenum steel (Cr-Mo) alloy. Due to the unique manufacturing and heat treatment process, grinding the inner barrel not only ensures high tolerance but also increases the barrel's service life. Compared to other metals, Cr-Mo alloy produces less vibration when firing the replica, which improves the overall accuracy.
The heart of the replica is the V2 gearbox with a quick spring change system, from the latest eSilver Edge series with the High Torque motor. Housed within the replica is the SDU 2.0 chip which is fully programmable. The user is able to change his wherever and at any time he wishes. No additional external devices are needed. To use the chip, press the button located on the bottom of the front part of the gearbox frame. The button is located in the magazine slot. When pressed and held, the red LED should light up. The button should be held down until the LED blinks twice. We have one of five modes available to program:
Mode 1: Safe-Semi-Auto (factory setting)
Mode 2: Safe-Semi-Burst (3)
Mode 3: Safe-Burst (2) -Auto
Mode 4: Safe-Burst (3) -Auto
Mode 5: Safe-Burst(3)-Burst(9)
Double pressing the button or disconnecting the battery will reset the system to factory setting
The replica comes with a plastic hi-cap magazine with a capacity of 300 BBs
The set does not include a battery or a charger.

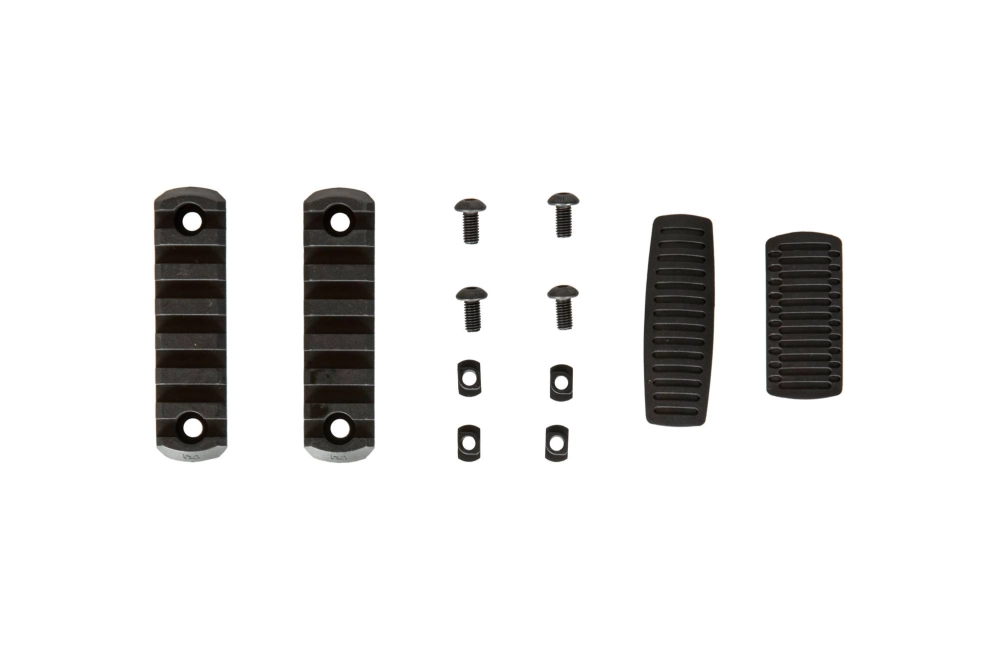

The set includes:
- replica
- magazine
- 2 additional pistol grip linings
- Hand stop grip
NiCd
rechargeable battery is characterized by high efficiency
current-carrying capacity, but there are disruptive effect on memory.
Should be unloaded and loaded in the full cycle, ie, it is recommended
to fully discharge, and after unloading must charge the battery
immediately without leaving it for a long time in a discharged state.
NiMH batteries have a higher self-discharge over time and shorten the
life - on the other hand, they earn about 30% more capacity.
Blow back is a simulation system of the cocking lever - it imitates the work of it as the equivalent sharp. This system raises the realism and adds a lot more experience during shooting.
It is the spped of bb, while its leaving the innerbarrel of replica. This speed is measured in FPS (Feet Per Second).
1 FPS = 0,3 m/s
1 J = 99 m/s
1 J = 326,7 FPS
Indications v2, v3, v6 does not mean the level of advance, but only shape of gearbox skeleton which was used and selected by the manufacturer depending on the capabilities of the body of the replica. For example, a models of the M4/M16 family, MP5, have a v2 gearbox, while the AK family have gearbox v3.
Hop-Up system is used for overclocking bb during the shot (putting it in rotation), through which, it extends its flight path. Acting laws of physics make that bb lift up, while the gravitational force take it down. Appropriate adjustment of Hop-Up, will compensate for these two factors, which result in long and straight flight for longer distance and be greater focus shot (to improve accuracy).
