ELAR MUR Custom SBR Carbine Replica (Platinum Version)
- Material: Aluminum + Polymer + Steel
- Length: 635 - 720 mm
- Weight: 2950 g
- Colour: Black
- Muzzle Velocity: ~400 FPS
- Engine: Electric
- Manufacturer: E&L Airsoft
ELAR MUR
Custom SBR Carbine Replica (Platinum Version)
E&L
Airsoft is
known for the manufacture of realistic and indestructible replicas made
from wood and steel. This time it presents something from the other side of the
iron curtain. Replicas of American AR15 rifles are characteristic for, as
expected of an E&L product, solid materials used, high quality of
craftsmanship and reliability. AR15 series will definitely help E&L find many
new fans on the airsoft market.
The rifle
belongs to Platinum series that takes care for smallest details close to
perfection. Inside replicas from this series one can find high quality parts
that improve performance as well as durability, characteristic for tuned,
top-class replicas.
The replica was
made entirely from metal, with the exception of elements such as the
stock and pistol grip, which were made from polymer as in the live
firearm original. The receiver and RIS hand guard of the replica was made from aluminium. A rarity in airsoft AR15 replicas
- a steel external barrel. Apart from the barrel, steel parts

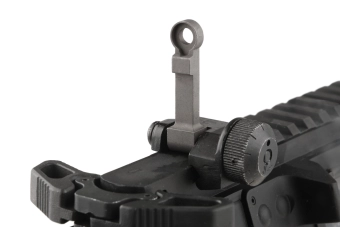

also include front and rear sights, flash hider, stock ring, mock bolt carrier,
shell ejection window flap as well as all manipulators such as the trigger or
fire mode selector. Parts of the entire construction fit very well together and
it gives a really solid impression. One that the user will not have to
worry about even during most demanding of airsoft games.
The stick
battery is stored inside the stock slide. At the top of the receiver is a
monolithic RIS 22 mm mounting rail that enables the attachment of any optics to
the replica. Access to the Hop-Up adjustment system is gained after pulling
back the charging handle. Thanks to a new type of a chamber with a
comfortable knob, the user can set the Hop-Up in a precise and lasting
way. Small, but a noteworthy feature is the operational bolt-catch lever
as well as a double-sided magazine release
button and a selector plate. The replica has a new type of SF
telescopic stock with a refreshed design.
AR15 replicas by E&L
are equipped with a specially designed, reinforced gearbox V2.It
features a Quick Spring Release system that allows for rapid change of the
main spring. It allows for quick adaptation of the replica’s power to the
needs of the user via main spring exchange without the need to take out and
open the gearbox and, as a result, the need to have access to a workshop or
special tools. All that is necessary is to loosen the stock slide ring, unscrew
the stock and remove the spring slide, which lasts literally several
seconds!
What components
exactly will we find inside PLATINUM E&L AR15?
- the new type, reinforced
gearbox frame is mounted on 9 mm ball bearings and adapted to the Quick
Spring Release system
- bearing-mounted spring slide QSR (Quick Spring Release)
- a set of steel gears made with the use of precise CNC machines.
- one-piece, steel cylinder made with the use of precise CNC machines
- a sealed nozzle with additional O-ring
- a set of 9 mm ball bearings
- reinforced POM piston
- a muffled piston head
- low-resistance, silver-plated wiring
- efficient High Torque M170 motor on neodymium magnets
The set
includes a steel, Mid-Cap magazine with a capacity of up to ~120 BBs.
The set
does not include a battery or a charger.
The set
includes:
- replica
- magazine
- manual
- flip-up iron sights for a RIS rail
- 3 exchangeable pistol grip panels
NiCd
rechargeable battery is characterized by high efficiency
current-carrying capacity, but there are disruptive effect on memory.
Should be unloaded and loaded in the full cycle, ie, it is recommended
to fully discharge, and after unloading must charge the battery
immediately without leaving it for a long time in a discharged state.
NiMH batteries have a higher self-discharge over time and shorten the
life - on the other hand, they earn about 30% more capacity.
Blow back is a simulation system of the cocking lever - it imitates the work of it as the equivalent sharp. This system raises the realism and adds a lot more experience during shooting.
It is the spped of bb, while its leaving the innerbarrel of replica. This speed is measured in FPS (Feet Per Second).
1 FPS = 0,3 m/s
1 J = 99 m/s
1 J = 326,7 FPS
Indications v2, v3, v6 does not mean the level of advance, but only shape of gearbox skeleton which was used and selected by the manufacturer depending on the capabilities of the body of the replica. For example, a models of the M4/M16 family, MP5, have a v2 gearbox, while the AK family have gearbox v3.
Hop-Up system is used for overclocking bb during the shot (putting it in rotation), through which, it extends its flight path. Acting laws of physics make that bb lift up, while the gravitational force take it down. Appropriate adjustment of Hop-Up, will compensate for these two factors, which result in long and straight flight for longer distance and be greater focus shot (to improve accuracy).
