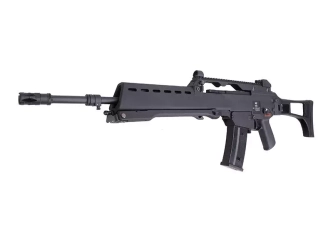

G39E carbine replica
- Made of: plastics+ metal
- Length: 1015 / 745 mm
- Weight: 3700 g
- Muzzle velocity: ~430 FPS
- Manufacturer: WE

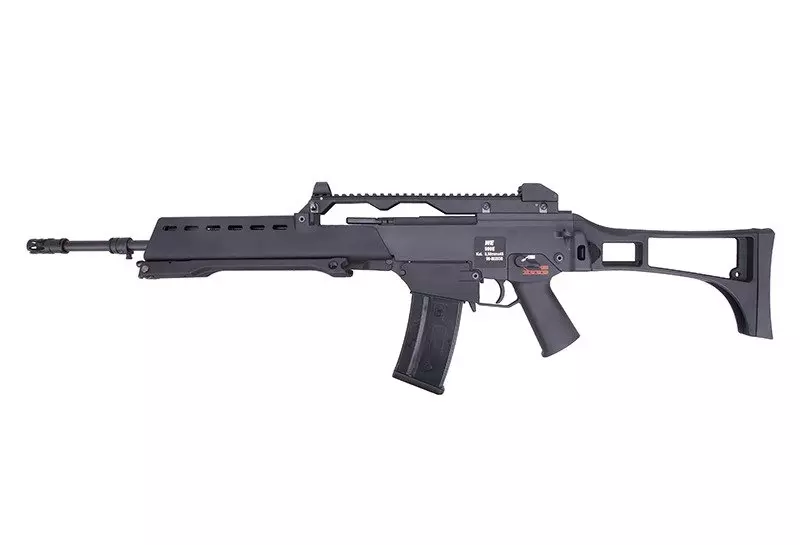

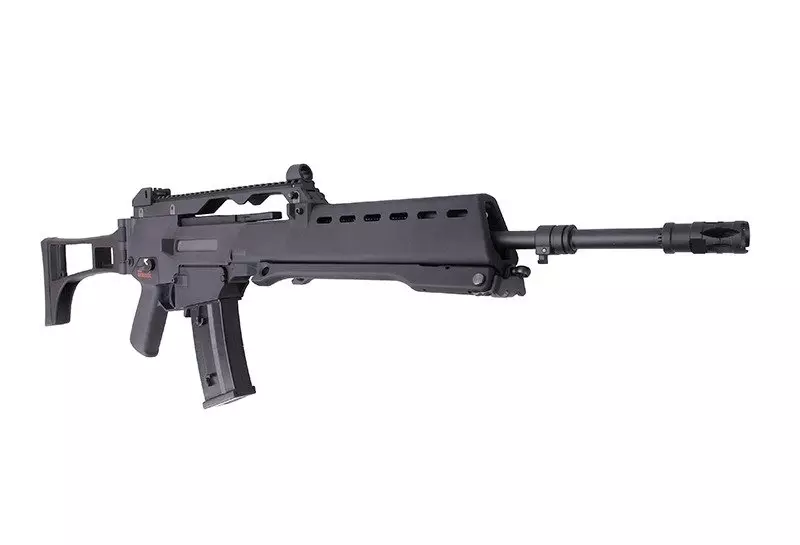

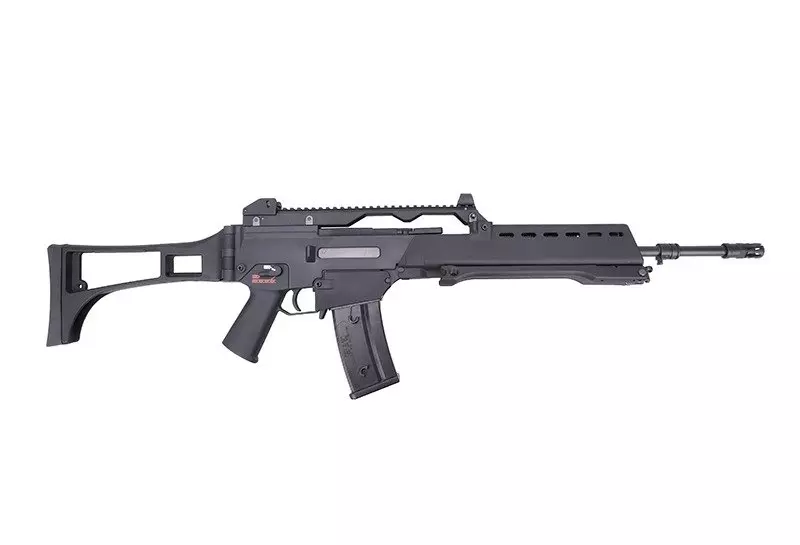

G39E carbine replica
The G39E replica is made by the WE company and is based on the TM’s constructions. It is fully compatible with the standards set by TM and, what is followed by this, with the parts of other manufacturers which’s constructions are also based on the Tokyo Marui standard.

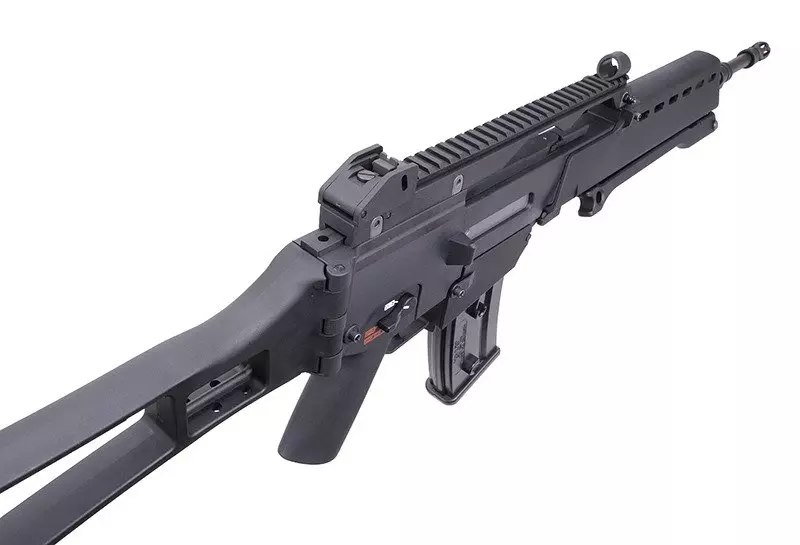

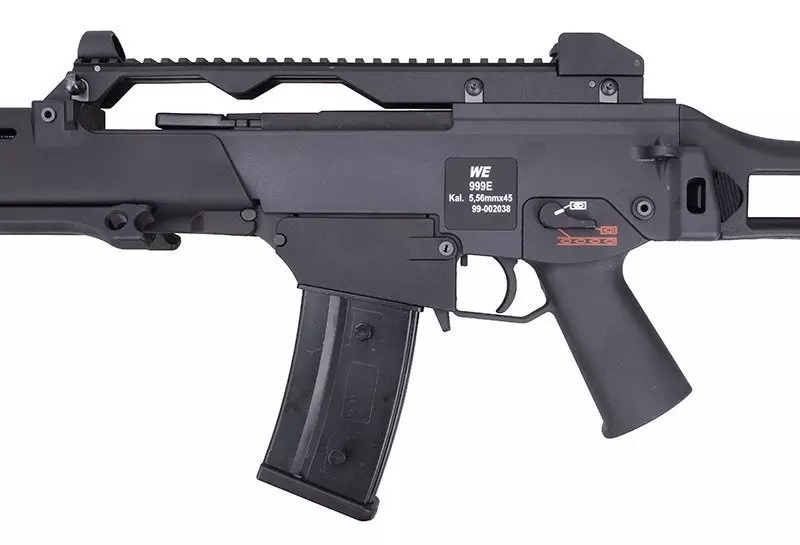

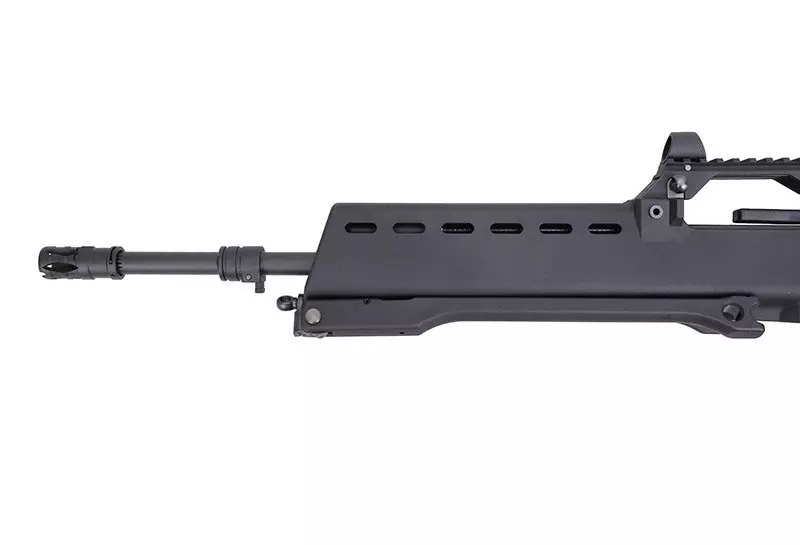

Just like the original, the replica is made mostly of light and durable plastic. the barrel, the 22mm RIS rail set and most of the minor elements such as the pins, the trigger, the firing mode selector lever and so on are made of metal. The whole construction is made in a modular system and is equipped with a RIS rail set which allows to attach additional equipment such as aiming devices and also a tactical grip, a laser target pointer or a under-slug grenade launcher.

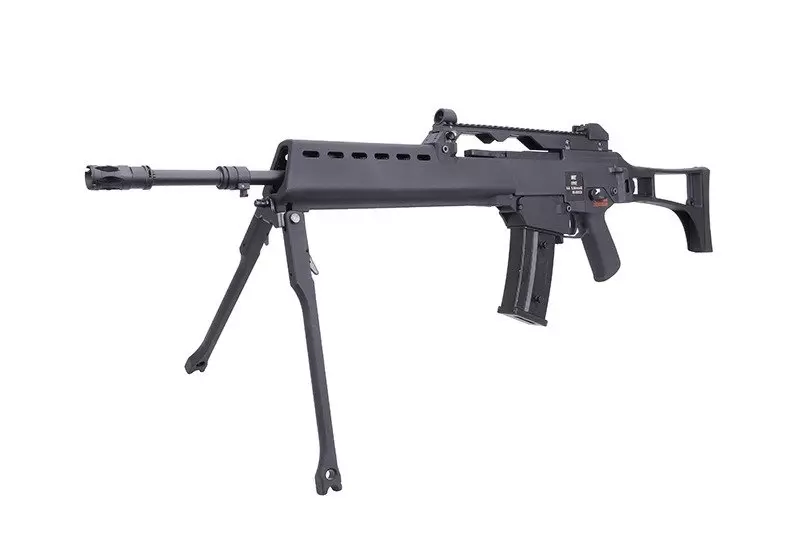

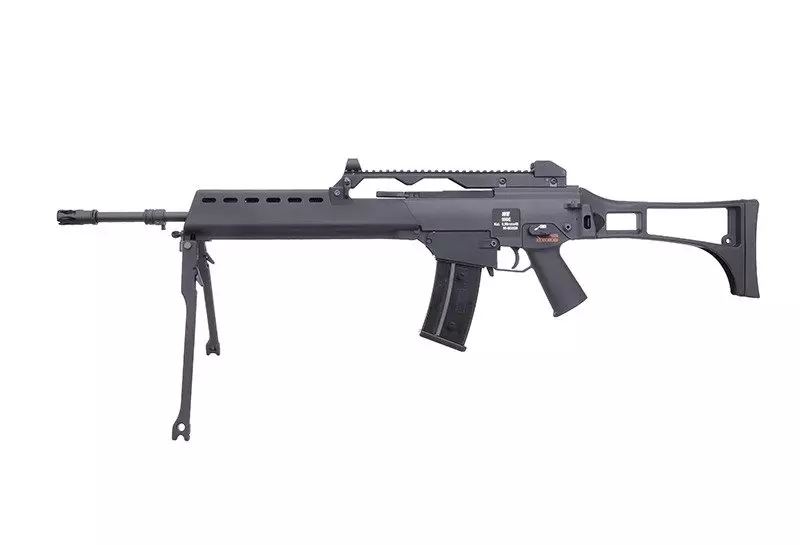

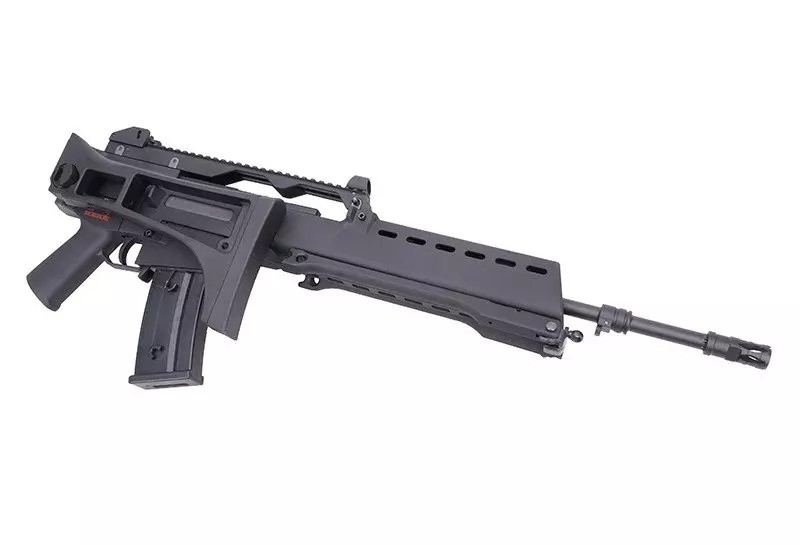

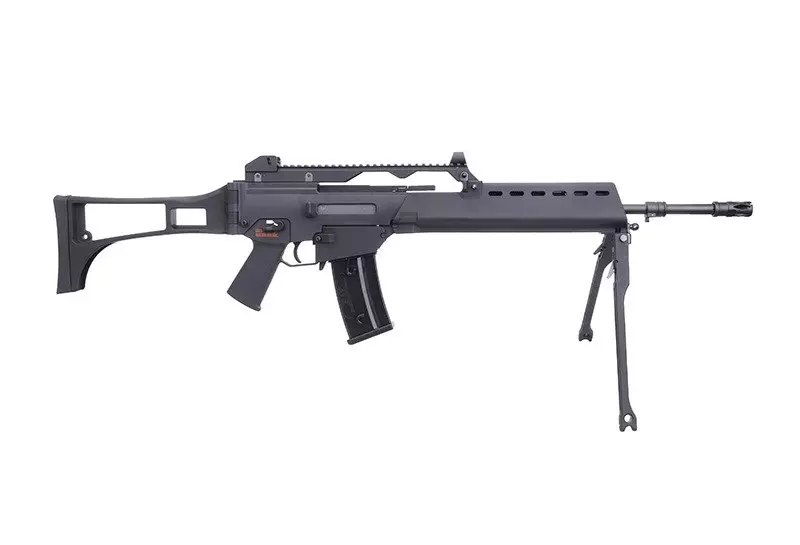

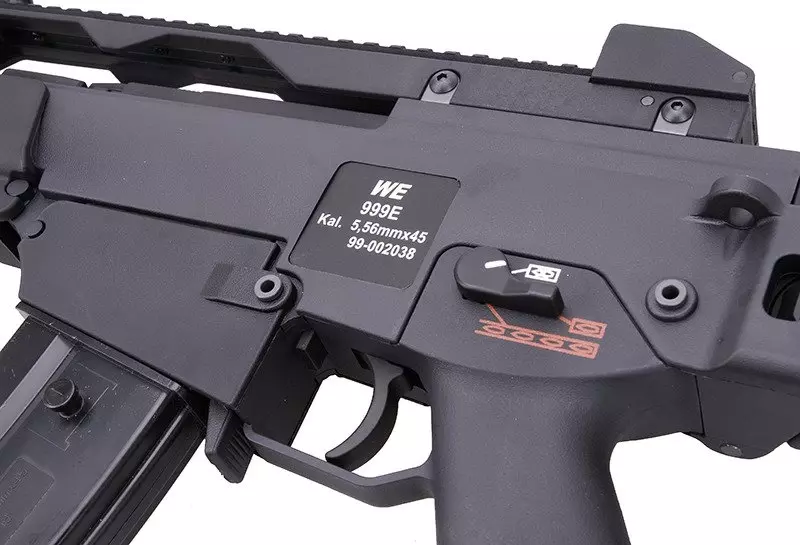

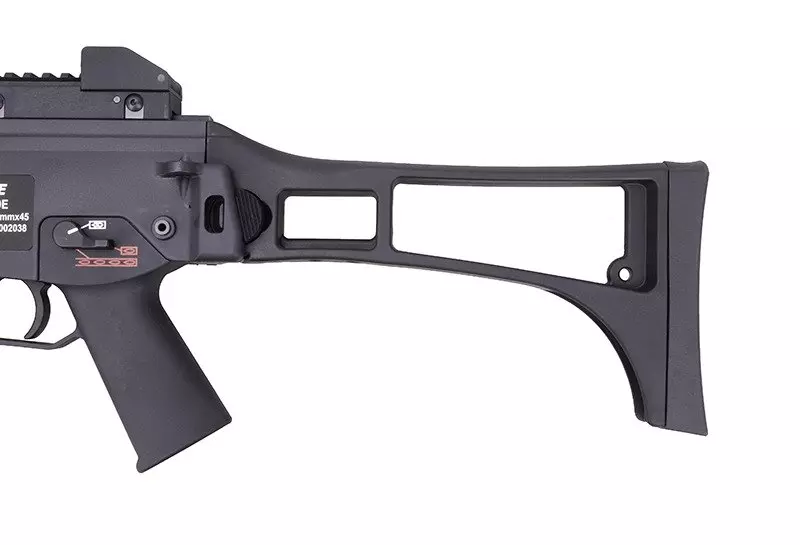

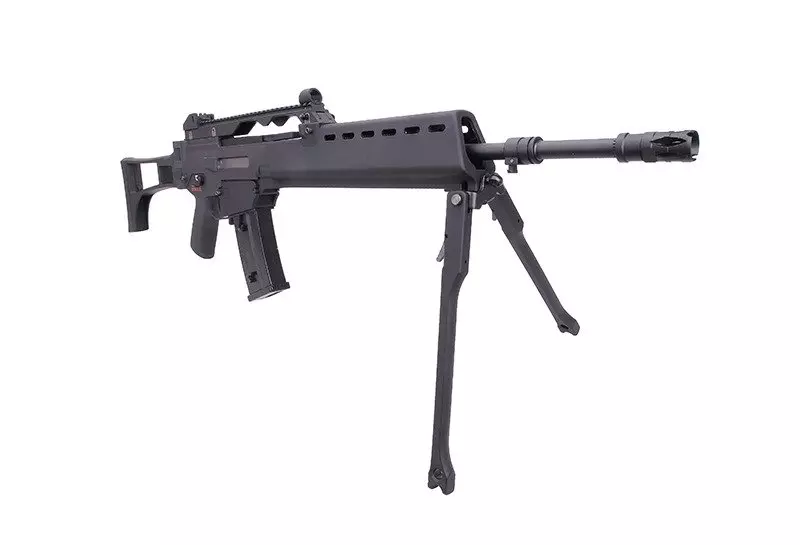

The next important features, which increase the replica’s usefulness, are the ambidextrous firing mode selector lever and the side-folded stock which is equipped in an anti-skid stock’s foot, it is also equipped with a tactical sling attachment points and also a foldable bipod.

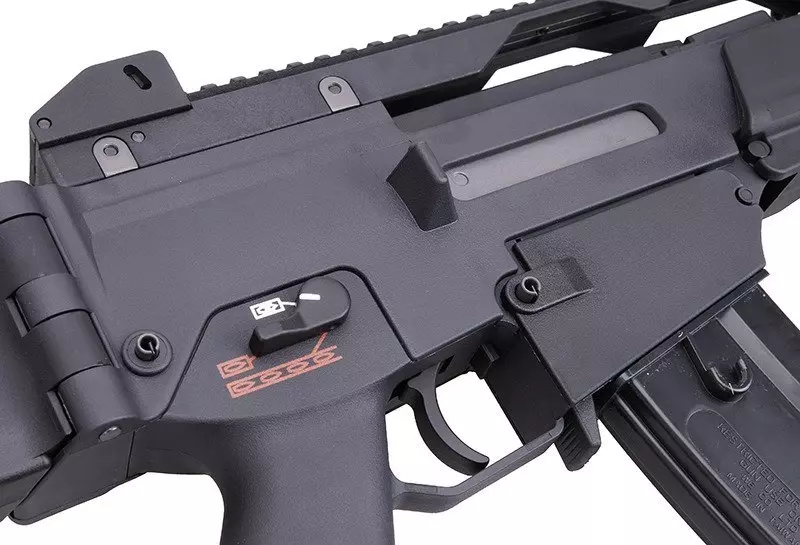

The inner construction itself is a compromise between innovation and functionality. The WE company managed to introduce a number of functional and vital changes which do not influence the TM standard at the same time.the main spring release is one of the most important and characteristic modifications, it is connected with the firing mode selector lever. Whenever you place the firing mode selector lever on the SAFE position, the main spring is released thanks to what there are no undesired tensions inside the gearbox. This allows to significantly increase the lifespan of the mechanical elements and also preserve the main spring’s toughness.
The reinforced and made of 8mm metal ball bearings gearbox hides steel
thread-wheels and a light polycarbonate piston which has got a rather original
head which, thanks to its built, allows for a better placing and direction of
the air stream. It is done by equipping it with a number of directed output
channels. The cylinder’s head is equipped with full sealing which,
additionally, serves as amortization for the piston’s head. The whole is
powered with a motor which has got an increased torque and a regular main
spring.
Thanks to the basic muzzle velocity of about 430 FPS,
the replica is perfect to be used on middle distances. Nevertheless, thanks to
the used parts of the highest quality it is possible to quickly and effectively
power tune up the replica.
The set includes:
- the replica,
- the magazine,
Blow back is a simulation system of the cocking lever - it imitates the work of it as the equivalent sharp. This system raises the realism and adds a lot more experience during shooting.
It is the spped of bb, while its leaving the innerbarrel of replica. This speed is measured in FPS (Feet Per Second).
1 FPS = 0,3 m/s
1 J = 99 m/s
1 J = 326,7 FPS
Indications v2, v3, v6 does not mean the level of advance, but only shape of gearbox skeleton which was used and selected by the manufacturer depending on the capabilities of the body of the replica. For example, a models of the M4/M16 family, MP5, have a v2 gearbox, while the AK family have gearbox v3.
Hop-Up system is used for overclocking bb during the shot (putting it in rotation), through which, it extends its flight path. Acting laws of physics make that bb lift up, while the gravitational force take it down. Appropriate adjustment of Hop-Up, will compensate for these two factors, which result in long and straight flight for longer distance and be greater focus shot (to improve accuracy).
