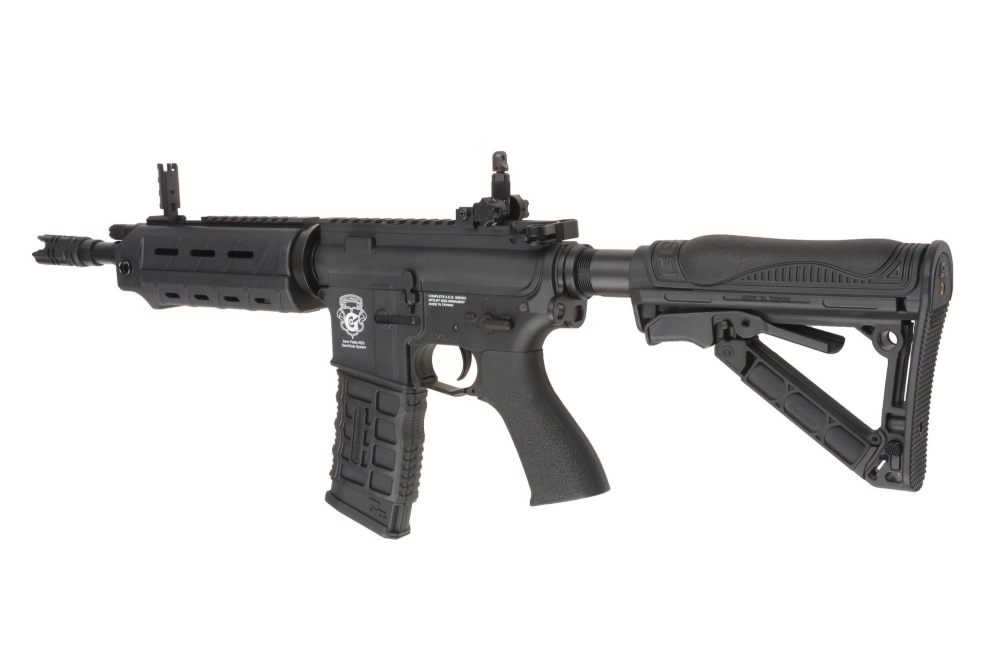

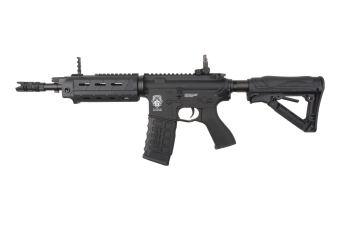

GR4 G26 Standard Carbine Replica - black
- Material: Metal + Polymer + Steel
- Weight: 2265 g
- Length: 700 - 800 mm
- Muzzle Velocity: ~410 FPS
- Engine: Electric
- PBB System (Pneumatic Blow-Back)
- Manufacturer: G&G

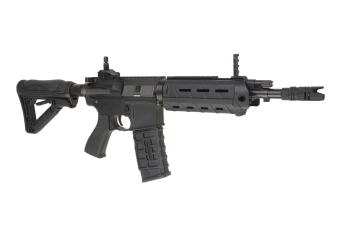

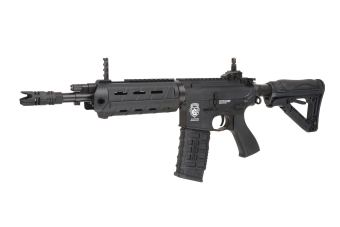

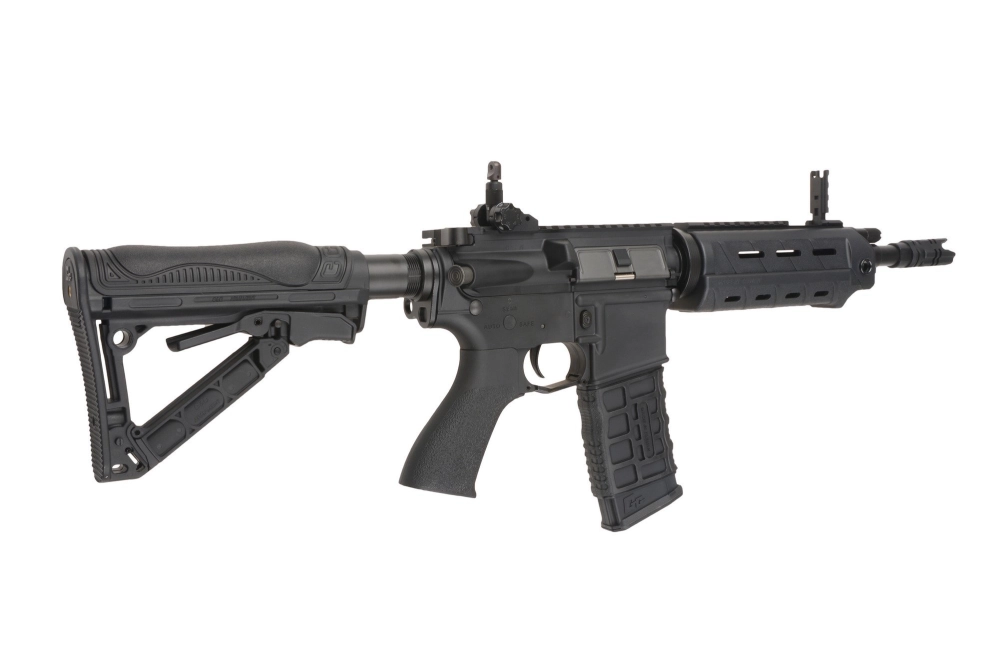

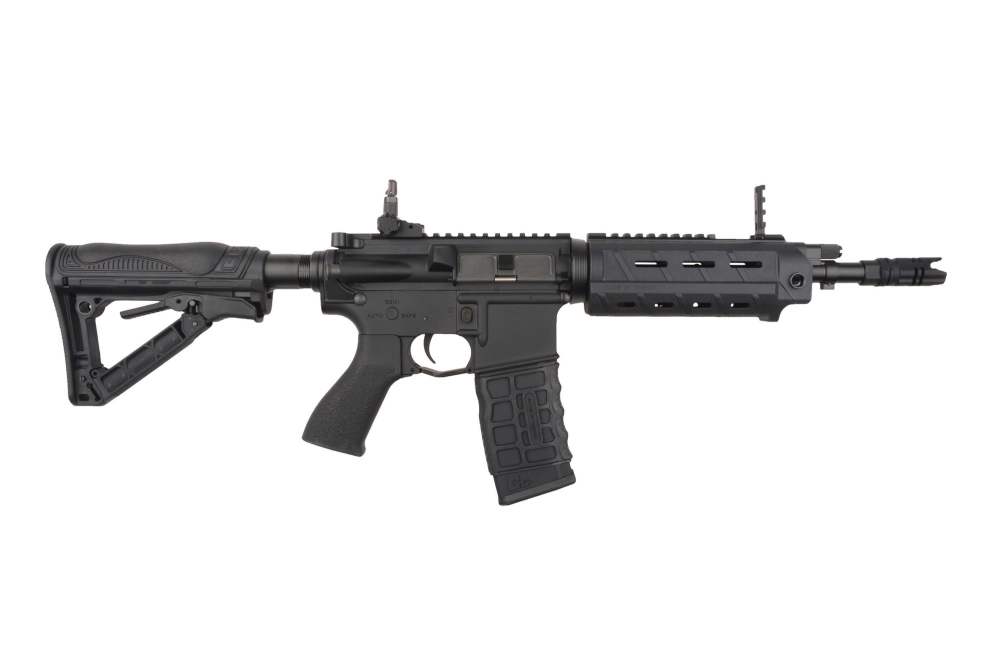

GR4 G26 Assault Rifle Replica
GR G26 assault rifle replica by G&G, made from metal (including steel) and
polymer. Steel elements include the shell ejection window cover, forward

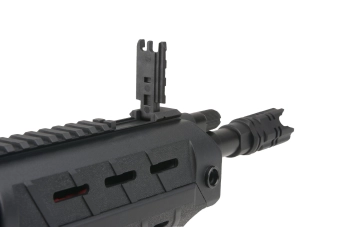

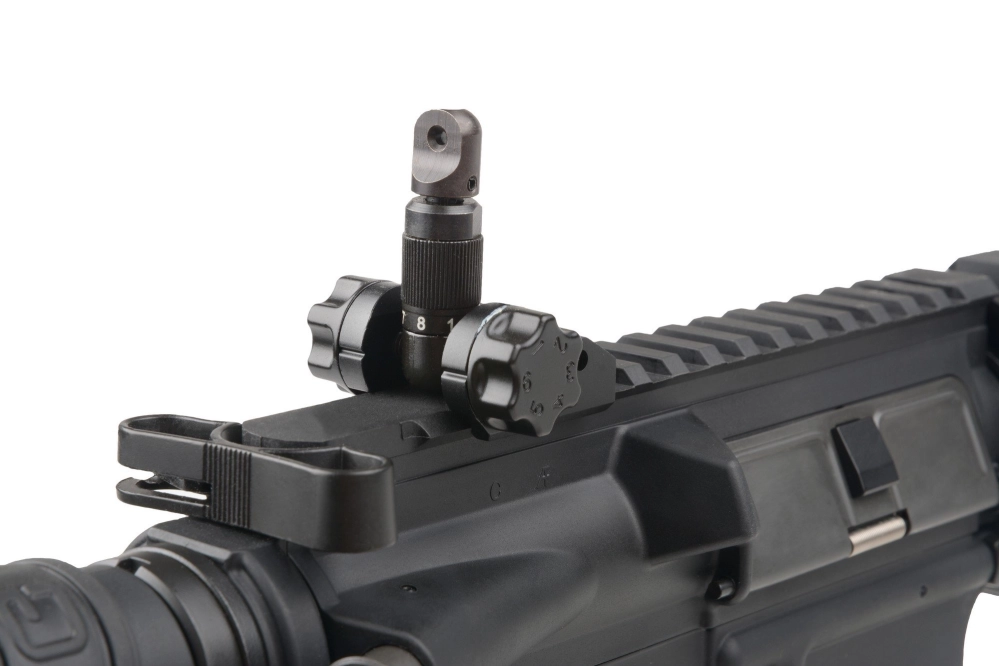

assist, trigger and flash hider as well as iron sights. Stock slide, internal
barrel and majority of small elements were made from an
uniform zinc and aluminium alloy. The stock pad, hand

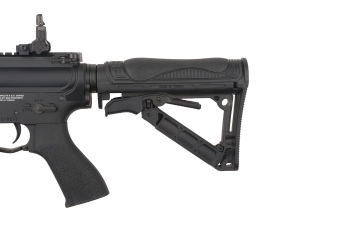

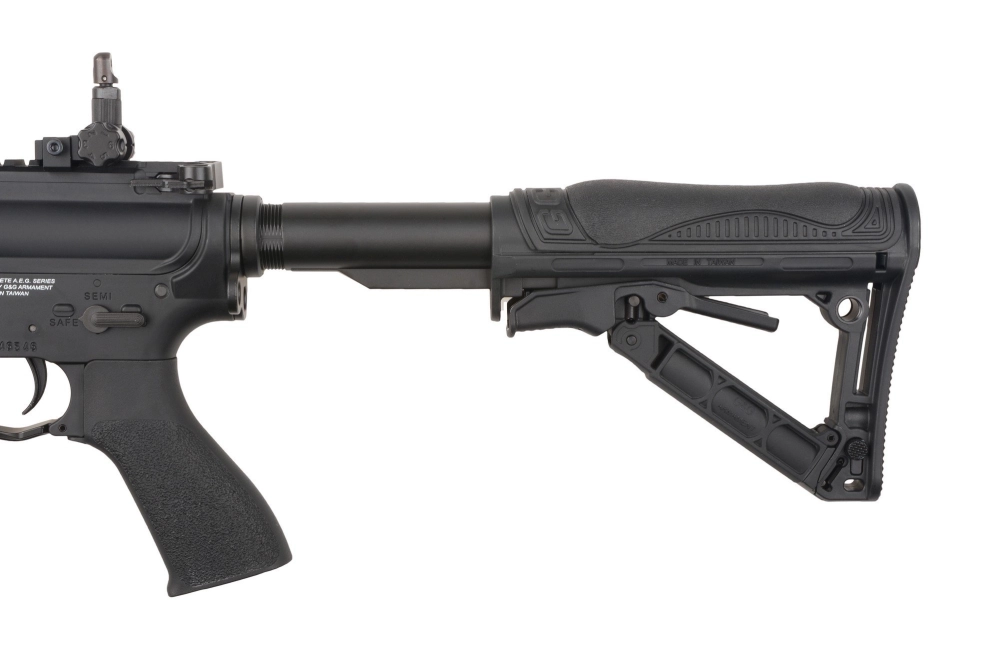

guard and receiver of the replica were made from polymer. The stock’s
length is adjustable, which allows to adapt the replica to the changing
conditions and body type of the user.
The fire mode selector is located on the left side of the receiver and is
marked with graphical descriptions of fire modes. The replicas features a
PBB system, which imitates very well the operation of the live firearm
equivalent. It sets the bolt carrier dummy into motion and provides a
noticeable “kick” of the replica into the user’s arm.
Once the charging handle has been pulled back, the shell ejection window is
opened and the bolt carrier dummy is pulled into rear position. This allows for
adjustment of the Hop-Up. What’s interesting is that also the forward assist
fulfils a crucial role here as well: when pressed it releases the
counter-reversal latch in a gearbox which releases the main spring. This
significantly prolongs the replicas lifetime by allowing to retain high muzzle
velocity due to minimizing the effects of spring degradation.
The replica was made in black colour with contrast,
pink elements. The replica is perfect for operating on a medium range due to
the implemented M120 main spring that provides a muzzle velocity of ~410 FPS.
The implemented top RIS rail allows for the attachment of any optical
sight. The battery is stored inside the hand guard.
GR4 G26 assault rifle replica is ideal as an assault weapon. Thanks to the
appropriate barrel length and tight pneumatic system, equipped with high
quality HU chamber and bucking it was possible to achieve a reasonable muzzle
velocity whilst maintaining a stable flight path of the BB and significant
range. The muzzle velocity is adequate for the replica to be safely and
effectively used in open terrain.
The replica has a phenomenal BlowBack system,
which further realism when it comes to the operation of the replica and grants
the user additional experience.
Pneumatic
Blow Back operates by diverting some of the compressed air from
the gearbox to a special cylinder located underneath the skeleton. The piston
located in the PBB cylinder moves the attached to it thin plate that imitates
the bolt.
WARNING: The manufacturer does not
recommend usage of batteries more powerful than 8,4V due to the possibility of
damaging the aforementioned plate.
G&G replicas with PBB system have a reinforced, modified gearbox V2.
Modifications entail adaptations of the gearbox to PBB system as well as an
additional of “active spring release” in the form of a forward assist
button.
The gearbox is equipped with 8 mm ball bearings, brass cylinder head and aluminium piston head.
The set
does not include a battery or a charger.
The set includes:
- rifle replica
- magazine
Blow back is a simulation system of the cocking lever - it imitates the work of it as the equivalent sharp. This system raises the realism and adds a lot more experience during shooting.
It is the spped of bb, while its leaving the innerbarrel of replica. This speed is measured in FPS (Feet Per Second).
1 FPS = 0,3 m/s
1 J = 99 m/s
1 J = 326,7 FPS
Indications v2, v3, v6 does not mean the level of advance, but only shape of gearbox skeleton which was used and selected by the manufacturer depending on the capabilities of the body of the replica. For example, a models of the M4/M16 family, MP5, have a v2 gearbox, while the AK family have gearbox v3.
Hop-Up system is used for overclocking bb during the shot (putting it in rotation), through which, it extends its flight path. Acting laws of physics make that bb lift up, while the gravitational force take it down. Appropriate adjustment of Hop-Up, will compensate for these two factors, which result in long and straight flight for longer distance and be greater focus shot (to improve accuracy).
