JG0638 V2 subcarbine replica - black
- Made of: Polymer + Metal
- Weight: 2505g
- Length: 500/720mm
- Color: black
- Muzzle velocity: ~360 FPS
- Type: AEG
- Manufacturer: JG

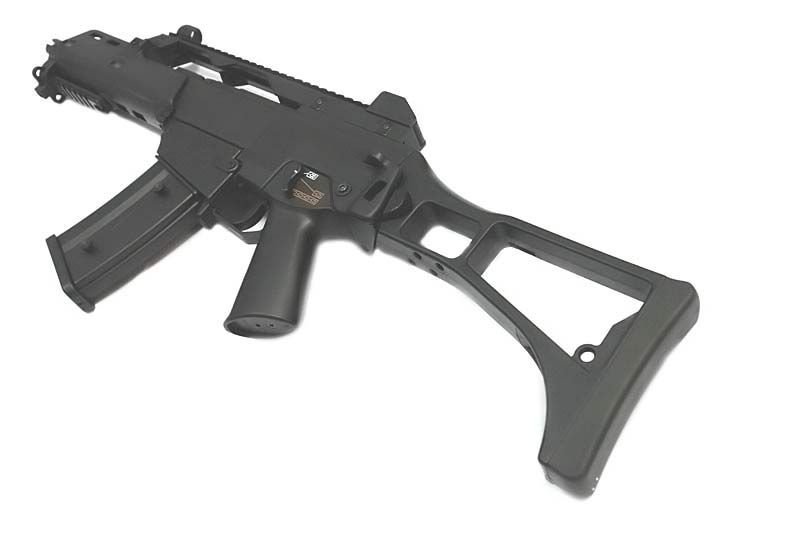

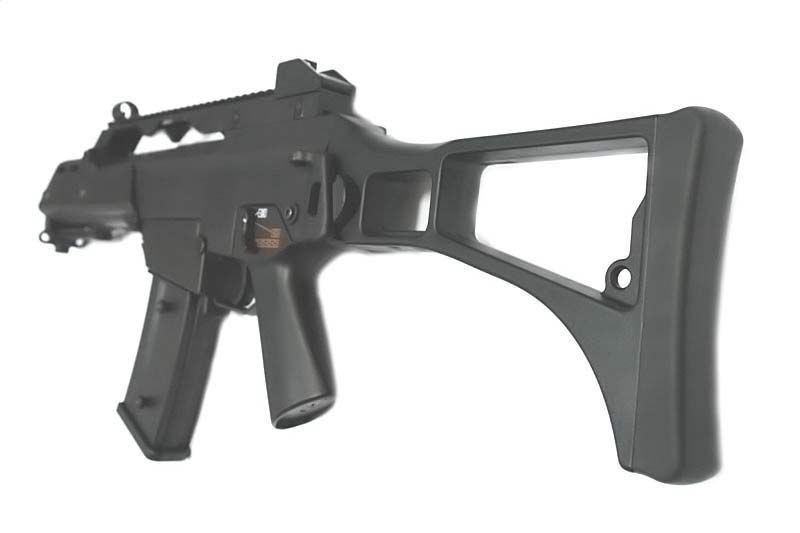

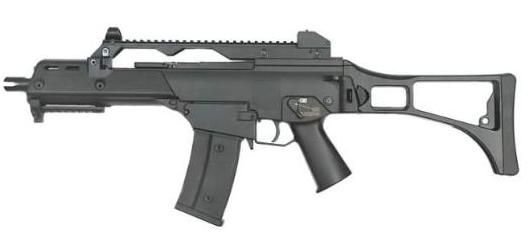

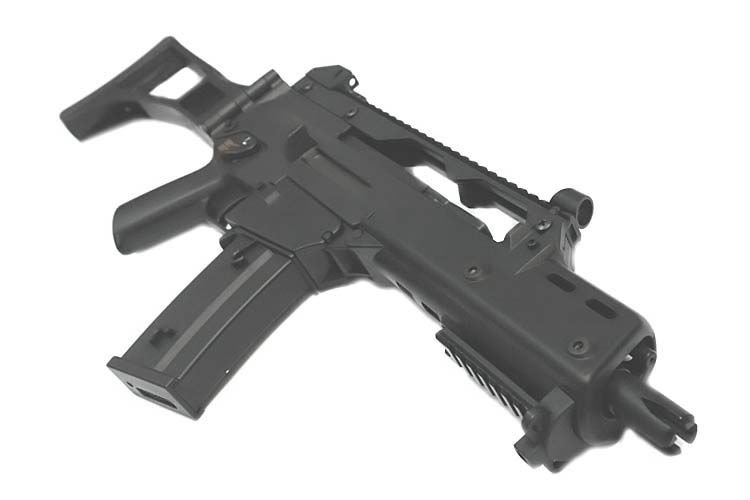

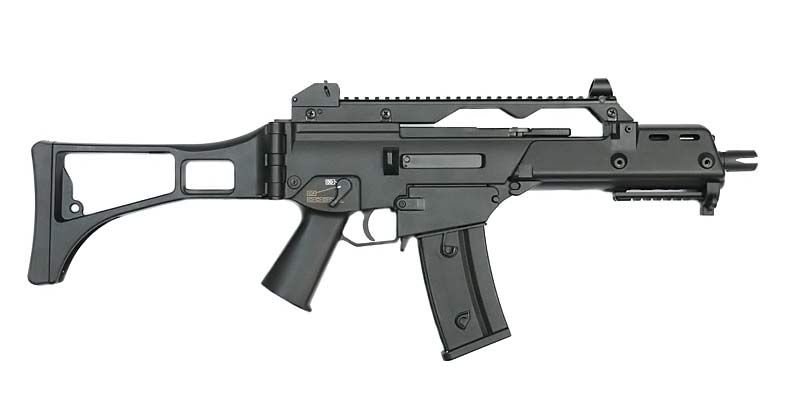

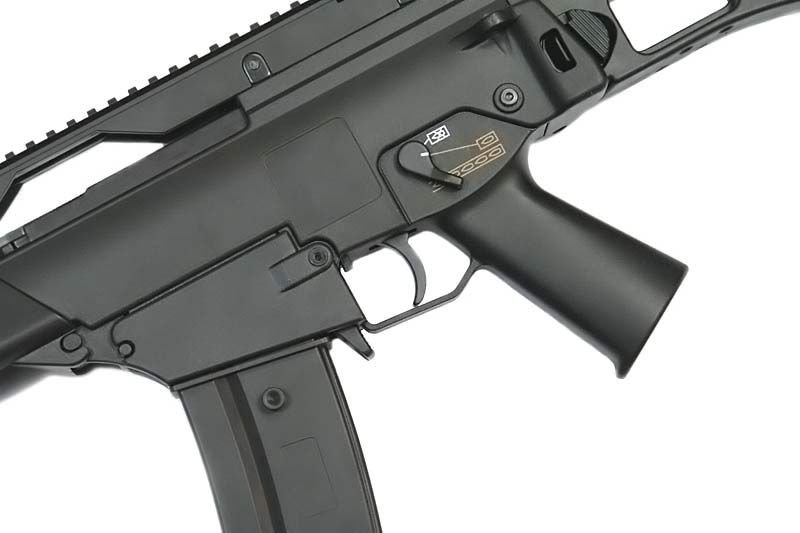

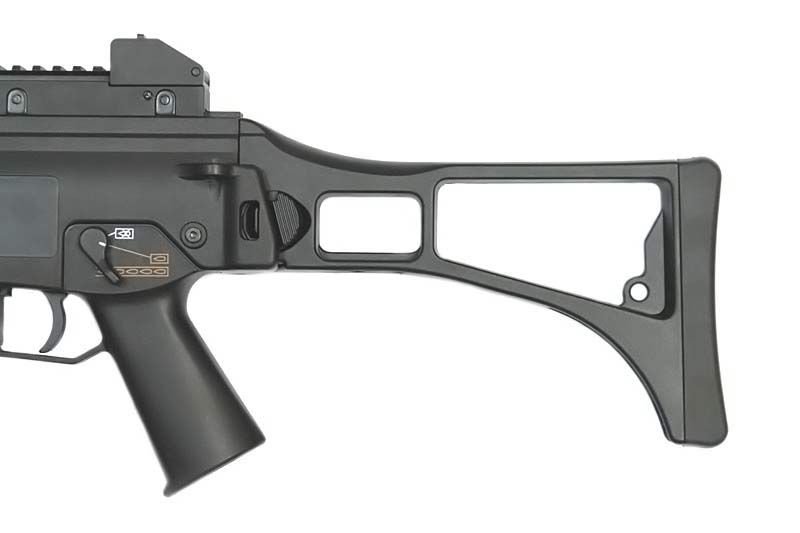

JG0638 V2 subcarbine replica
The replica is made mostly from light and durable polymer, same as its real firearm counterpart. The outer barrel, flash hider, iron sights, and front RIS rail are made from steel. The whole is exceptionally well fitted and balanced, relatively small weight and compact dimensions grant high maneuverability, which is additionally increased by stock folded to the side of the replica.
On top and and bottom side of the replica the universal 22mm RIS mounting rails were installed which allow installation of various additional accessories. The replica is built using system of modular components which for example allows easy replacement of the magazine well for M4/M16 type magazine adapter. The accumulator is located inside the front grip, it's dismantling is done by taking out one blocking pin.
Inside of the replica is also well made – it has steel gears and directional piston head for increased performance. The newest version gearbox comes with 7mm steel slide bearings.
The replica comes with 470 bb's polymer hi-cap magazine. It is equipped with press studs allowing linking of the magazines together.
The set includes:
- replica
- magazine
- accumulator
- charger
NiCd
rechargeable battery is characterized by high efficiency
current-carrying capacity, but there are disruptive effect on memory.
Should be unloaded and loaded in the full cycle, ie, it is recommended
to fully discharge, and after unloading must charge the battery
immediately without leaving it for a long time in a discharged state.
NiMH batteries have a higher self-discharge over time and shorten the
life - on the other hand, they earn about 30% more capacity.
Blow back is a simulation system of the cocking lever - it imitates the work of it as the equivalent sharp. This system raises the realism and adds a lot more experience during shooting.
It is the spped of bb, while its leaving the innerbarrel of replica. This speed is measured in FPS (Feet Per Second).
1 FPS = 0,3 m/s
1 J = 99 m/s
1 J = 326,7 FPS
Indications v2, v3, v6 does not mean the level of advance, but only shape of gearbox skeleton which was used and selected by the manufacturer depending on the capabilities of the body of the replica. For example, a models of the M4/M16 family, MP5, have a v2 gearbox, while the AK family have gearbox v3.
Hop-Up system is used for overclocking bb during the shot (putting it in rotation), through which, it extends its flight path. Acting laws of physics make that bb lift up, while the gravitational force take it down. Appropriate adjustment of Hop-Up, will compensate for these two factors, which result in long and straight flight for longer distance and be greater focus shot (to improve accuracy).
