PP-19 Bizon submachine gun replica
- Materials: steel + polymer + ZnAl
- Weight: 2430g
- Length: 485/740mm
- Color: black
- Muzzle velocity: ~400FPS
- Type: AEG
- Manufacturer: Cyma
PP-19 Bizon submachine gun replica

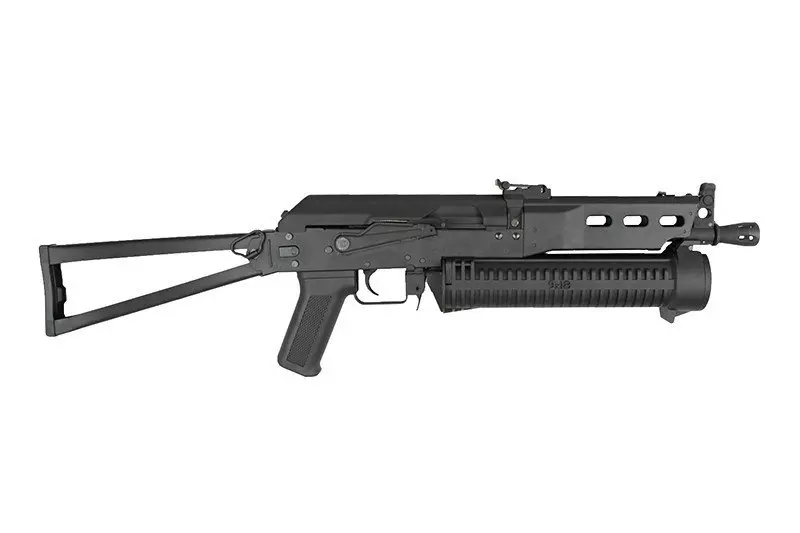

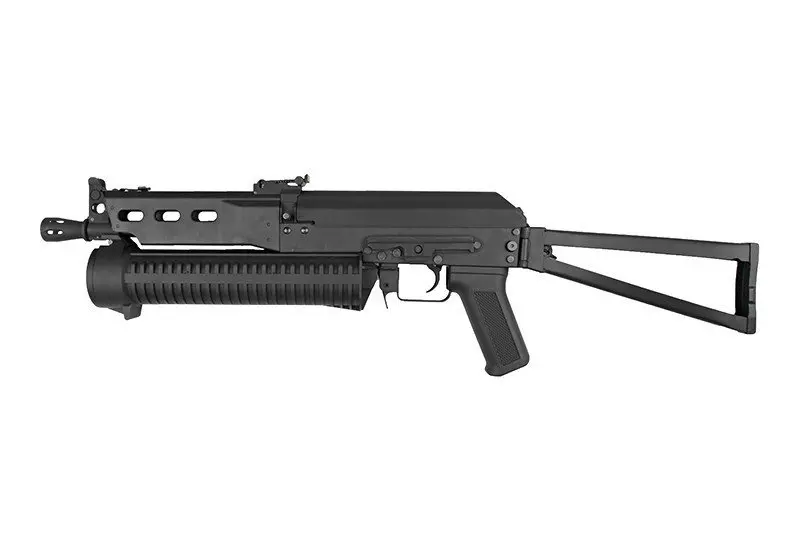

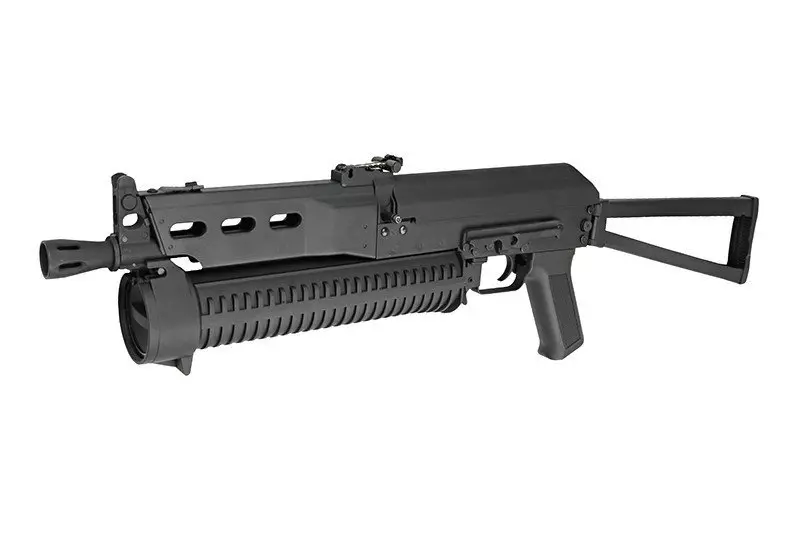

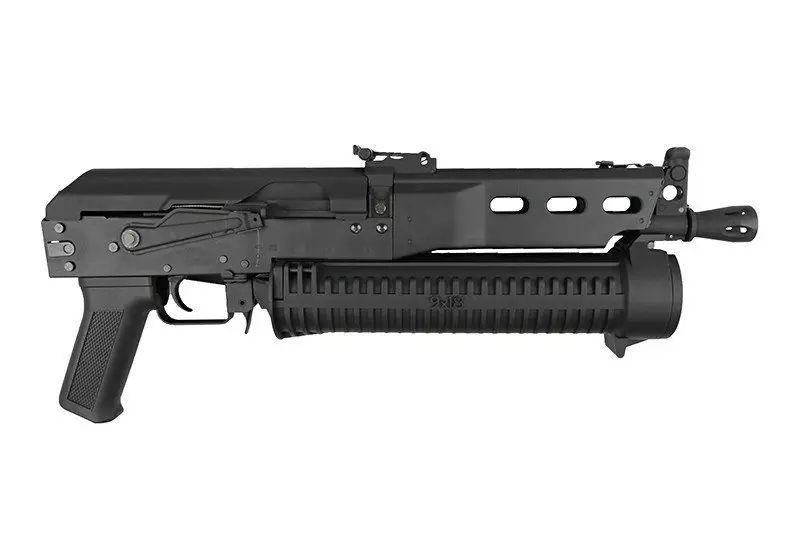

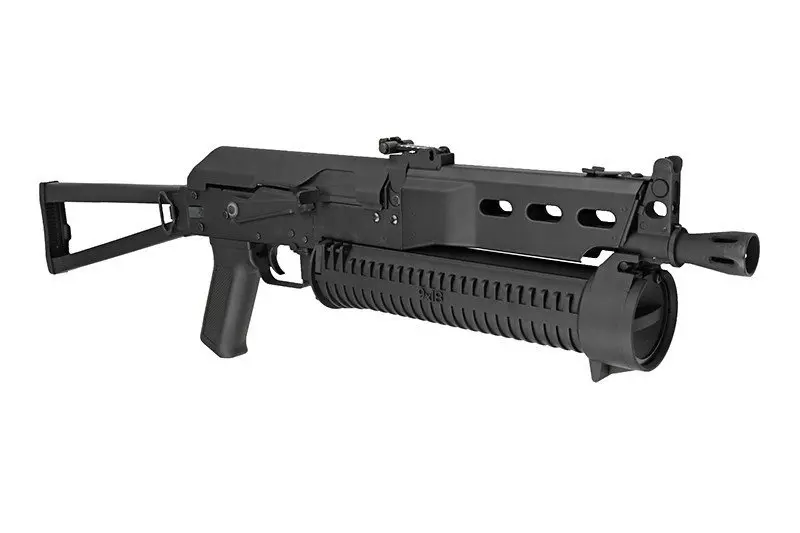

Replica of PP-19 submachine gun manufactured by Cyma. Its archetype was a Russian machine gun designed in the early 90s on the basis of the popular AK rifle. Powered 9mm ammunition (7.62mm variant also existed: Bizon-2) submachine gun with compact dimensions was dedicated to the use of special forces and police units.

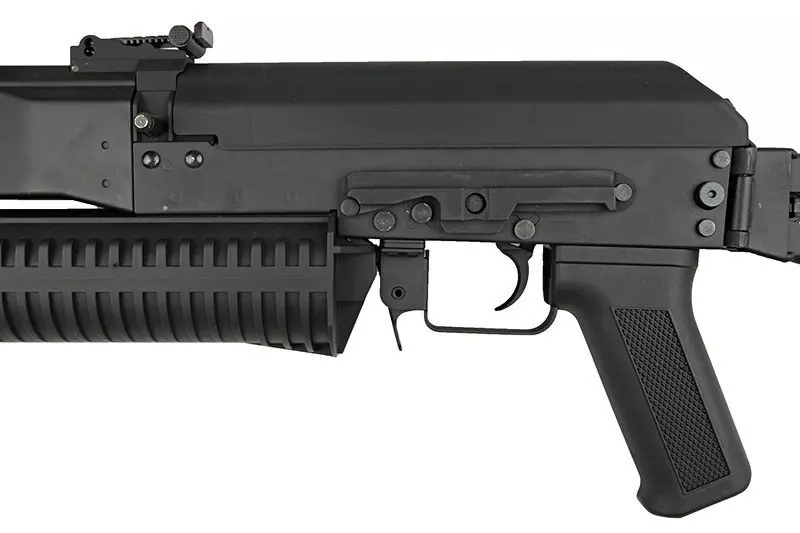

Replica is mostly is made of steel. Thus makes a solid impression, everything is also very well matched. The steel elements are: the entire body with the cover of the receiver, stock with locki, front grip and fastening pins. Other metal parts, such as dummy lock, front sight base or flash suppressor, were made from ZnAl. Pistol grip and magazine are made of reinforced plastic.

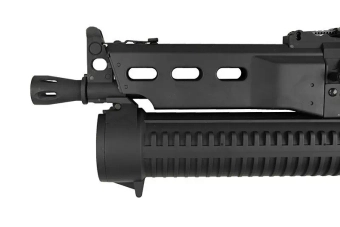

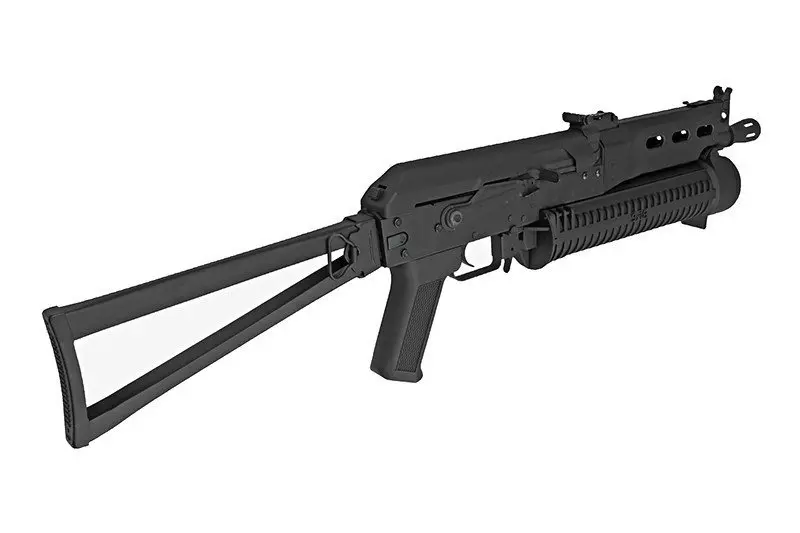

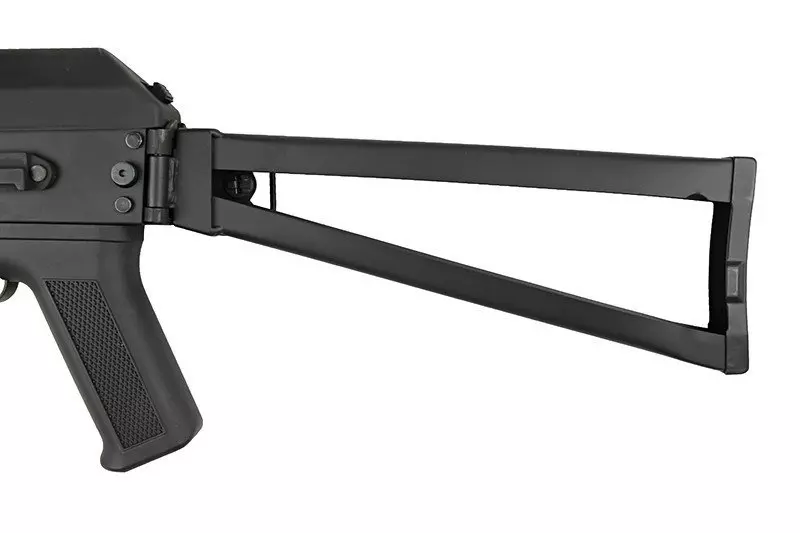

Stick type battery is located under the cover of the receiver - just like in AK-type replicas. The battery is included, so everything you need can be found in the box. The replica has a skeleton stock folding to the left. Also, there's "dovetail" side rail mount to attach dedicated optical sights or additional RIS rails. The outer barrel wnds with 14mm left-handed thread for supressor installation.
The heart of the replica is reliable gearbox v.3, which guarantees easy access to spare parts and tuning. Inside you will find a set of reinforced parts, including beared spring head and piston head, a set of steel gears and steel 7mm bearings. Whole set is driven by a high torque motor.
Thanks to its compact dimensions and good balance, PP-19 Bizon works excellently during airsoft operations on medium and short distance, also in the CQB.

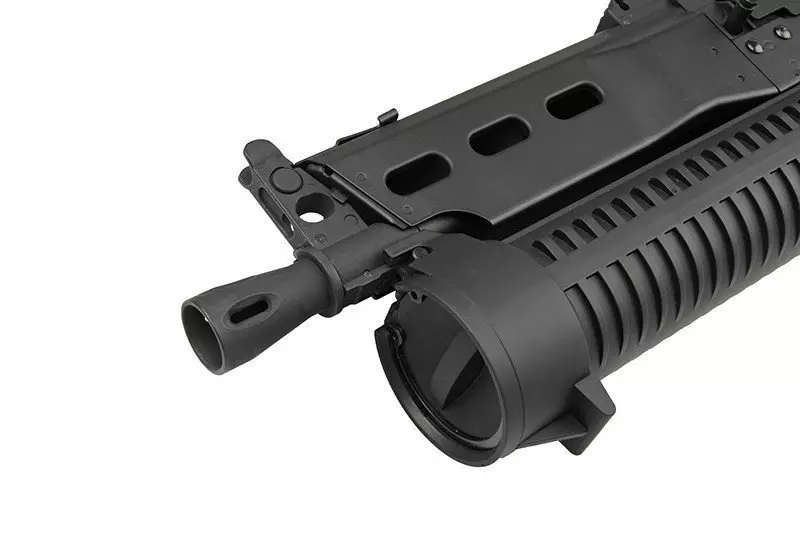

Characteristic tubular magazine is made from plastic, it's mid-cap with a capacity of 200 BB's.
Set includes:
- Replica
- Mid-Cap magazine
- Battery
- Charger
- Speedloader
NiCd
rechargeable battery is characterized by high efficiency
current-carrying capacity, but there are disruptive effect on memory.
Should be unloaded and loaded in the full cycle, ie, it is recommended
to fully discharge, and after unloading must charge the battery
immediately without leaving it for a long time in a discharged state.
NiMH batteries have a higher self-discharge over time and shorten the
life - on the other hand, they earn about 30% more capacity.
Blow back is a simulation system of the cocking lever - it imitates the work of it as the equivalent sharp. This system raises the realism and adds a lot more experience during shooting.
It is the spped of bb, while its leaving the innerbarrel of replica. This speed is measured in FPS (Feet Per Second).
1 FPS = 0,3 m/s
1 J = 99 m/s
1 J = 326,7 FPS
Indications v2, v3, v6 does not mean the level of advance, but only shape of gearbox skeleton which was used and selected by the manufacturer depending on the capabilities of the body of the replica. For example, a models of the M4/M16 family, MP5, have a v2 gearbox, while the AK family have gearbox v3.
Hop-Up system is used for overclocking bb during the shot (putting it in rotation), through which, it extends its flight path. Acting laws of physics make that bb lift up, while the gravitational force take it down. Appropriate adjustment of Hop-Up, will compensate for these two factors, which result in long and straight flight for longer distance and be greater focus shot (to improve accuracy).
