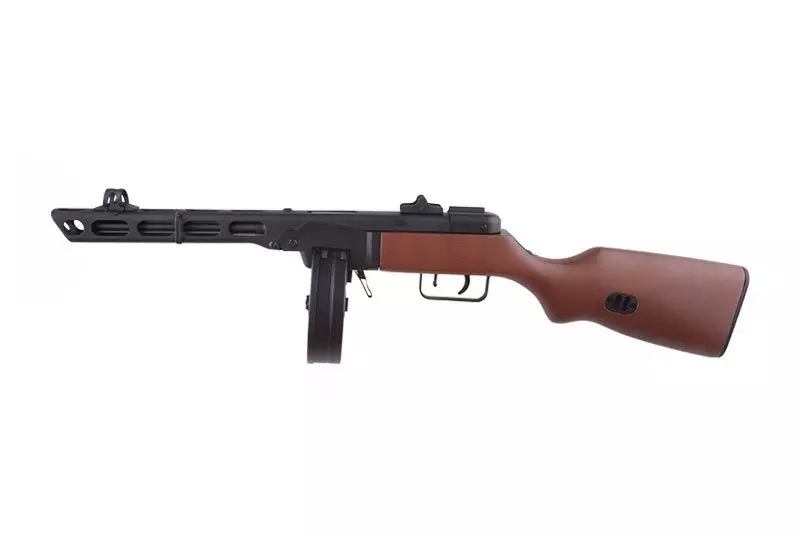

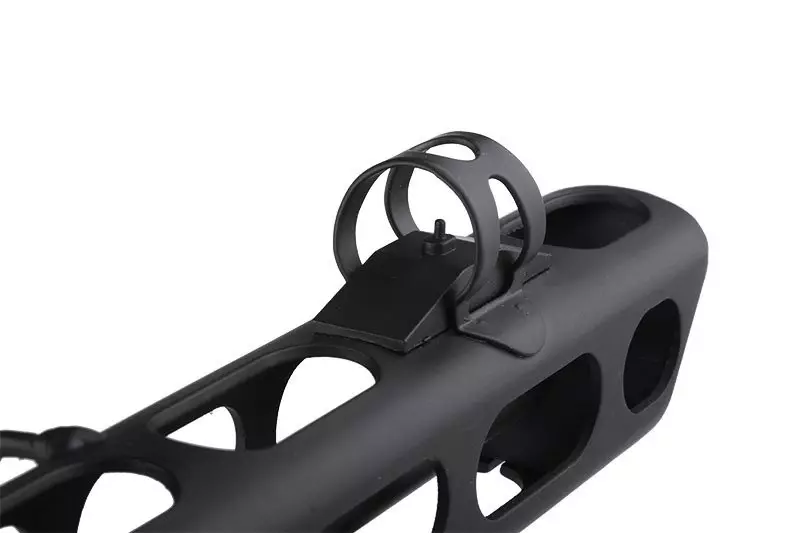

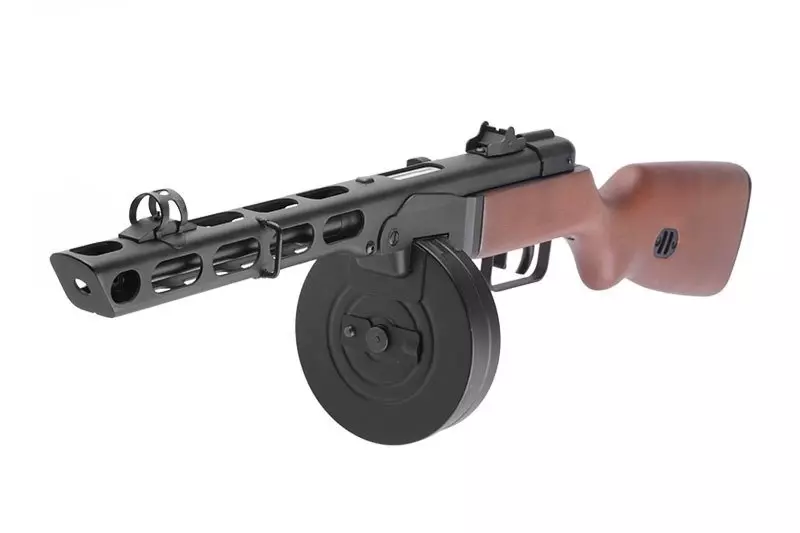

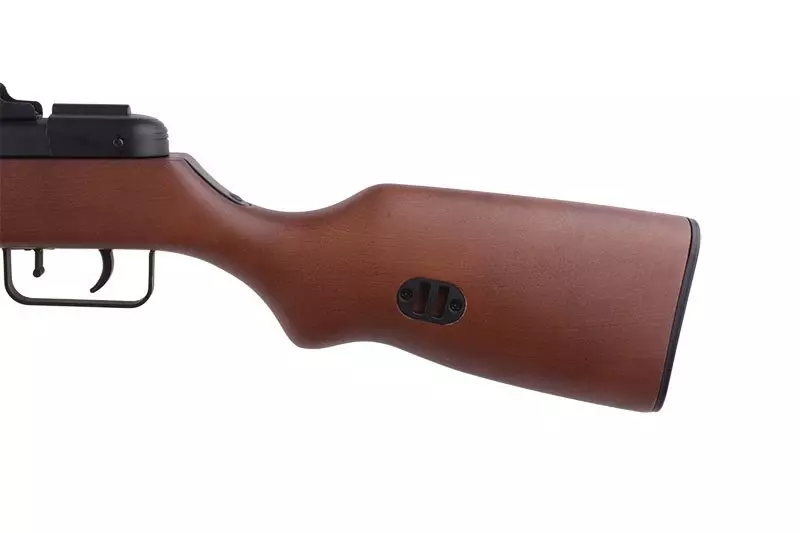

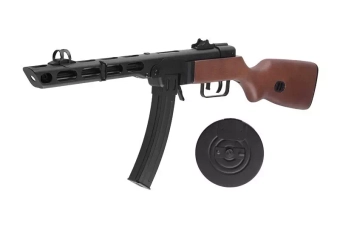

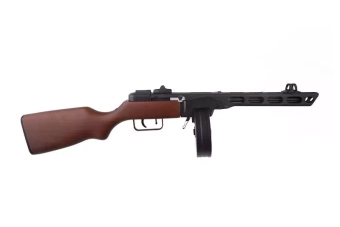

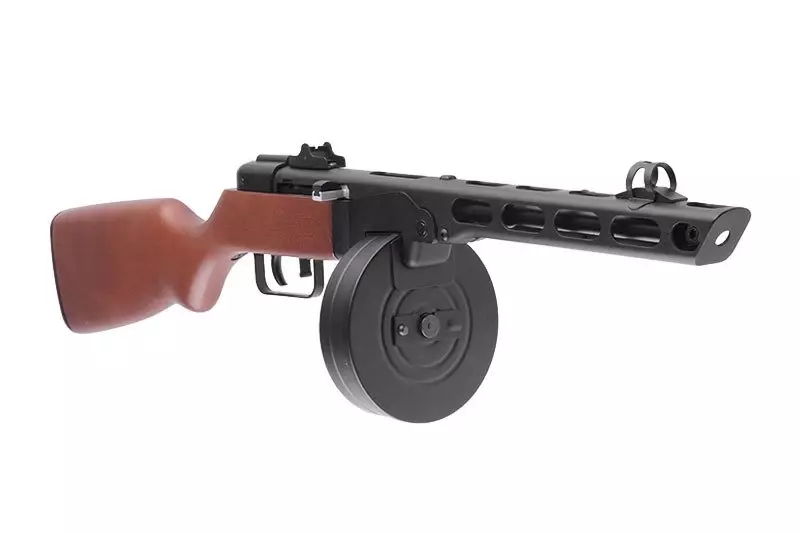

PPSH “Pepesha High Speed” Custom Submachine Gun Replica
- Material: Steel + ZnAl + wood
- Length: 840 mm
- Weight: 3595 g (w/o magazine)
- Color: Black / Wood
- Muzzle Velocity: ~340 FPS
- Engine: Electric
- Manufacturer: Snow Wolf / GF Custom Division
PPSH “Pepesha High Speed” Custom Submachine Gun
Replica
GF
Custom Division is an
idea born in the heads of the Gunfire airsoft team. We want to offer you
the highest-quality replicas modified and configured by our team using the
best, tested parts and accessories. No element of the replica is there for no
reason - these are exactly the kind of configurations that we would like to use
in the field. In custom work on replicas helps our many-year airsoft experience
and it can be easily summed up that GF Custom Division is a project created
100% by players for players.
The
base for this custom replica was the historical replica of Soviet submachine
gun PPSH by Snow Wolf in a version with wooden stock, which features
following internal parts:
- double air-sealed, aluminum CNC nozzle by Maxx
Model Products
- chrome type 1 Guarder cylinder
- set of SHS 12:1 steel gears
- silenced piston head + E&L cylinder head
- Specna Arms polymer piston (14 steel teeth)
- 275 mm long steel PPS 6.03 mm precision barrel
-Hop-Up Modify bucking
- neodymium, short SHS High Torque motor
- 8 mm SHS ball bearings
- set of SHS shims
The
replica’s gearbox was assembled by us practically from scratch. It’s parts are
ideally aligned, air-sealed and shimmed which allows the replica
to generate very stable ~340 FPS. The replica features short stroke and custom
delayer of the forward assist, which allows it to have very high rate of
fire (30 BBs per second when using a 11.1V battery). Implemented
modifications make PPSH “Pepesha” Custom an ideal replica for CQB games.
Accurate
hits are ensured by Flat-Hop system based on Modify bucking in
combination with a PPS precision barrel with a diameter of 6.03 mm.
Attention:
due to introduced modifications,
firing in semi-auto mode is only possible when using a 7.4V battery.
The
replica comes with two magazines - the first one is a drum magazine with a
capacity of 2000 BBs and the second is an arc magazine with a capacity of 540
BBs.
The set does not include a battery or a charger.
The set includes:
-
replica
- drum 2000 BB magazine
- arc 540 BB magazine
- User’s manual
It is the spped of bb, while its leaving the innerbarrel of replica. This speed is measured in FPS (Feet Per Second).
1 FPS = 0,3 m/s
1 J = 99 m/s
1 J = 326,7 FPS
Indications v2, v3, v6 does not mean the level of advance, but only shape of gearbox skeleton which was used and selected by the manufacturer depending on the capabilities of the body of the replica. For example, a models of the M4/M16 family, MP5, have a v2 gearbox, while the AK family have gearbox v3.
Hop-Up system is used for overclocking bb during the shot (putting it in rotation), through which, it extends its flight path. Acting laws of physics make that bb lift up, while the gravitational force take it down. Appropriate adjustment of Hop-Up, will compensate for these two factors, which result in long and straight flight for longer distance and be greater focus shot (to improve accuracy).
Blow back is a simulation system of the cocking lever - it imitates the work of it as the equivalent sharp. This system raises the realism and adds a lot more experience during shooting.
NiCd
rechargeable battery is characterized by high efficiency
current-carrying capacity, but there are disruptive effect on memory.
Should be unloaded and loaded in the full cycle, ie, it is recommended
to fully discharge, and after unloading must charge the battery
immediately without leaving it for a long time in a discharged state.
NiMH batteries have a higher self-discharge over time and shorten the
life - on the other hand, they earn about 30% more capacity.
