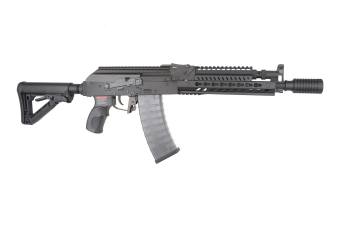

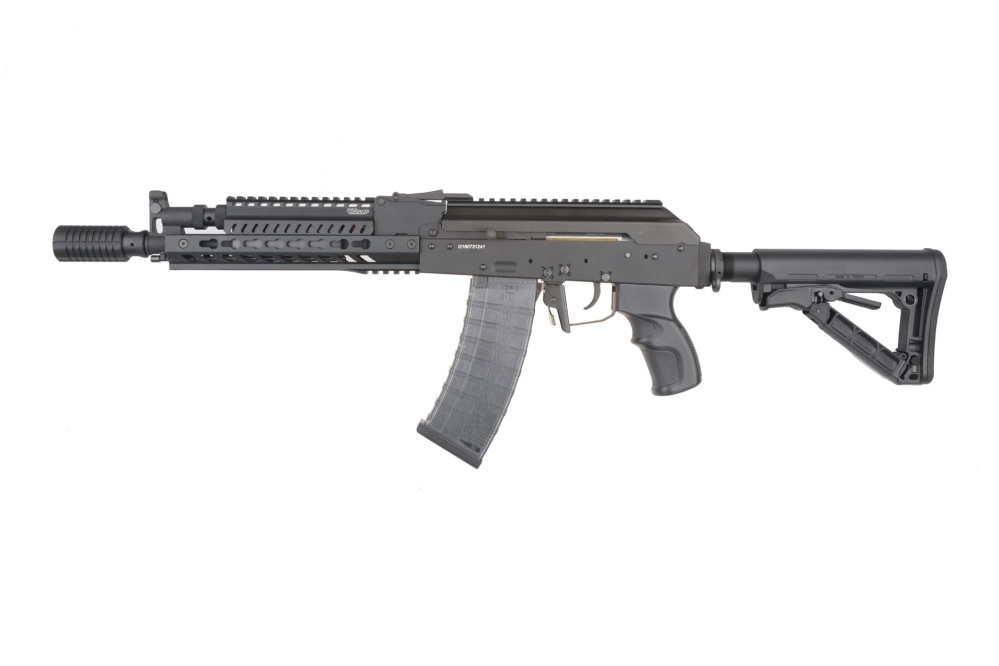

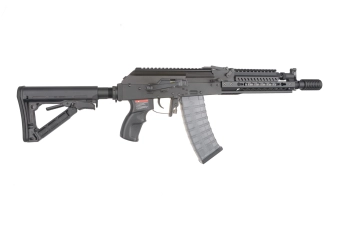

RK74-E Assault Rifle Replica
- Material: Metal + Polymer
- Weight: 3165 g
- Length: 815/970 mm
- Colour: Black
- Muzzle Velocity: ~430 FPS
- Engine: Electric
- Manufacturer: G&G
RK74-E Assault Rifle Replica
G&G has been a presence on the market for many years and always guaranteed
exceptional quality. Things are no different in the case of the new RK74 series
that consists of loyal replicas of the most famous assault rifles of the
eastern bloc. G&G in this case has decided to place their bet on
modularity, whilst retaining of course the realism.
RK74-E was created with utmost care for
details with selection of the best materials. The receiver of the replica was
made from high quality metal as well as the hand guard, stock slide, front
sight and muzzle device. Parts made from uniquely durable and elastic polymer
include the stock and pistol grip with anti-slip, ergonomic texture. Elements
such as the trigger guard, magazine release button, dust cover, rear sight, tactical
sling swivels and shell ejection plate were made from steel, which results in
the level of realism being as high as possible. Precision and quality of
craftsmanship of particular elements makes the user feel as if he or she is
holding a live firearm
RK47 series, as previously stated, is
a strictly tactical series, which grants the user huge freedom in terms of
selection of additional accessories. The hand guard features RIS rails
on top and underneath. On its sides, however, is the KeyMod
system that allows for even more options of attachments of possible
modifications. The top of the receiver features another 22 mm mounting
rail. All elements were made using CNC technology, which is yet another
proof of non-compromising quality of finish of the replica.
Double-sided charging handle can be locked
in rear position which allows for easier access to Hop-Up system
adjustment. The magazine release lever was designed in such a way so that it
would be possible to eject the magazine with index finger. Exceptionally
ergonomic stock has 6 settings, a rubber stock pad and a
compartment for, for instance, a CR123a battery. The replica, in comparison to
previous versions, is compatible with standard AK magazines which allows
the user not to worry about compatibility. The fire mode selector was
constructed in a way that allows it to be operated using a thumb.
The inside of the replica deserves
recognition. Features low-resistance wiring, MOSFET module for increased
energy efficiency and additional reinforcements for all circuits vulnerable to
electric stress and temperature. One-piece, metal Hop-Up in provides
increased tightness of systems and precise calibration. The heart of the
replica constitutes a GB V3, which together with a 6.03 mm in diameter barrel allows it to achieve a muzzle velocity of
~430 FPS and very good accuracy. The gearbox skeleton mounted on
8 mm bearings and containing metal gears was made from metal.
Furthermore, the replica has IFRIT 25k High Torque motor which in
combination with the aforementioned parts makes up for a replica with very
professional specification.
The GB aside from typical for G&G
high quality parts is equipped with an innovative ETU (Electronic
Trigger Unit) system. The system supplements the role of the MOSFET circuit. Due
to electronic operation, the system has gained a remarkable responsiveness to
the trigger. Each pull results in a full operation cycle of the GB.
The ETU system has the ability to
program fire modes. The user by default has the access to SAFE - SEMI - FULL
AUTO - 3 round burst modes. The programming process is trivial - the user
needs only to select the SEMI option and pull the trigger for 10 seconds. Once
that is done, the third option of the fire mode selector will initiate the
selected mode.
ATTENTION! The set does not include a battery or
a charger.
The set includes:
- replica
- magazine
- BB speedloader
- User’s manual
It is the spped of bb, while its leaving the innerbarrel of replica. This speed is measured in FPS (Feet Per Second).
1 FPS = 0,3 m/s
1 J = 99 m/s
1 J = 326,7 FPS
Indications v2, v3, v6 does not mean the level of advance, but only shape of gearbox skeleton which was used and selected by the manufacturer depending on the capabilities of the body of the replica. For example, a models of the M4/M16 family, MP5, have a v2 gearbox, while the AK family have gearbox v3.
Hop-Up system is used for overclocking bb during the shot (putting it in rotation), through which, it extends its flight path. Acting laws of physics make that bb lift up, while the gravitational force take it down. Appropriate adjustment of Hop-Up, will compensate for these two factors, which result in long and straight flight for longer distance and be greater focus shot (to improve accuracy).
