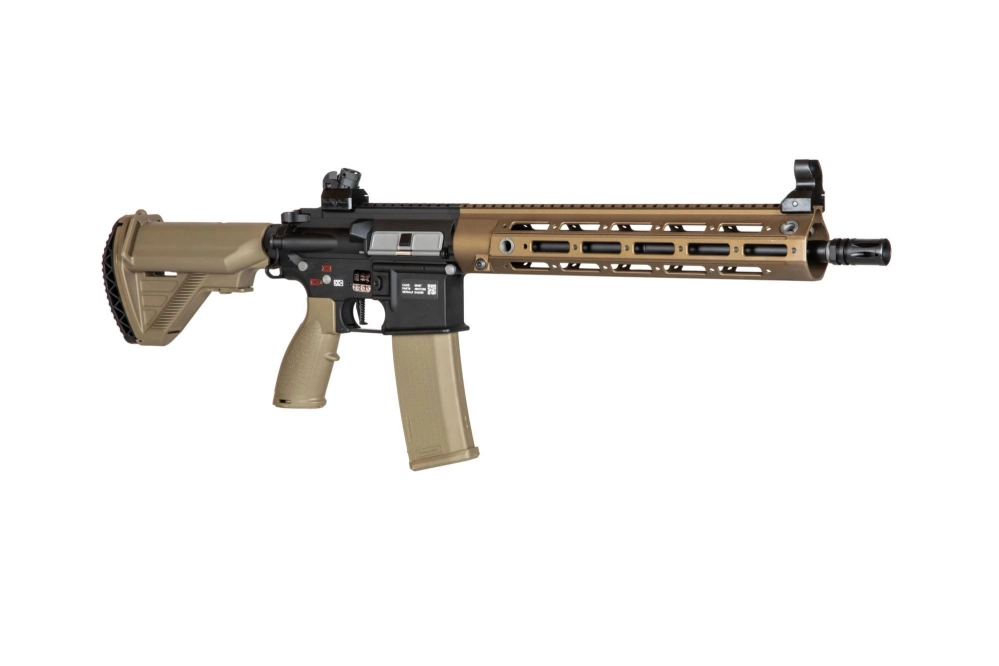

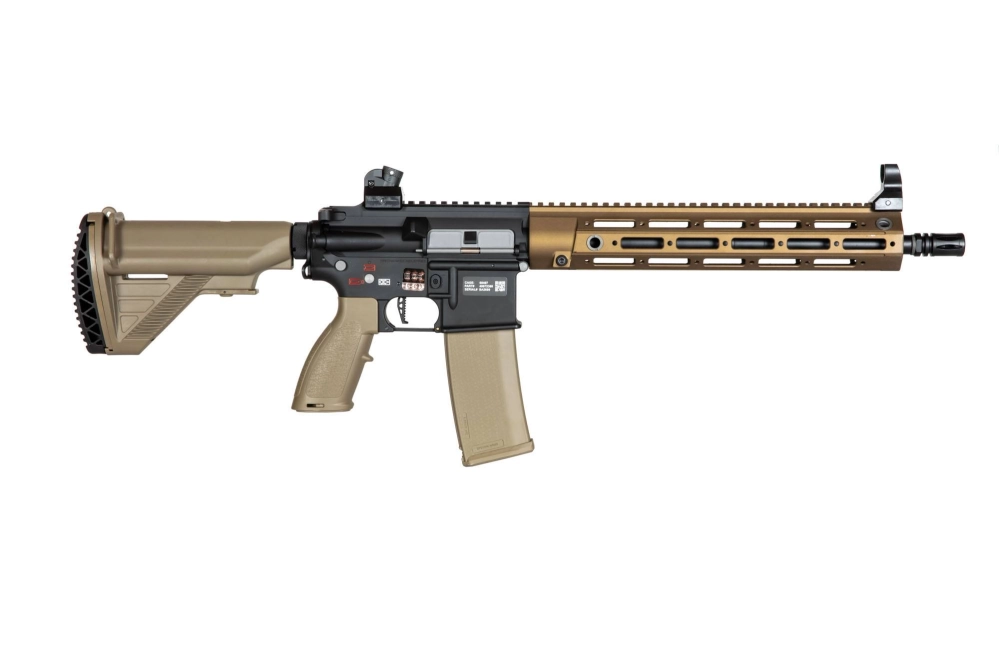

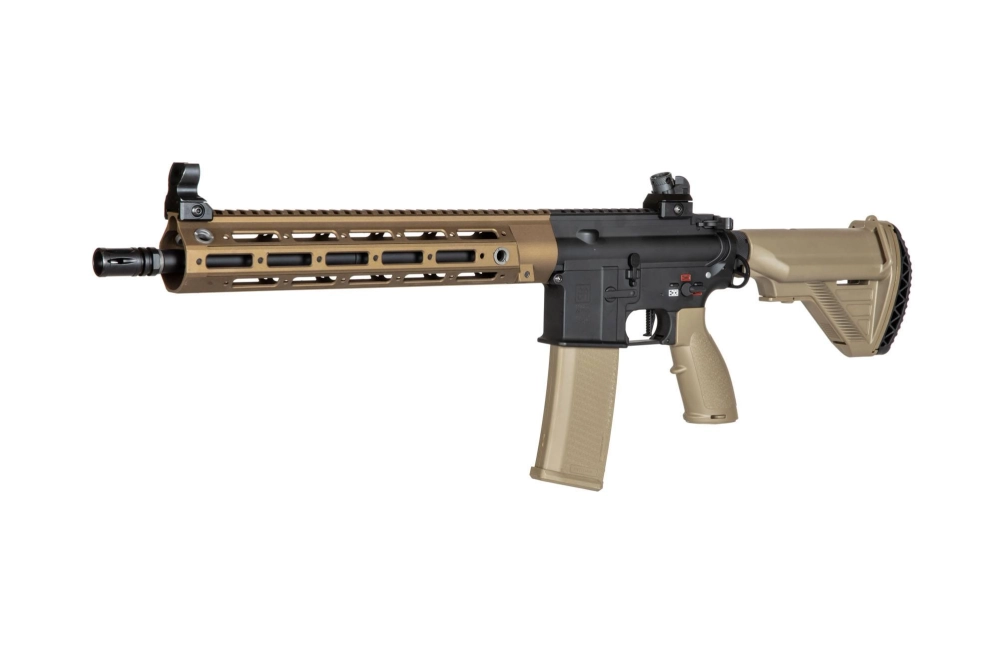

SA-H22 EDGE 2.0™ Carbine Replica - Chaos Bronze
- Made of: ZnAl + steel + plastic
- Length: 810-895mm
- Weight: 3090g
- Colour: Chaos Bronze
- Muzzle Velocity: ~380 / ~320 FPS
- Built-in GATE ASTER ™ chip
- Manufacturer: Specna Arms
SA-H22 EDGE 2.0™ Carbine Replica - Chaos Bronze
The EDGE 2.0 ™ series introduces a completely new quality to the Specna Arms replica family, adding new functionalities and innovations to the tried and tested design. As a result, Specna Arms EDGE 2.0 ™ carbines offer an exceptional high level of craftsmanship and technical advancement straight out of the box.
What distinguishes EDGE 2.0 ™ from the previous version?
- GATE ASTER ™ chip - Solar ™ Trigger trigger
- Helium ™ Flat Hop bucking
- High Torque engine
- ESA2 ™ quick spring change system

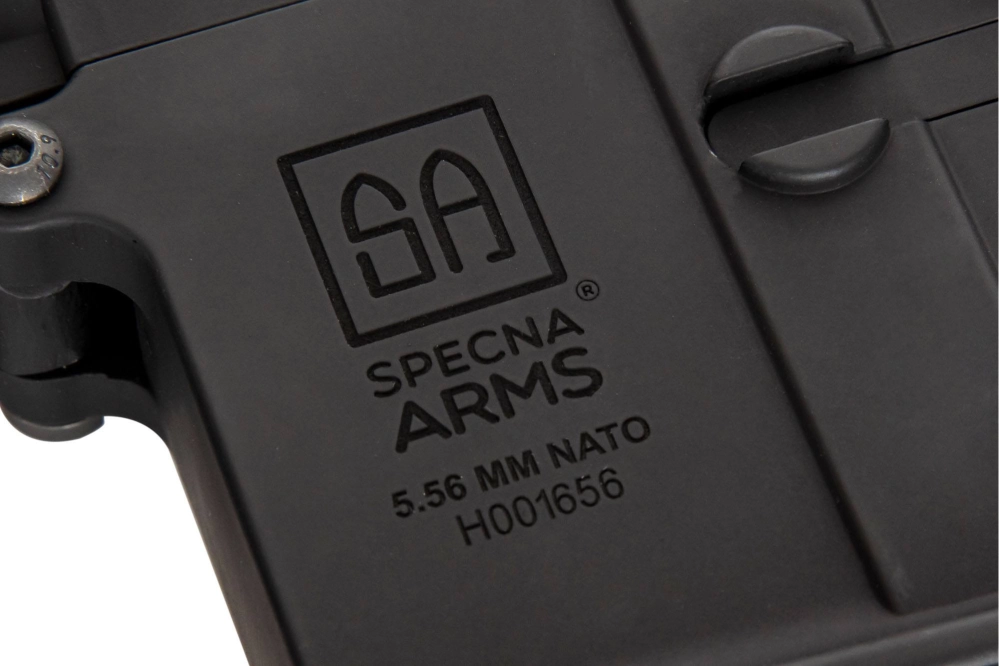

Each element of the replica was carefully made and fitted with great attention to every detail, in addition to the finish of the body,Nano Coating was used to prevent wear and tear. The body features deeply engraved Specna Arms markings and an individual serial number with an additional hologram.

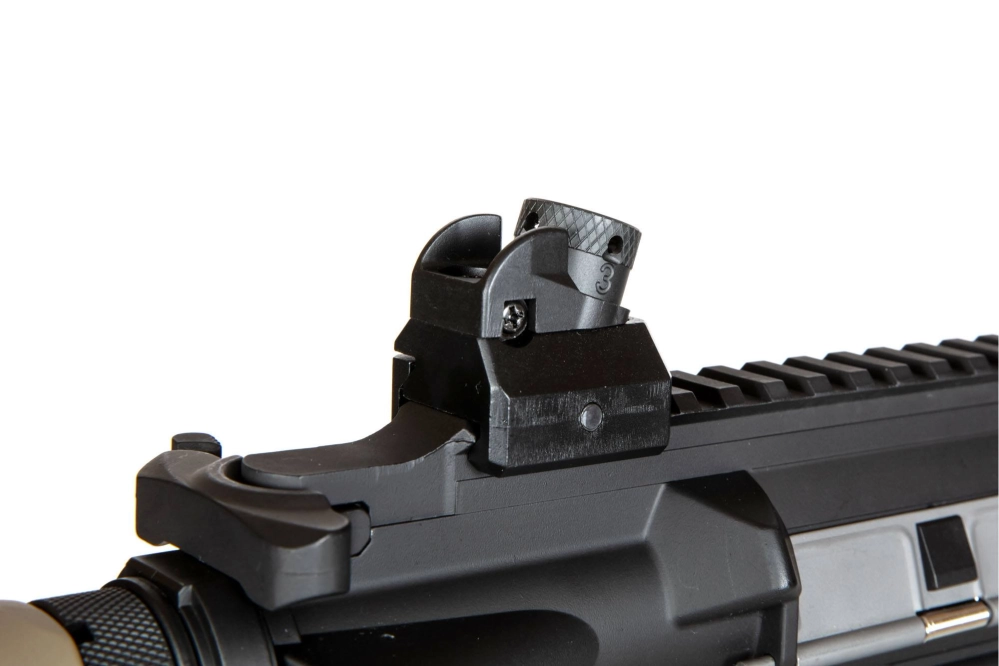

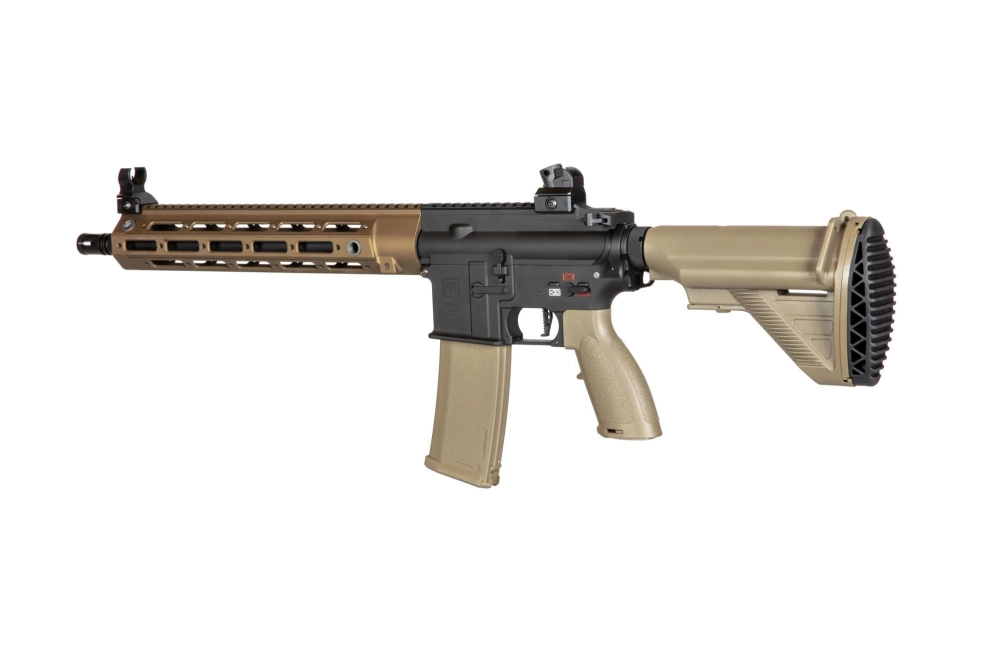

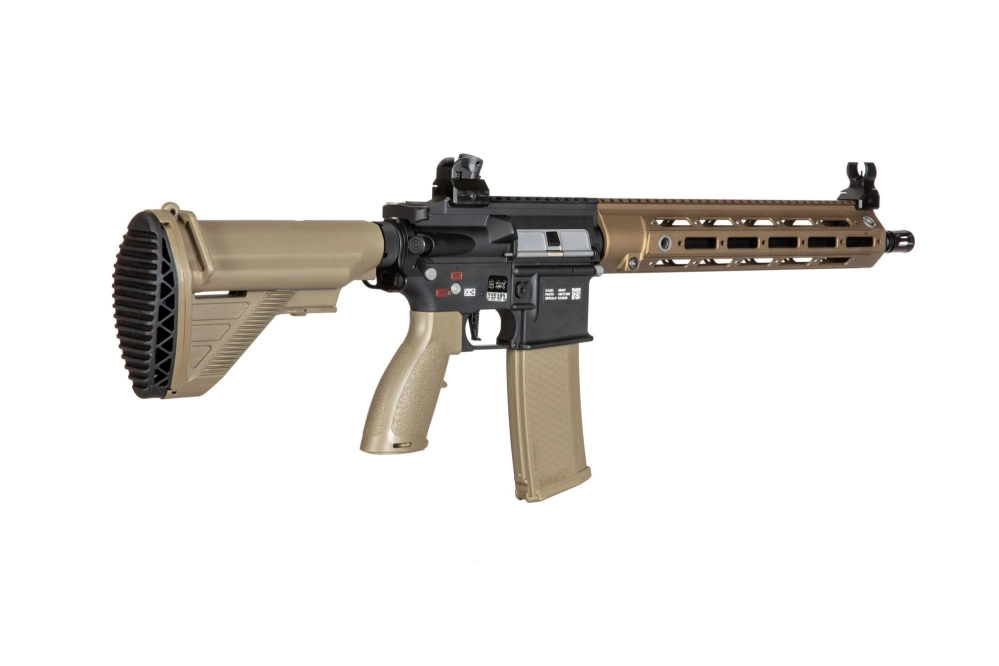

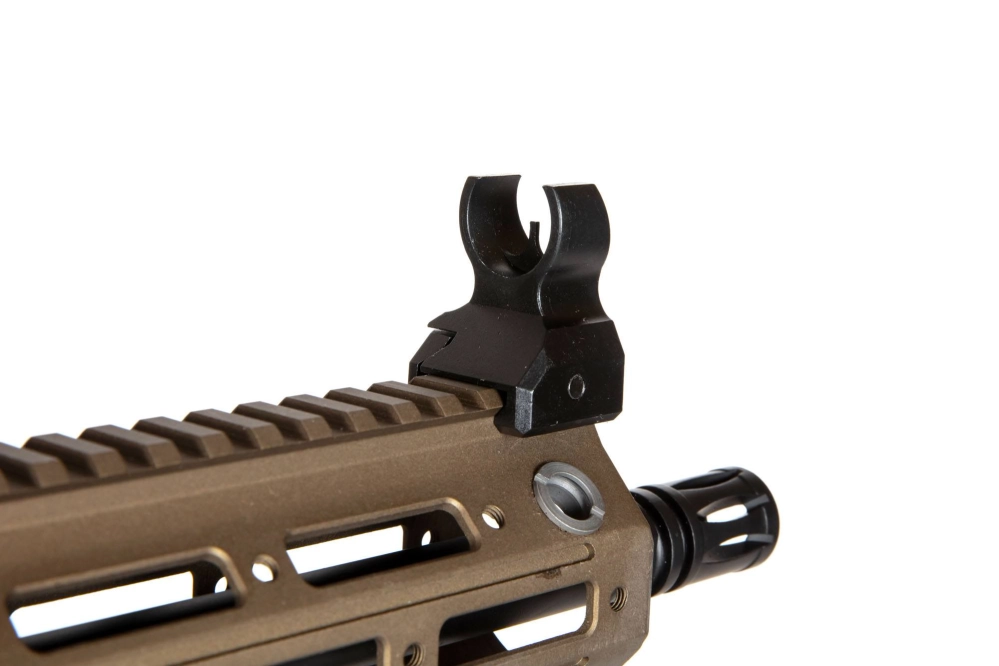

The SA-H22 carbine replica is equipped with a light Free Float front with an upper top rail. On the sides and on the bottom of the front, there are openings to which sections of RIS rails can be mounted for mounting all kinds of tactical accessories - flashlights, lasers or grips. The barrel of the replica is ended with a muzzle device mounted on a 14mm CCW thread. Mechanical sights were placed on the top RIS rail.
The replica has a build in 6.03 mm diameter internal precision barrel, which will ensure perfect accuracy and precision of shots. A new type of rotary Hop-Up chamber is compatible with the precision barrel, which allows for more precise and stable adjustment of the BB’s precision and accuracy.
The Helium ™ Flat Hop bucking, which was installed in the replica, will improve the stability of the BB’s and make the shots even more accurate.
The replica features a quick spring change system, ESA2 ™. The system allows for a quick and efficient adjustment of the replica's power to the requirements in the field of play, without the need of tool usage - just unscrew the stock guide to reveal the access to the spring, without having to remove or disassemble the gearbox.
The advantages of the ESA2 ™ system cannot be overestimated. The ESA2 ™ system allows you to quickly, with little to no effort change the main spring, and thus adjust the muzzle velocity of the replica to the requirements of the game organizer. This guarantees an ideal compromise between the effectiveness of firing your shots and your own safety and the safety of other players. The whole set also includes a second M90 main spring, which is perfect for indoor games.
The ESA2 ™ system is covered by the European Patent No. 007422159-0001
The heart of the replica is the ORION gearbox based on a reinforced chassis and equipped with the main spring release function. The replica straight out of the box has a number of very high-quality parts, thanks to which it maintains a very good work culture and is prepared for further tuning. ORION Gearbox is made to work with M140 springs. Inside the replica there are such elements as:
- reinforced polymer piston made of steel
- light, polymer, double-sealed piston head with bearings
- aluminum, sealed nozzle
- aluminum, double sealed cylinder head
- a spring guide with bearings
- a set of steel gears
- 8mm ball-bearing
The replica also uses a powerful and efficient High Torque motor equipped with strong neodymium magnets. The motor has a 22TPA (Turn Per Arm) winding and can easily handle springs stronger than those included in the set.

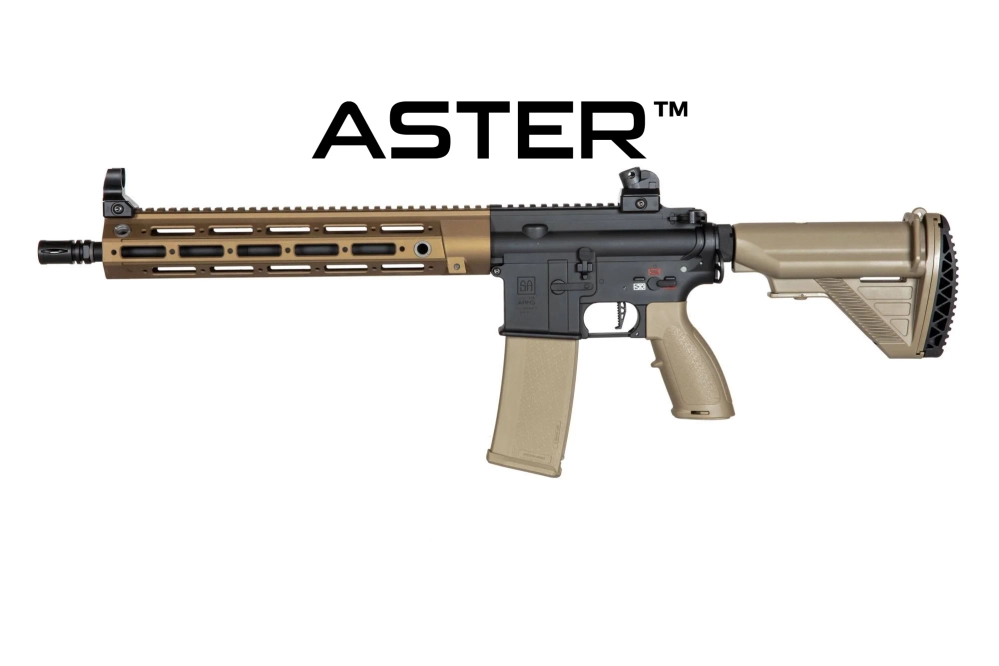

The ASTER ™ system is the little brother of the well-known TITAN ™ unit. This fourth generation of AEG control systems has been designed for the majority of electric replicas equipped with the V2 gearbox, including those that are heavily tuned. ASTER ™ will allow you to achieve maximum reliability at an affordable price. This system is characterized by an extremely favorable price-performance ratio.
Thanks to the ASTER ™ system, you can improve the replica by replacing the contacts with an advanced controller equipped with innovative optical sensors, which offers up to 250 trigger sensitivity settings. Quick response to the trigger and many other useful functions will allow you to gain an advantage on the airsoft battlefield. A smart eletric fuse protects the battery, motor and controller, even with reverse battery connection. This feature, coupled with the optical sensors, make ASTER ™ the most durable drop-in chip on the market today.
ASTER ™ gives you new possibilities:
- protection against battery reverse polarity
- innovative optical sensors
- 250 trigger sensitivity settings
- possibility of configuration using the replica's trigger or the GATE Control Station application
- built-in RGB LED for easy system programming
- premium functionality at a fair price

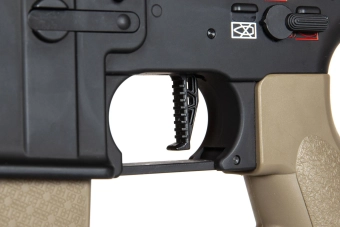

The EDGE 2.0 ™ replica series has a dedicated trigger, called the Solar ™ Trigger that works perfectly with the sensors of the ASTER ™ system, offering unprecedented sensitivity and precision. The new Specna Arms trigger is licensed from the Gate Quantum Trigger ™.
Note! Some functions of the ASTER ™ system are available in the GCS (Gate Control Station) application, which requires USB-Link (not included - purchased separately).
Full system description: https://www.gatee.eu/pl/produkty/aster/ast2-pl
ASTER ™ user manual: https://www.gatee.eu/download/aster-v2-quickstart.pdf
The box with the replica includes two S-MAG mid-cap magazines with a capacity of 125 BB’s each. The S-MAG is an exclusive polymer magazine designed by Specna Arms. The characteristic texture of the Specna Arms logo on the magazines is something noteworthy. S-mag ensures trouble-free feeding of BB’s, even at high ROF.
The set does not include a battery or a charger.

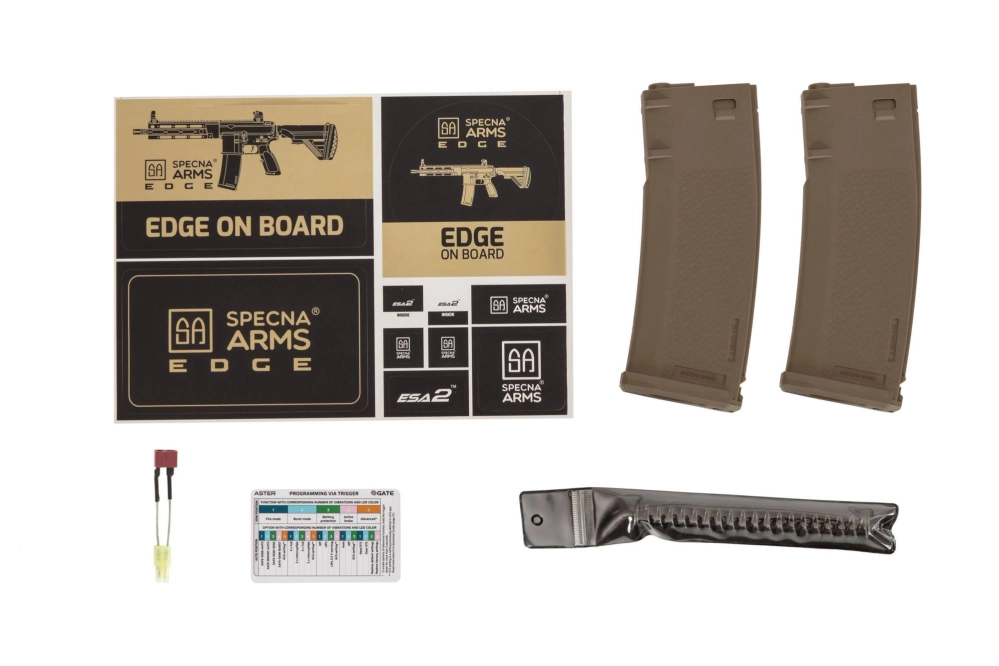

The set includes:
- the replica - 2 x S-MAG mid-cap magazine
- additional M90 main spring
- user manual - certificate
- GATE ASTER ™ diagnostic card
NiCd
rechargeable battery is characterized by high efficiency
current-carrying capacity, but there are disruptive effect on memory.
Should be unloaded and loaded in the full cycle, ie, it is recommended
to fully discharge, and after unloading must charge the battery
immediately without leaving it for a long time in a discharged state.
NiMH batteries have a higher self-discharge over time and shorten the
life - on the other hand, they earn about 30% more capacity.
Blow back is a simulation system of the cocking lever - it imitates the work of it as the equivalent sharp. This system raises the realism and adds a lot more experience during shooting.
It is the spped of bb, while its leaving the innerbarrel of replica. This speed is measured in FPS (Feet Per Second).
1 FPS = 0,3 m/s
1 J = 99 m/s
1 J = 326,7 FPS
Indications v2, v3, v6 does not mean the level of advance, but only shape of gearbox skeleton which was used and selected by the manufacturer depending on the capabilities of the body of the replica. For example, a models of the M4/M16 family, MP5, have a v2 gearbox, while the AK family have gearbox v3.
Hop-Up system is used for overclocking bb during the shot (putting it in rotation), through which, it extends its flight path. Acting laws of physics make that bb lift up, while the gravitational force take it down. Appropriate adjustment of Hop-Up, will compensate for these two factors, which result in long and straight flight for longer distance and be greater focus shot (to improve accuracy).
