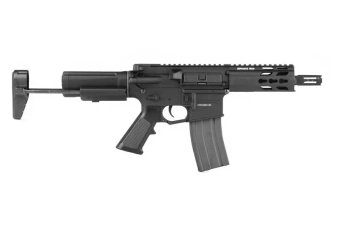

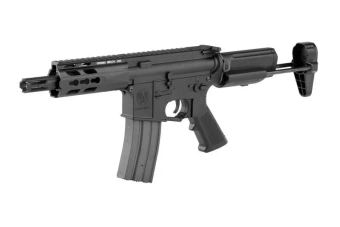

Trident PDW IT Replica
- Material: Aluminum + Polymer
- Length: 527-610mm
- Weight: 2500g
- Colour: Black
- Muzzle Velocity: ~290 FPS
- Engine: Electric
- Manufacturer: Krytac
Trident PDW IT Replica
Trident PDW is the most compact carbine in the Krytac family, designed in order to achieve maximum maneuverability in CQB scenarios. The replicas is equipped with a long, 5,5-inch outer barrel and a 5-inch free float Defiance TR105 KeyMod handguard. An aluminum receiver with mat finish bearing Krytac markings is compatible with standard AR/M4 (STANAG) magazines. Its other advantages are double-sided fire mode selector and an operational bolt-catch, which simplifies gaining access to the Hop-Up system of the replica. The rotary Krytac Hop-Up system features 15 numbered settings, which allow to precisely select the setting of a BB with regard to the current needs of the user. The replica’s battery is stored inside a unique buffer tube, which was enlarged compared to the traditional construction - which allows for the use of a larger sized battery. Trident PDW features an adjustable, 2-position stock.
Inside of this replica is a reinforced V2 gearbox mounted on 8mm bearings. The gearbox is equipped with an integrated MOSFET module that controls the operation of electronics and the trigger mechanism. The shape of the gearbox’s skeleton was designed in such a way so as to maximally safeguard the construction from cracks. Additionally, the skeleton features an inspection window on the left side, which allows to examine the correctness of the system’s operation and its maintenance (oiling) without having to disassemble the gearbox.
Another prized feature of a Krytac replica is the Quick Spring Release system - a modular slide allows for the change of the main spring without having to disassemble the skeleton. The piston in a Krytac replica was made from a very durable and light polymer with 4 metal teeth. The cylinder head has an enlarged rubber shock-pad, which optimizes the operation of the system and absorbs the energy that arises after impact of the piston. The material from which the gears were made of was specially selected in order to achieve maximum durability. Hardness tests according to the Rockwell scale indicated much higher much higher than normal results for Krytac gears. The entirety is powered by a efficient high-torque motor capable of even up to 30 000 turns per minute.
Trident PDW introduces a significant breath of fresh air to a series of replicas based on the AR15 construction by offering an excellent design, superb craftsmanship and highest degree of usage comfort.
The additional accessories seen in some pictures are not part of the set. The full list of what the set contains can be found below.
The set does not include a battery or a charger.
The set includes:
- replica
- magazine
- manual
NiCd
rechargeable battery is characterized by high efficiency
current-carrying capacity, but there are disruptive effect on memory.
Should be unloaded and loaded in the full cycle, ie, it is recommended
to fully discharge, and after unloading must charge the battery
immediately without leaving it for a long time in a discharged state.
NiMH batteries have a higher self-discharge over time and shorten the
life - on the other hand, they earn about 30% more capacity.
Blow back is a simulation system of the cocking lever - it imitates the work of it as the equivalent sharp. This system raises the realism and adds a lot more experience during shooting.
It is the spped of bb, while its leaving the innerbarrel of replica. This speed is measured in FPS (Feet Per Second).
1 FPS = 0,3 m/s
1 J = 99 m/s
1 J = 326,7 FPS
Indications v2, v3, v6 does not mean the level of advance, but only shape of gearbox skeleton which was used and selected by the manufacturer depending on the capabilities of the body of the replica. For example, a models of the M4/M16 family, MP5, have a v2 gearbox, while the AK family have gearbox v3.
Hop-Up system is used for overclocking bb during the shot (putting it in rotation), through which, it extends its flight path. Acting laws of physics make that bb lift up, while the gravitational force take it down. Appropriate adjustment of Hop-Up, will compensate for these two factors, which result in long and straight flight for longer distance and be greater focus shot (to improve accuracy).
