VFC SCAR-L/H CNC SV Aluminum Hop-Up Chamber

VFC SCAR-L/H CNC SV Aluminum Hop-Up Chamber

A highest-quality Hop-Up chamber intended for tuning of VFC SCAR-L/H carbine replicas. Rotary chambers by Maxx Model Products are dedicated for the most demanding of players and offer an unparalleled thus far on the market quality of finish as well as perfect operation of the HU system in a replica.

Specification:

- precisely-made form a block of aerospace aluminum using CNC technology
- ensured compatibility and tightness with VFC SCAR-L/H carbine replicas
- rotary adjustment knob
- designed from scratch levers and concave nubs that provide issue-free operation with standard buckings and R-hop
- removable brass Slot Pin for configuring and maintenance
- compatible with 21 mm and 21.25 mm long nozzles in SCAR-L and with 38.50 mm as well as 38.75 mm long nozzles in SCAR-H replicas.
- full compatibility with majority of soft and hard HU buckings available on the market maintaining zero FPS drops and without any BBs falling out
- features a special CNC Delrin Locking C-Clip, that prevents vibrations and movement of the barrel
- special construction that provides ideal and steady position in the replica
- possibility of attaching a BB-illuminating module (not included in the set)
- possibility of attaching a sensor that stops the motor / HPA engine once the magazine has been emptied (not included in the set)

SPECIFICATION:

Length: 48.35 mm
Height: 27 mm
Hub Outer Diameter (for the gearbox): any
Hub Outer Diameter (for the external barrel): min 12 mm
Hub Inner Diameter (for the nozzle): min 11 mm - max 8.3 mm
Feeder Outer Diameter (for the magazine): any
Feeder Length (for the magazine): max any
Material: Aluminum 6061

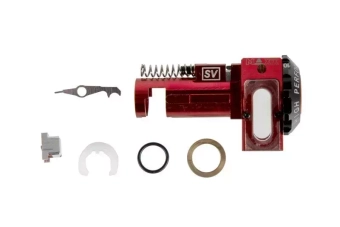

The set includes:

1 x chamber
2 x transparent, vinyl cover
1 x aluminum CNC Standard-Hop arm
1 x aluminum CNC R-Hop arm
1 x silicon Standard-Hop Nub Damper
1 x silicon Rubber R-Hop Nub Damper
1 x aluminum, precise CNC Hop Concave Nub 4.5 mm
1 x aluminum, precise CNC R-Hop Concave Nub 6 mm
1 x brass, rifled CNC Slot Pin
1 x CNC Delrin Locking C-Clip
1 x brass CNC Barrel Spacer
1 x brass O-ring Spacer Holder
1 x steel compression spring
