War Sport LVOA-C Combat Grey Assault Rifle Replica
- Material: Aluminum + polymer
- Length: 825 - 910 mm
- Weight: 3135 g
- Color: Combat Grey
- Muzzle Velocity: ~400 FPS
- Engine: Electric
- Manufacturer: Krytac

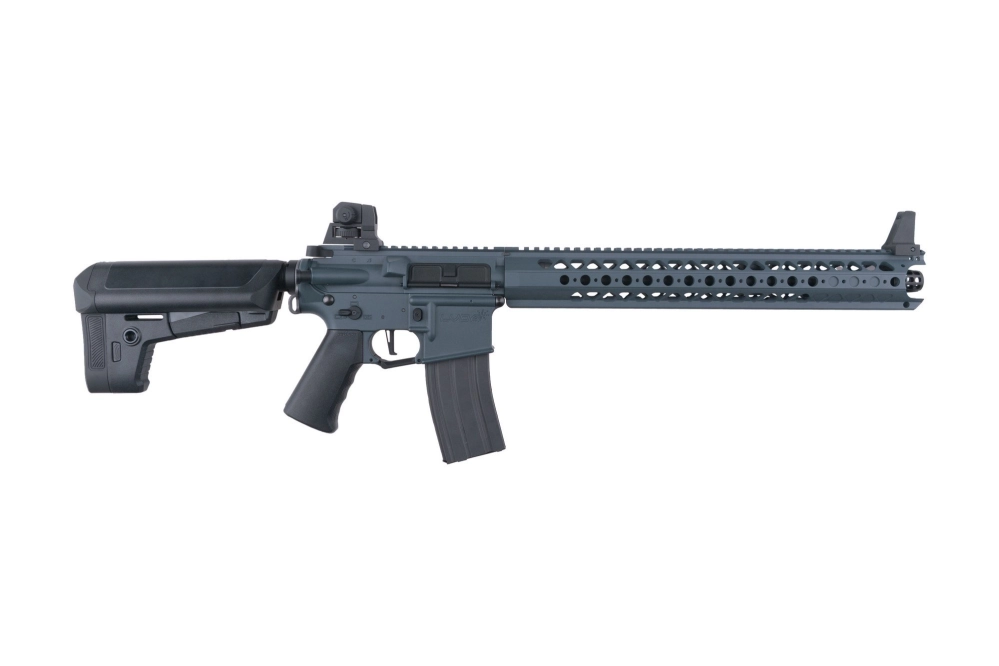

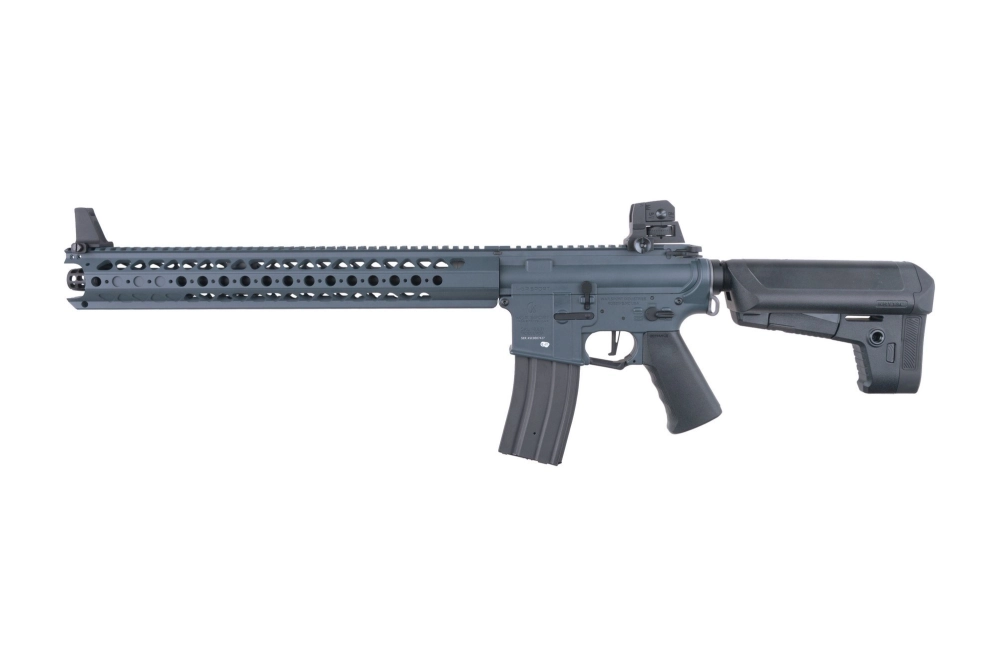

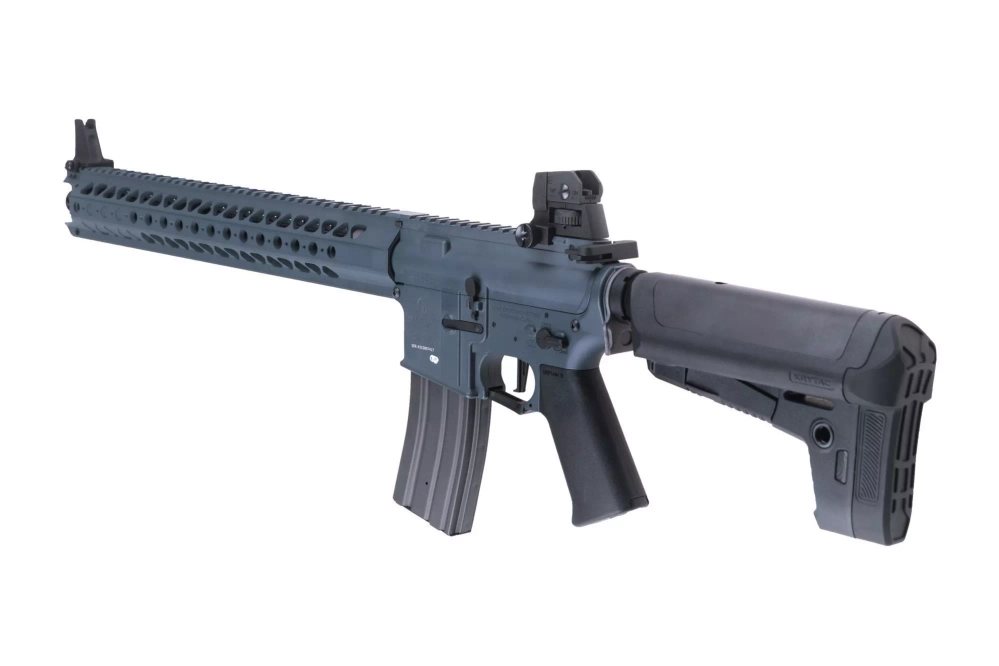

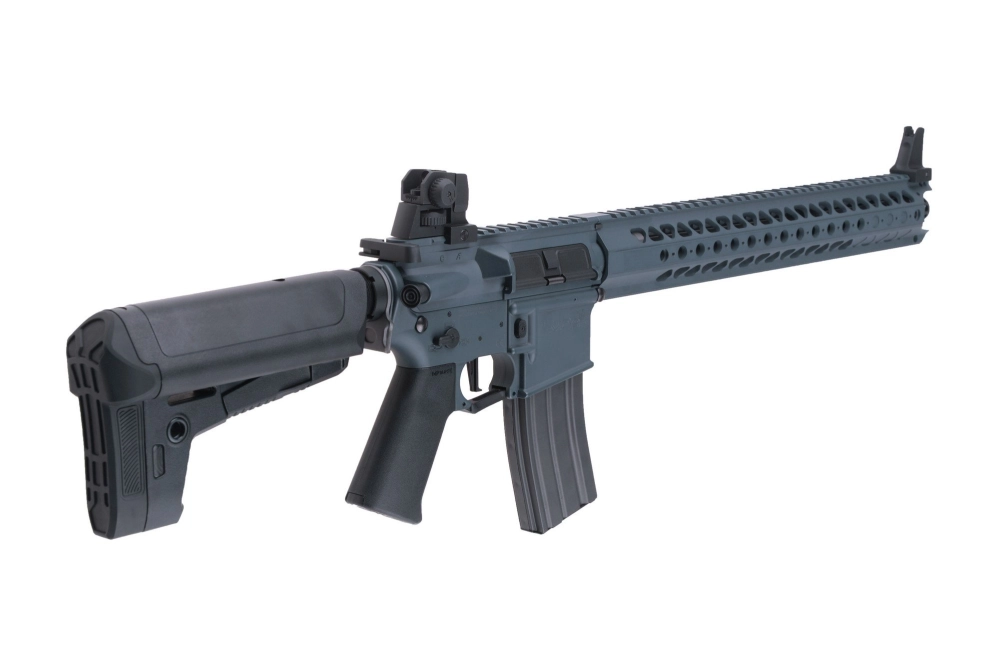

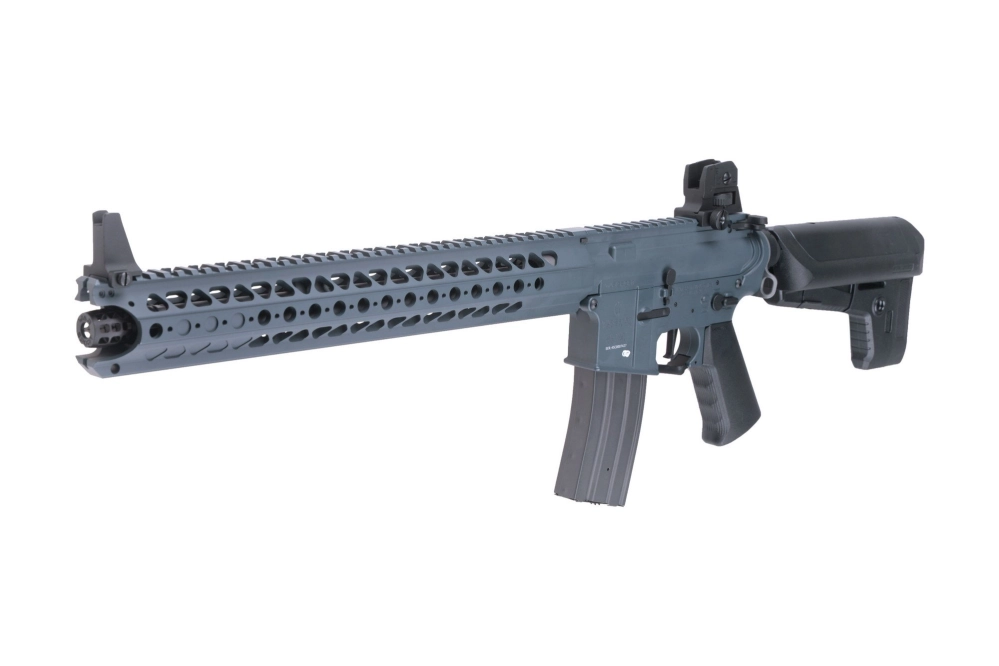

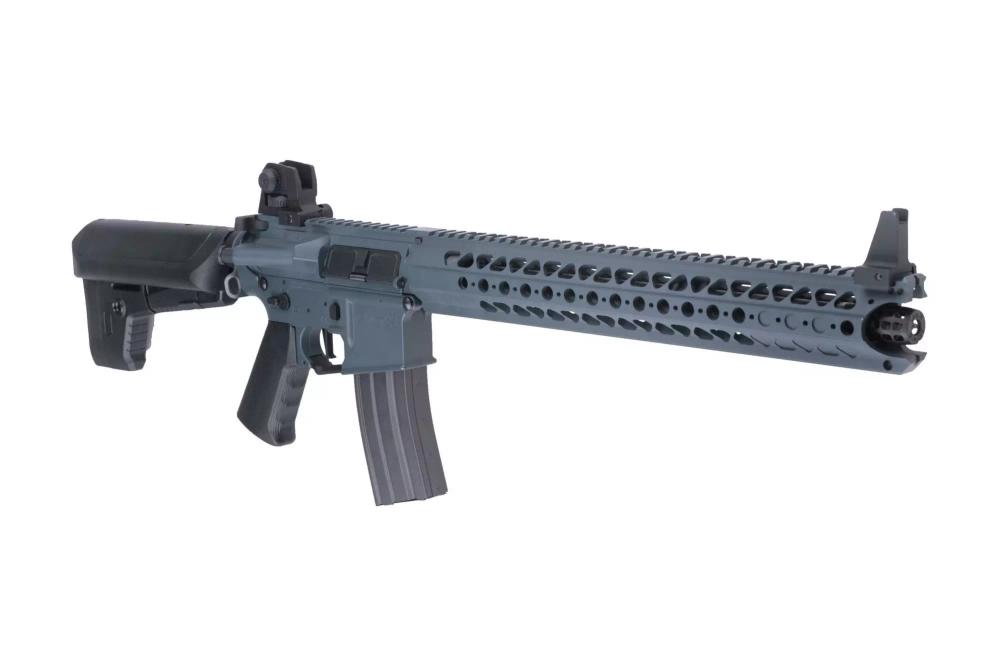

War Sport LVOA-C
Combat Grey Assault Rifle Replica
A licensed assault rifle replica by War Sport
LVOA-S in Combat Grey color. The replica features a long Licensed War Sport Manufacturing® LVOA-S rail. An
aluminum receiver with matte finish bears War Sport markings and is compatible with standard AR/M4 (STANAG)
magazines. Its other advantages are a double-sided fire mode selector and an
operational bolt catch, which simplifies gaining access
to the Hop-Up system of the replica. The rotary Krytac
Hop-Up system features 15 numbered settings, which allow to precisely
select the setting of a BB spin with regard to the current needs

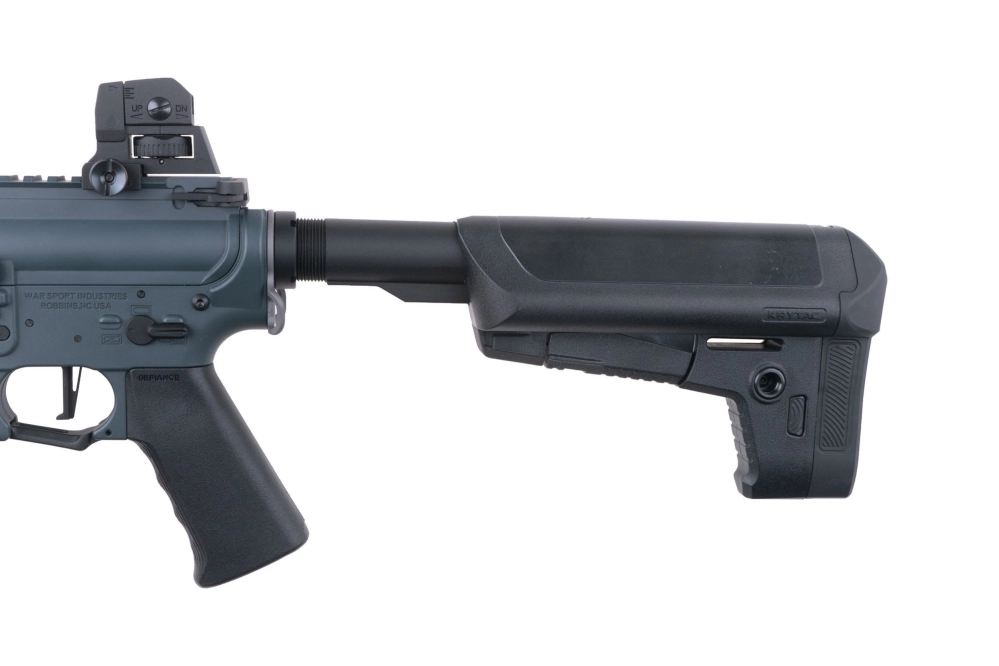

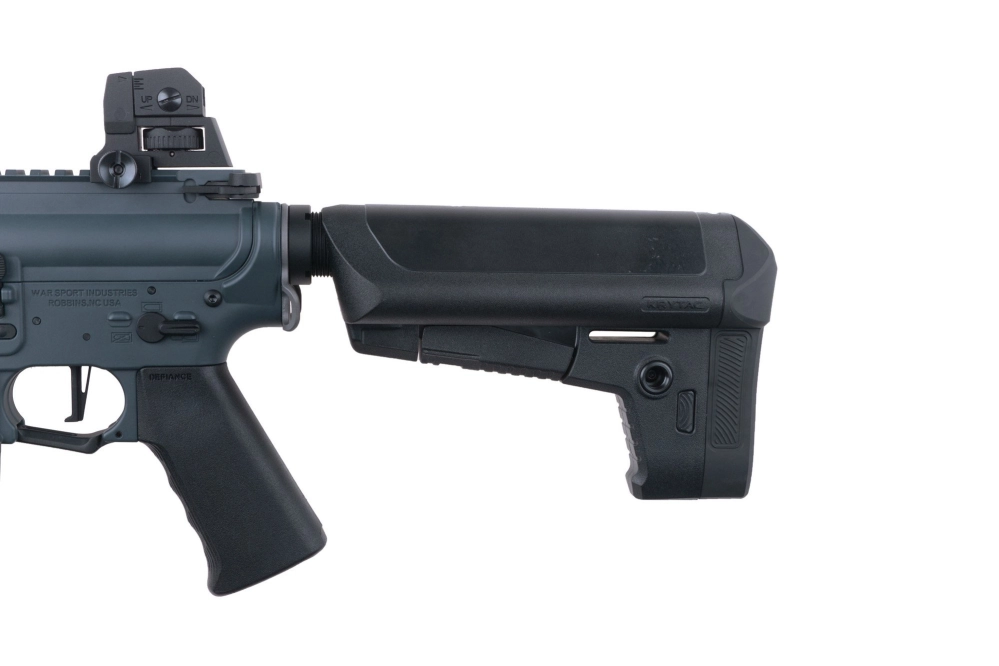

of the User. The replica features a telescopic stock with an adjustable
length, inside of which is stored a battery in several possible configurations.
The stock also features mounts for the attachment of a tactical sling,
including 2 QD swivels - quick detach.
Inside of this replica is a reinforced V2 gearbox mounted on 8 mm
ball bearings. The gearbox is equipped with an integrated
MOSFET module that controls the operation of electronics and the trigger mechanism. The shape of the gearbox’s frame was
designed in such a way so as to maximally safeguard the construction
from cracking. Additionally, the gearbox frame features an inspection window on the left
side, which allows examining the correctness of the system’s operation and its
maintenance (oiling) without having to disassemble the gearbox.
Another prized feature of a Krytac replica is the Quick
Spring Release system -
a modular guide that allows for the change of the main spring without having to disassemble the gearbox
frame. The cylinder head has an
enlarged rubber shock-pad, which optimizes the operation of the system
and absorbs the energy that arises after the impact of the piston. The material
which the gears were made of was specially selected in order to achieve maximum
durability. Hardness tests according to the Rockwell scale indicated a much higher than normal results for Krytac gears. The entirety is powered by an efficient high-torque motor capable of
even up to 30 000 turns per minute.
The set does not include a battery or a charger.
The set includes:
- replica
- magazine
- cleaning rod
- RIS rail

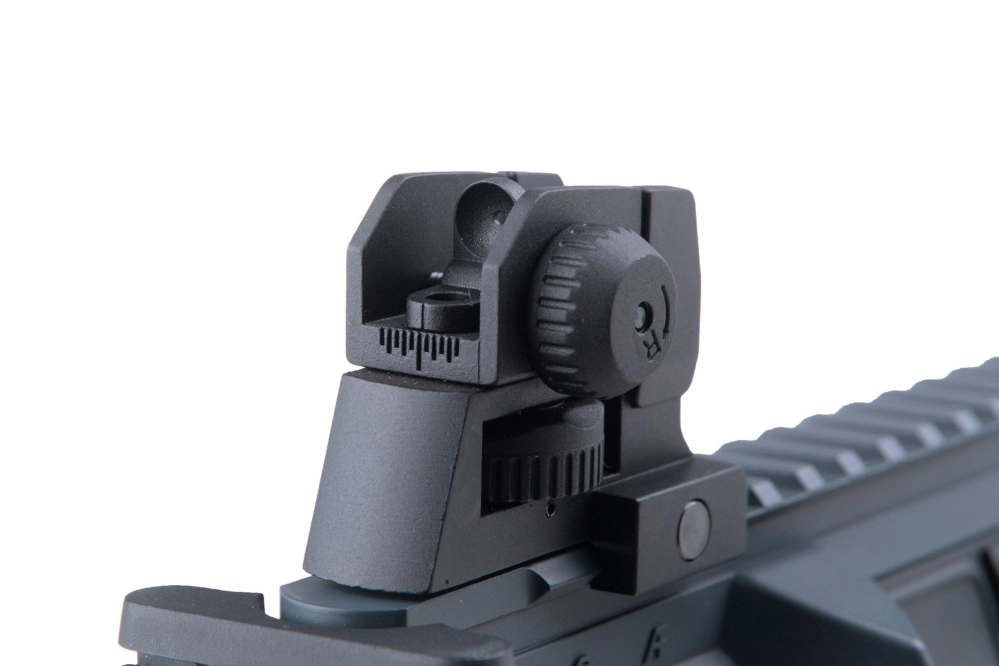

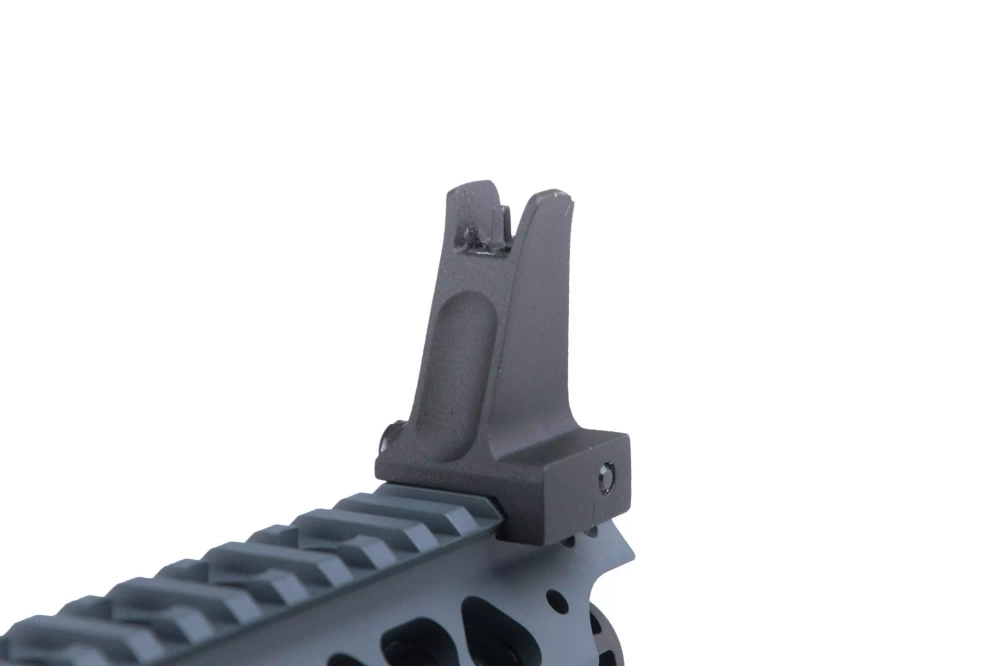

- fixed iron sights
- User’s manual
NiCd
rechargeable battery is characterized by high efficiency
current-carrying capacity, but there are disruptive effect on memory.
Should be unloaded and loaded in the full cycle, ie, it is recommended
to fully discharge, and after unloading must charge the battery
immediately without leaving it for a long time in a discharged state.
NiMH batteries have a higher self-discharge over time and shorten the
life - on the other hand, they earn about 30% more capacity.
It is the spped of bb, while its leaving the innerbarrel of replica. This speed is measured in FPS (Feet Per Second).
1 FPS = 0,3 m/s
1 J = 99 m/s
1 J = 326,7 FPS
Indications v2, v3, v6 does not mean the level of advance, but only shape of gearbox skeleton which was used and selected by the manufacturer depending on the capabilities of the body of the replica. For example, a models of the M4/M16 family, MP5, have a v2 gearbox, while the AK family have gearbox v3.
Hop-Up system is used for overclocking bb during the shot (putting it in rotation), through which, it extends its flight path. Acting laws of physics make that bb lift up, while the gravitational force take it down. Appropriate adjustment of Hop-Up, will compensate for these two factors, which result in long and straight flight for longer distance and be greater focus shot (to improve accuracy).
