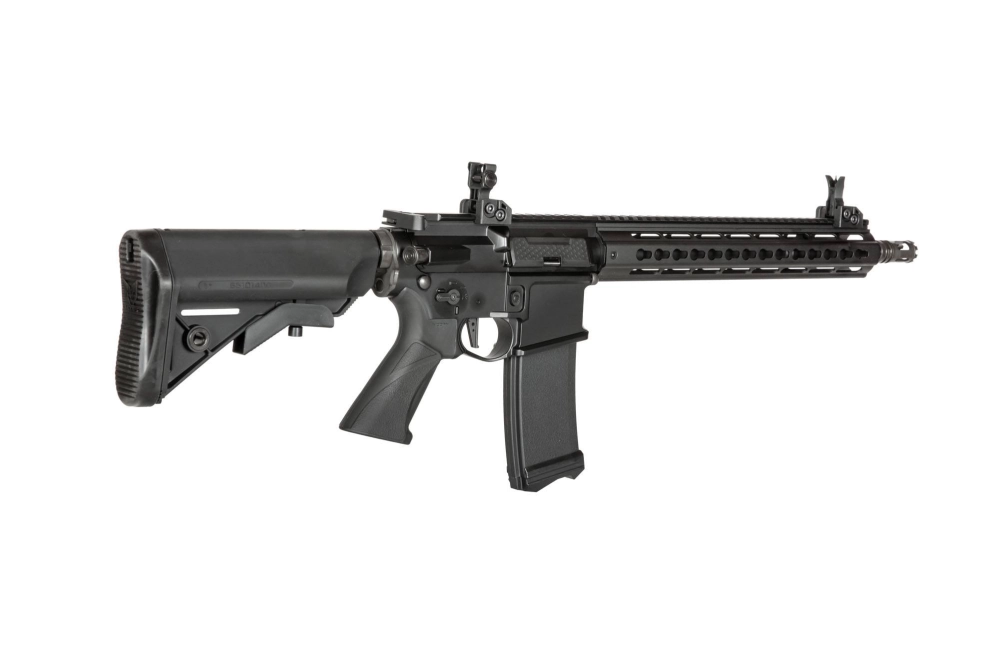

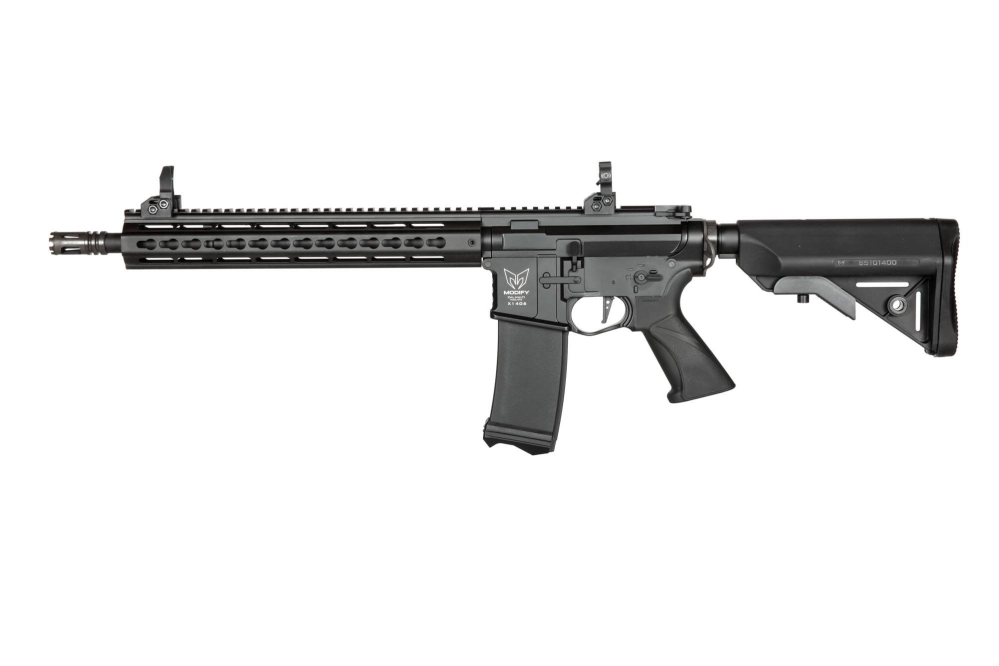

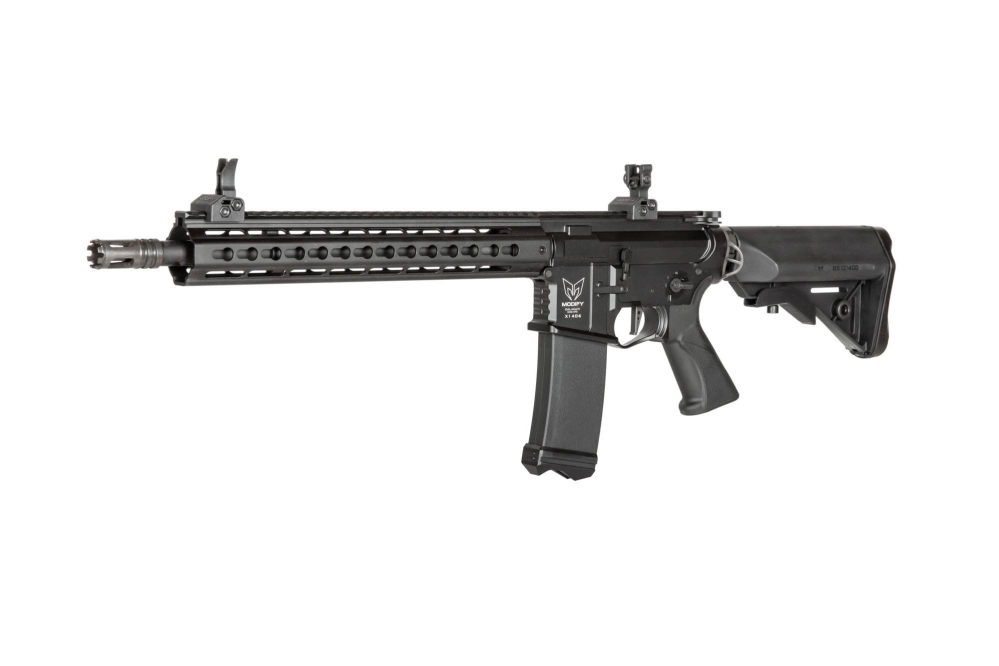

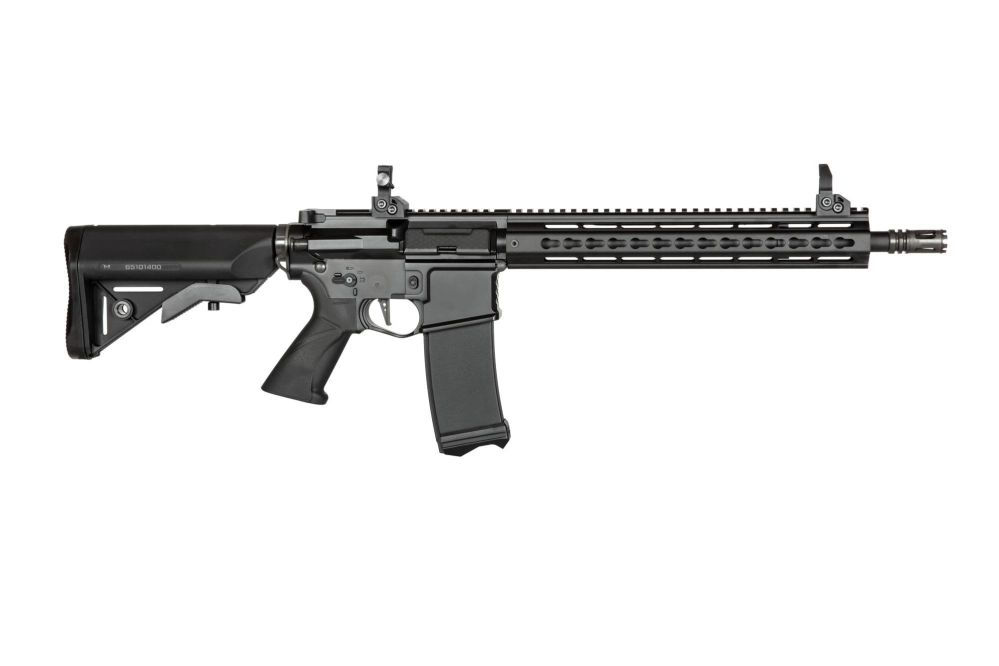

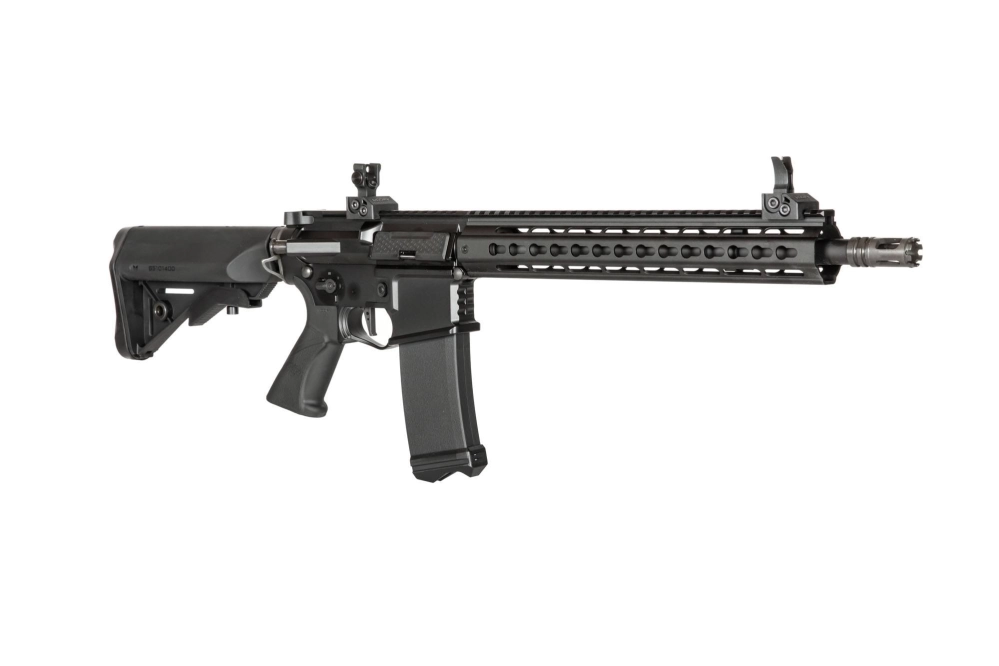

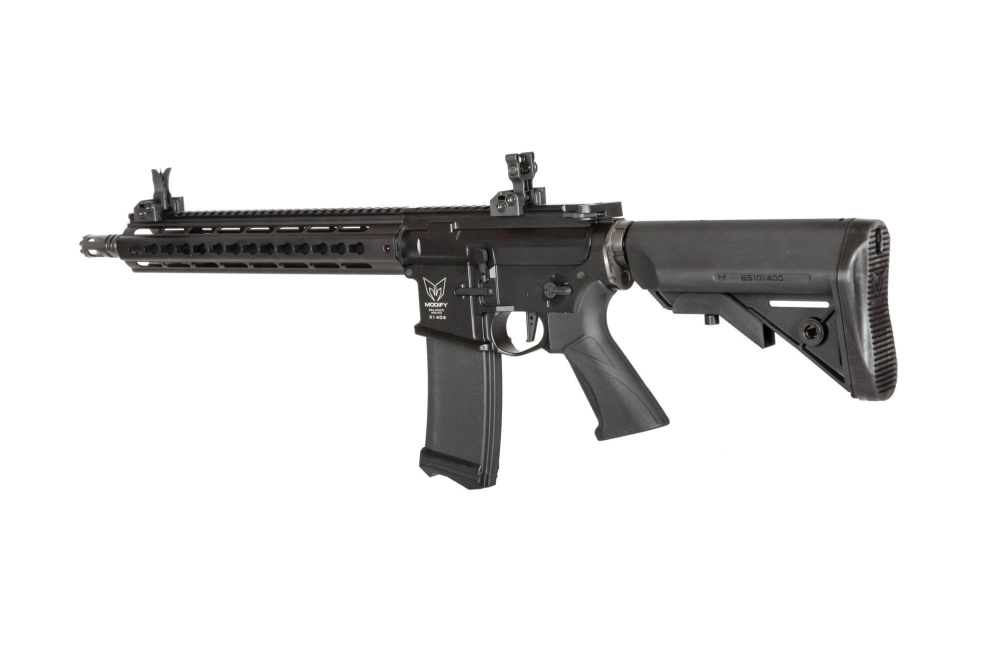

XTC-G1 Carbine Replica
- Material: Aluminium + metal + steel + composite material
- Weight: 2900g
- Length: 805-889mm
- Colour: Black
- Muzzle Velocity: ~390 / ~360 FPS
- Engine: Electric
- Manufacturer: Modify
Modify-Tech is a renowned company with over 50 years of tradition that specializes in the manufacture of high quality spare parts, tools, accessories. It successfully operates on the airsoft market offering internal parts, tuning sets and many more. The featured electric replica of an assault rifle is another, phenomenal product from Modify in the ASG area. Rest assured: XTC-G1 can be easily placed among the top shelf electric replicas available on the market.
Parts made from aerospace aluminum with the use of CNC technology include: piston head, cylinder head and the cylinder itself. Steel parts were also made with the use of CNC technology and these include: 14,5 inch outer barrel, trigger, set of gears, flash hider, tactical sling swivels. Remaining parts such as the Billet Style receiver, KeyMod handguard, Picatinny rail in 1913 standard or stock slide were made from a high quality alloy.Double-sided, 45 degree fire mode selector allows for switching between different modes with both the left and right hand. It is a very comfortable solution and speeds up the operation of the selector.
Muzzle velocity adjustment system is connected with fast spring exchange system and makes the replica very versatile. The muzzle velocity can be lowered from ~390 FPS to ~360 FPS with a single 30 degree turn of the screw at the jointing of the receiver and the stock slide.
Wide-Bore barrel (6.1mm caliber) increases the range of the replica – due to a wide diameter of the barrel, BBs do not bounce off the inside of the barrel, which causes them to fly considerably farther than in the case of other replicas with similar muzzle velocity.
Fully operational bolt-catch mechanism will simplify the adjustment of Hop-Up, which was designed with precise calibration in mind. The tightness of the entire Hop-Up system has also been increased to the maximum.

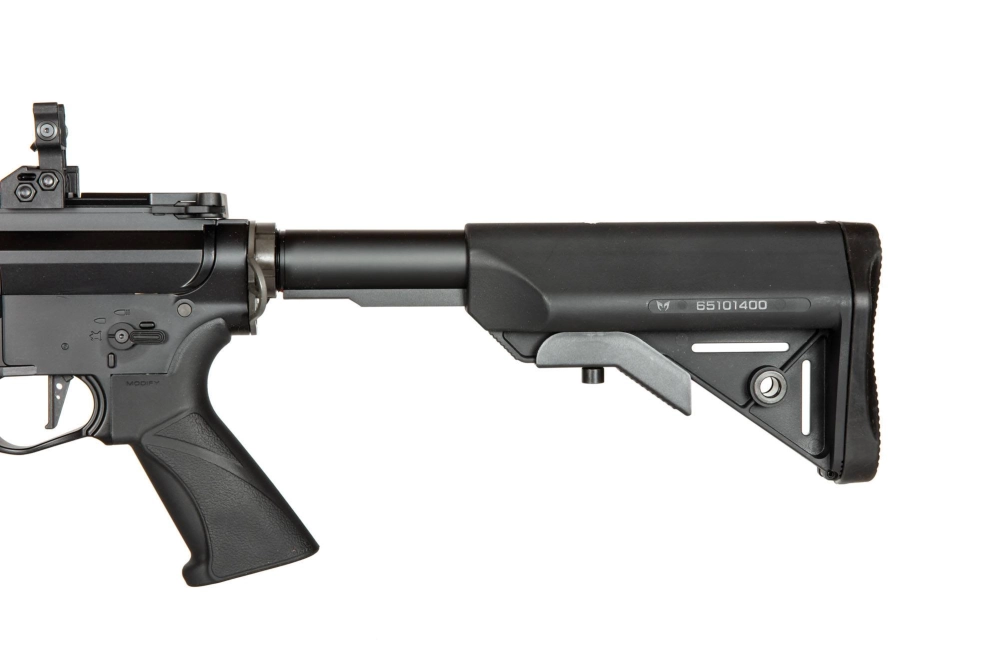

Ergonomic, new type pistol grip and stock were made from a reinforced nylon polymer. The stock also has metal elements. Six-position adjustment is very pleasant and operates smoothly and seamlessly. What is important – is that instead of traditional wiring led inside the stock, a circuit of in-built connectors has been implemented in order for the cables not to obstruct the process of putting batteries inside the stock slide and, most of all, FPS regulation and making use of fast spring exchange system.
The replica’s gearbox is a true masterpiece. It contains a set of steel gears made with the use of CNC machines: durable and practically indestructible. Mounted on 8mm, ceramic, ball bearings. The piston with seven steel teeth High speed / Torque Ultra features an aerospace aluminum head. The pistol is placed in a cylinder also made from aerospace aluminum.
Included in the is a mid-cap, 190 BB magazine made from a glass fibre reinforced polymer.
The set includes:
- replica
- magazine
- manual
NiCd
rechargeable battery is characterized by high efficiency
current-carrying capacity, but there are disruptive effect on memory.
Should be unloaded and loaded in the full cycle, ie, it is recommended
to fully discharge, and after unloading must charge the battery
immediately without leaving it for a long time in a discharged state.
NiMH batteries have a higher self-discharge over time and shorten the
life - on the other hand, they earn about 30% more capacity.
Blow back is a simulation system of the cocking lever - it imitates the work of it as the equivalent sharp. This system raises the realism and adds a lot more experience during shooting.
It is the spped of bb, while its leaving the innerbarrel of replica. This speed is measured in FPS (Feet Per Second).
1 FPS = 0,3 m/s
1 J = 99 m/s
1 J = 326,7 FPS
Indications v2, v3, v6 does not mean the level of advance, but only shape of gearbox skeleton which was used and selected by the manufacturer depending on the capabilities of the body of the replica. For example, a models of the M4/M16 family, MP5, have a v2 gearbox, while the AK family have gearbox v3.
Hop-Up system is used for overclocking bb during the shot (putting it in rotation), through which, it extends its flight path. Acting laws of physics make that bb lift up, while the gravitational force take it down. Appropriate adjustment of Hop-Up, will compensate for these two factors, which result in long and straight flight for longer distance and be greater focus shot (to improve accuracy).
